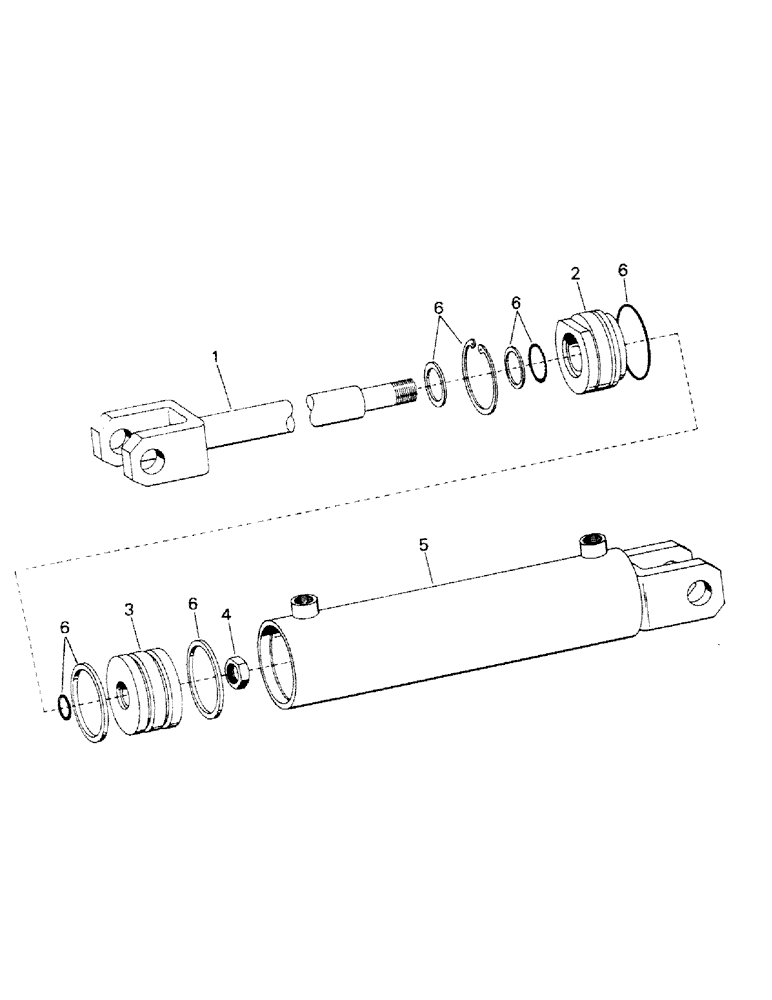

Запчасти Case IH STEIGER (08-17) - STEERING CYLINDER, OPTIONAL, USED WHEN NO-SPIN IS INSTALLED (07) - HYDRAULICS

18-1458

CYLINDER

ASSEMBLY, consists of ref. nos. 1-6

1шт.

1

18-1442

SHAFT

1шт.

2

18-1440

END GLAND

1шт.

3

18-1443

PISTON

1шт.

4

18-445

NUT, 1" - 14 NF

1шт.

5

18-1459

TUBE 3.5" ID, 3.875" OD

1шт.

6

18-1444

PLOW BOLT,#3, 7/8" - 9 x 2 3/4", Gr 2

SEAL KIT

1шт.
