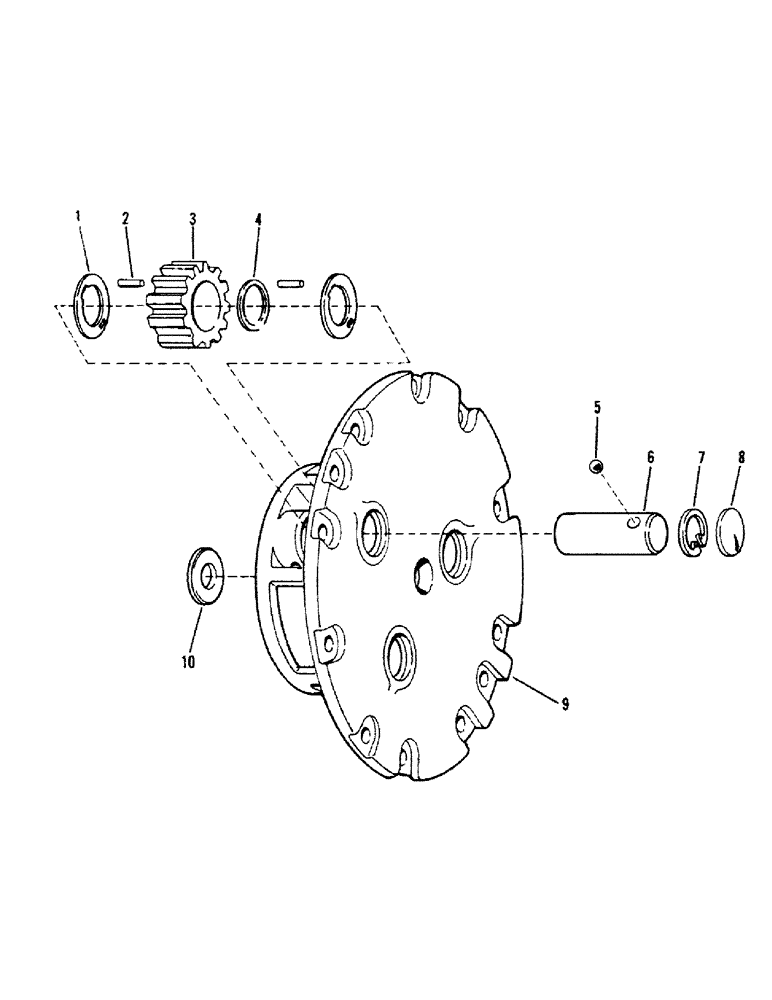

Запчасти Case IH STEIGER (04-63) - PLNET CARR ASS-CLRK, 1972 WC & SWC SN 8394-8552 (04) - Drive Train

1

16-565

WASHER

THRUST WASHER

6шт.

2

16-567

ROLLER

174шт.

3

16-566

GEAR, planet

3шт.

4

16-735

SPACER

NOT USED ON THIS MODEL

1шт.

5

16-195

LOCK

BALL

3шт.

6

16-570

SHAFT, planet

3шт.

7

16-571

LOCK KEY

SNAP RING

3шт.

8

16-572

PLUG, expansion

3шт.

9

16-573

CARRIER

1шт.

10

16-574

WASHER

THRUST WASHER

1шт.

1

16-732

THRUST WASHER, 1973-75 bc and swc, bc 2443-3280, swc 8630-9022

6шт.

2

16-734

ROLLER

1973-75 bc and swc, bc 2443-3280, swc 8630-9022

174шт.

3

16-733

GEAR

planet, 1973-75 bc and swc, bc 2443-3280, swc 8630-9022

3шт.

4

NOT ON THIS MODEL

1шт.

5

16-195

LOCK

BALL, 1973-75 bc and swc, bc 2443-3280, swc 8630-9022

3шт.

6

16-736

SHAFT, planet, 1973-75 bc and swc, bc 2443-3280, swc 8630-9022

3шт.

7

16-737

RING, SNAP

SNAP RING, 1973-75 bc and swc, bc 2443-3280, swc 8630-9022

3шт.

8

16-738

PLUG

expansion, 1973-75 bc and swc, bc 2443-3280, swc 8630-9022

3шт.

9

16-739

CARRIER

1973-75 bc and swc, bc 2443-3280, swc 8630-9022

1шт.

10

16-574

WASHER

THRUST WASHER, 1973-75 bc and swc, bc 2443-3280, swc 8630-9022

1шт.

1

16-769

THRUST WASHER, heavy duty standard on bc II 3281 and up, optional on earlier tractors

6шт.

2

16-770

ROLLER

heavy duty standard on bc II 3281 and up, optional on earlier tractors

186шт.

3

16-771

GEAR, planet, heavy duty standard on bc II 3281 and up, optional on earlier tractors

3шт.

4

16-772

SPACER, heavy duty standard on bc II 3281 and up, optional on earlier tractors

3шт.

5

16-773

LOCK

BALL, heavy duty standard on bc II 3281 and up, optional on earlier tractors

3шт.

6

16-774

SHAFT

planet, heavy duty standard on bc II 3281 and up, optional on earlier tractors

3шт.

7

16-775

SNAP RING, heavy duty standard on bc II 3281 and up, optional on earlier tractors

3шт.

8

16-776

PLUG

expansion, heavy duty standard on bc II 3281 and up, optional on earlier tractors

3шт.

9

16-777

CARRIER, planet, heavy duty standard on bc II 3281 and up, optional on earlier tractors

1шт.

10

16-574

WASHER

THRUST WASHER, heavy duty standard on bc II 3281 and up, optional on earlier tractors

1шт.
