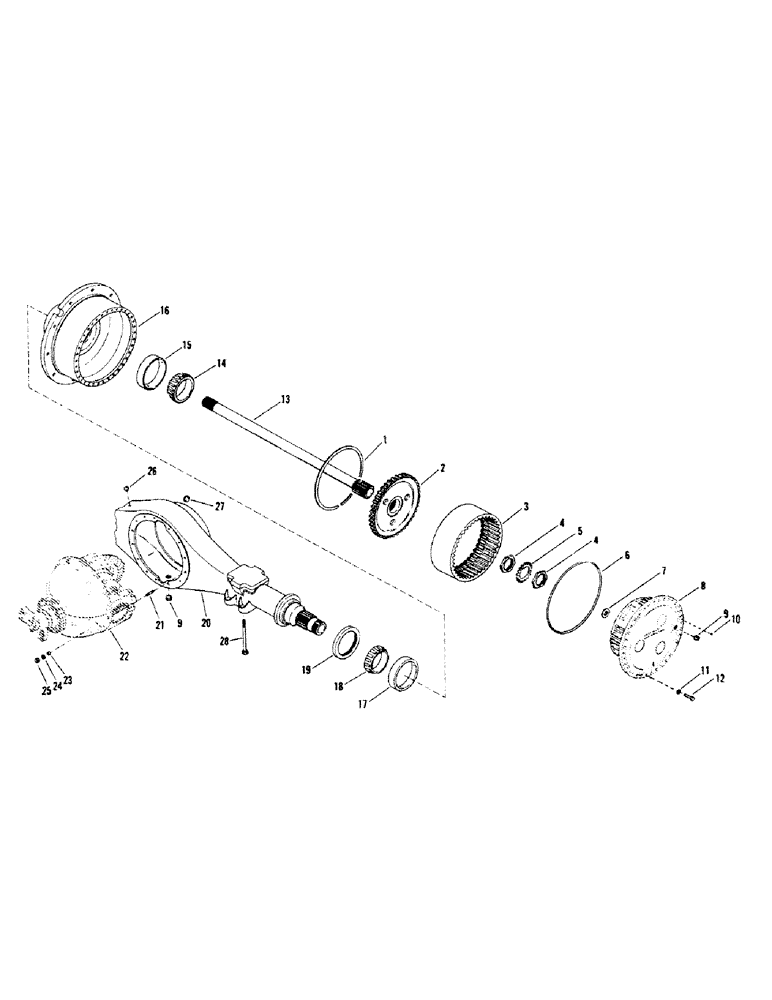

Запчасти Case IH STEIGER (04-60) - AXLE ASSEMBLY, CLARK, HEAVY DUTY (04) - Drive Train

16-1294

AXLE ASSY., front

1шт.

16-1295

AXLE ASSY., rear

1шт.

16-1189

AXLE ASSY., front with no spin

1шт.

16-1190

AXLE ASSY., rear with no spin

1шт.

16-810

GEAR & HUB ASSY., consists of ref. nos. 1-3

2шт.

1

16-747

RETAINING RING

2шт.

2

16-800

HUB

2шт.

3

16-749

RING

GEAR

2шт.

4

16-551

NUT,2.9198" ID

4шт.

5

16-540

LOCK

2шт.

6

16-257

O-RING,15.359" ID x 0.139" Width

2шт.

7

16-750

THRUST WASHER

2шт.

8

16-751

CARRIER

PLANET CARRIER ASSY.

2шт.

9

16-716

PLUG

5шт.

10

16-752

SET SCREW

6шт.

11

16-128

X

WASHER

72шт.

12

16-753

CAPSCREW

72шт.

13

16-805

AXLE & SUN GEAR SHAFT, 39 rolled splines, optional parts used only on BC II and up

2шт.

16-1698

AXLE & SUN GEAR SHAFT, 24 cut splines, this axle was also used as a field upgrade on some BC I and II, prior to SN 3281 and the optional parts would have been used there

2шт.

14

16-718

BEARING CONE

2шт.

15

16-91

BEARING, CUP

BEARING CUP

2шт.

16

16-806

HUB ASSY., Includes 15 and 17

2шт.

17

16-720

BEARING CUP

2шт.

18

16-721

CONE

BEARING CONE

2шт.

19

16-722

OIL SEAL

2шт.

20

16-807

HOUSING, axle

1шт.

21

16-136

STUD

BOLT

14шт.

22

16-808

DIFF. & CARRIER, front, optional parts used only on BC II 3281 and up

1шт.

16-820

DIFF. & CARRIER, rear, 7 x 34 ratio with 39 rolled splines inside gears, optional parts used only on BC II 3281 and up

1шт.

90-2445T91

NO LONGER SERVICED

DIFF. & CARRIER, front

1шт.

90-2446T91

DIFF. & CARRIER, rear, 7 x 34 ratio w/24 cut splines in side gears

1шт.

23

16-105

DOWEL

3шт.

24

16-131

WASHER

14шт.

25

16-728

NUT

14шт.

26

16-116

BREATHER

1шт.

27

16-757

PLUG

1шт.

28

51-84

BOLT

axle mt.

8шт.

19-98

NUT,1"-14, G5

1" NF, for 51-084

8шт.

19-122

LOCK WASHER,1"

1"

8шт.
