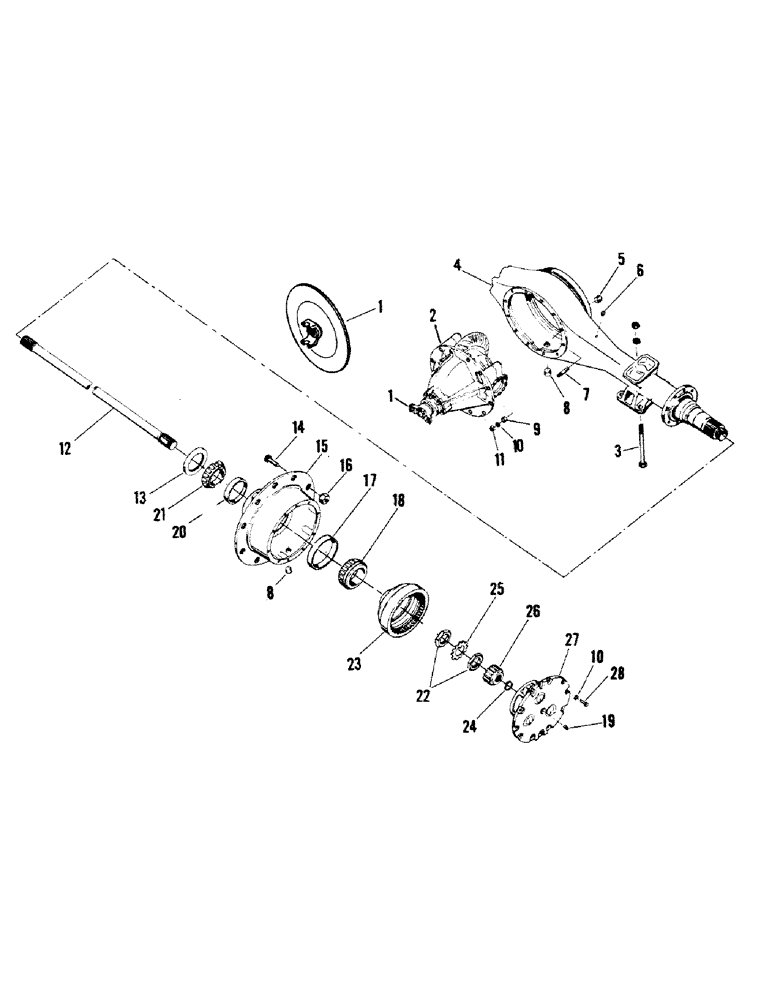

Запчасти Case IH STEIGER (04-59) - AXLE ASSEMBLY - CLARK, STANDARD (04) - Drive Train

1

16-730

FLANGE

YOKE, spicer style, WC and SWCI 8630-8675, BC 2443-3027

1шт.

5-350

BRAKE DISC, same SN as 16-730

1шт.

17-132

YOKE, mechanics, BC II 3028 and up and all SWC II

1шт.

2

16-714

DIFF. & CARRIER ASSY., front

1шт.

Many tractors in this SN range have been field converted to the heavier planetary, see next Figure, All of those will have the 7 x 34 ratio with 24 splines in side gears

1шт.

Many tractors in this SN range have been converted to a higher ratio gear set. Be certain which you have before ordering. This can be determined by checking the outer end of the Pinion Gear or by counting the teeth on the Pinion or Gear.

1шт.

16-727

DIFF. & CARRIER ASSY., rear, 6 x 37 ratio with 24 splines in side gears

1шт.

Many tractors in this SN range have been field converted to the heavier planetary, see next Figure, All of those will have the 7 x 34 ratio with 24 splines in side gears

1шт.

Many tractors in this SN range have been converted to a higher ratio gear set. Be certain which you have before ordering. This can be determined by checking the outer end of the Pinion Gear or by counting the teeth on the Pinion or Gear.

1шт.

90-2445T91

NO LONGER SERVICED

DIFF. & CARRIER ASSY., front

1шт.

90-2446T91

DIFF. & CARRIER ASSY., rear, 7 x 34 ratio w/24 splines in side gears

1шт.

3

51-84

BOLT

axle nut

8шт.

19-98

NUT,1"-14, G5

1" NF

8шт.

19-122

LOCK WASHER,1"

1"

8шт.

4

16-715

HOUSING ASSY.

1шт.

5

16-89

PLUG

1шт.

6

16-116

BREATHER

1шт.

7

16-136

STUD

carrier

14шт.

8

16-716

PLUG

2шт.

9

16-134

DOWEL

3шт.

10

16-131

WASHER

14шт.

11

16-132

NUT

14шт.

12

16-723

AXLE SHAFT

2шт.

13

16-722

OIL SEAL

2шт.

14

19-584

BOLT

LUG BOLT

20шт.

15

16-717

HUB ASSY., Includes ref. 17 and 20

2шт.

16

19-261

NUT,7/8" - 14, Gr 5

20шт.

17

16-91

BEARING, CUP

BEARING CUP

2шт.

18

16-718

BEARING CONE

2шт.

19

16-547

PLUG

2шт.

20

16-720

BEARING CUP

2шт.

21

16-721

CONE

BEARING CONE

2шт.

22

16-551

NUT,2.9198" ID

housing tube

4шт.

23

16-726

GEAR & HUB ASSY.

2шт.

24

16-550

SNAP RING

2шт.

25

16-540

LOCK

2шт.

26

16-541

SUN GEAR

2шт.

16-724

THRUST WASHER, sun gear

2шт.

27

16-725

PINION CARRIER

PLANET CARRIER ASSY., see parts Figure

2шт.

16-544

O-RING, for 16-725

2шт.

28

16-546

BOLT

CAPSCREW

24шт.
