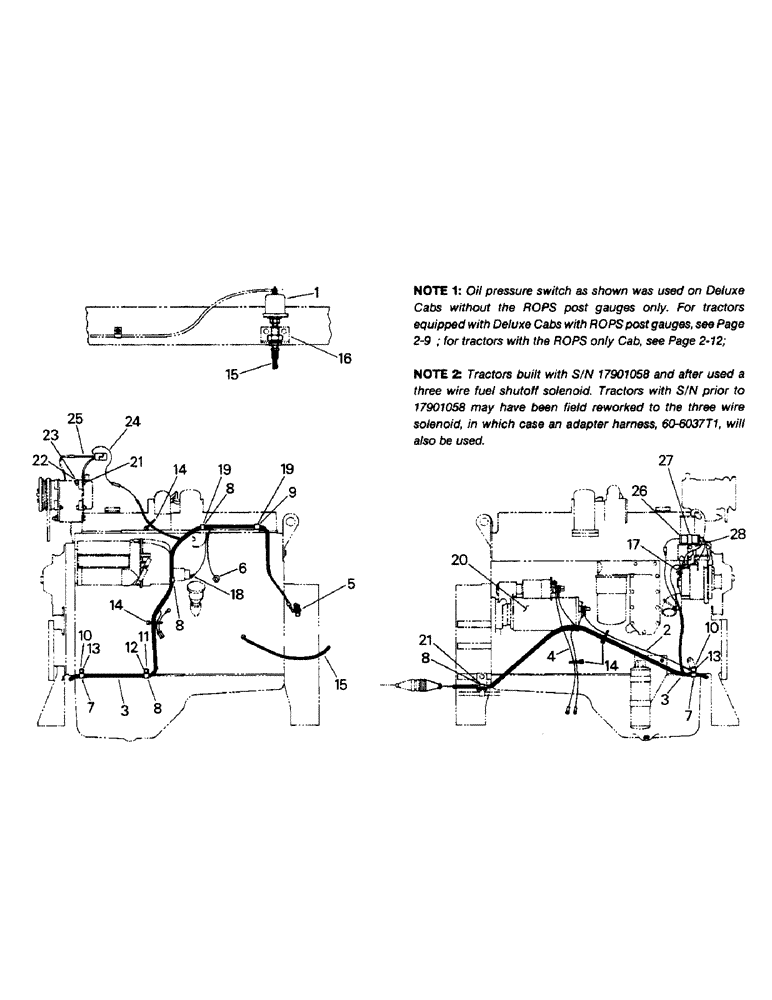

Запчасти Case IH STEIGER (02-01) - ENGINE WIRING (06) - ELECTRICAL

1

1-2227T2

SENDER UNIT

SWITCH - oil pressure

1шт.

2

20-2342T1

CABLE

Starter ground

1шт.

3

20-2372T1

HARNESS

Engine wire (Without ROPS post gauges)

1шт.

20-2499T1

HARNESS

Engine wire (With ROPS post gauges)

1шт.

4

20-2242T1

ELECTRICAL WIRE

WIRE, Serial Range: Starter-solenoid

1шт.

5

20-2357T1

SENSOR

SWITCH - magnetic, engine RPM

1шт.

6

22-681

IGNITION SWITCH

SWITCH - water temperature (With ROPS post gauges)

1шт.

20-1676T1

SWITCH

SWITCH AND SENDER - water temperature (With ROPS post gauges)

1шт.

7

22-628

CABLE CLIP

Engine wire harness

2шт.

8

22-1109

CLAMP

Engine wire harness

4шт.

9

31-1862

CLAMP

Engine wire harness

1шт.

10

40-1104

CAPSCREW, M12 x 1.75 x 16 MM

2шт.

11

40-1096

CAPSCREW,Hex, M10 x 1.5 x 16mm, Gr 8.8

CAPSCREW, M10 x 1.5 x 16 MM

1шт.

12

19-107

WASHER

3/8

1шт.

13

19-108

WASHER,7/16"

7/16

8шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Nylon

4шт.

15

31-2639

HOSE

Oil pressure, 42 inch

1шт.

16

31-2615

ADAPTER

FITTING - bulkhead

1шт.

17

40-1245

LOCK NUT

SPARE PART M6 x 1.0

1шт.

18

NAP

SOLENOID - fuel shutoff (Cummins part)

1шт.

19

NAP

Existing Hardware

1шт.

20

STARTER ASSEMBLY (See Fig. 02-04)

1шт.

21

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

2шт.

22

19-243

LOCK WASHER,Ext Tooth, 3/8"

Lock, 3/8

1шт.

23

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

1шт.

24

22-738

DIODE

A/C compressor

1шт.

25

20-2415T1

HARNESS

Diode suppressor

1шт.

26

20-2461T1

FILTER

FILTER ASSEMBLY - noise suppressor

1шт.

27

31-1349

MOUNTING CLIP

CLAMP - filter

1шт.
