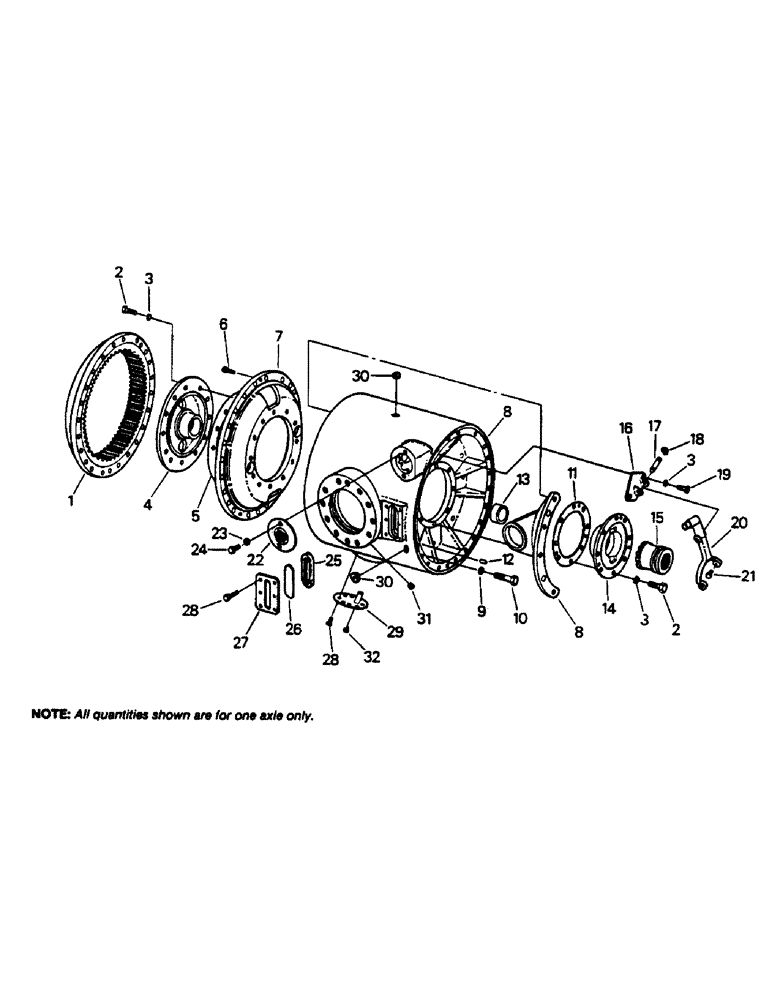

Запчасти Case IH STEIGER (04-41) - DIFFERENTIAL HOUSING ASSEMBLY, K592 BAR AXLE (04) - Drive Train

1

33-1263T1

RING

GEAR - ring

2шт.

2

33-1264T1

CAPSCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

CAPSCREW

20шт.

3

33-1265T1

LOCK WASHER

20шт.

(Quantity 22 with differential lock)

1шт.

4

33-1266T1

SUPPORT

Bearing

1шт.

5

33-1267T1

SHIM

Support (.10 MM)

1шт.

33-1268T1

SHIM

Support (.15 MM)

1шт.

33-1269T1

SHIM

Support (.25 MM)

1шт.

33-1270T1

SHIM

Support (.70 MM)

1шт.

6

33-1271T1

CAPSCREW,Flg, 5/16" - 18 x 1 3/4", Gr 8

CAPSCREW - socket head

3шт.

7

33-1272T1

COVER

Side

1шт.

8

33-1273T91

HOUSING ASSY.

Drive (With differential lock), Includes: Ref. 9 - 11

1шт.

33-1274T91

HOUSING ASSY.

Drive (Without differential lock), Includes: Ref. 9 - 11

1шт.

9

33-1182T1

LOCK WASHER

Lock

5шт.

10

33-1180T1

SCREW

CAPSCREW

5шт.

11

33-1279T1

SHIM

Support (.10 MM)

1шт.

33-1280T1

SHIM

Support (.15 MM)

1шт.

33-1281T1

SHIM

Support (.25 MM)

1шт.

33-1282T1

SHIM

Support (.70 MM)

1шт.

12

33-1277T1

DOWEL

PIN

2шт.

13

33-1278T1

RING

BUSHING - used with differential lock only

1шт.

14

33-1283T1

SUPPORT

Bearing

1шт.

15

33-1284T1

SLEEVE

Shift, used with differential lock only

1шт.

16

33-1285T1

SUPPORT

Shift, used with diferential lock only

1шт.

17

33-1286T1

PIVOT PIN

Pivot, used with differential lock only

1шт.

18

33-1287T1

RING, SNAP

RING SNAP Used with differential lock only

2шт.

19

33-1288T1

CAPSCREW,M12 x 25mm, Cl 10.9

CAPSCREW - used with differential lock only

2шт.

20

33-1289T1

FORK

YOKE - shift, used with differential lock only

1шт.

21

33-1290T1

PIN

Thrust, used with differential lock only

1шт.

22

33-1291T1

SEAL

Shift yoke, used with differential lock

1шт.

33-1292T1

COVER

Shift opening used without differential lock

1шт.

23

33-1294T1

WASHER

Used with differential lock only

2шт.

24

33-1295T1

SCREW

CAPSCREW - used with differential lock

2шт.

33-1293T1

SCREW

CAPSCREW - used without differential lock

6шт.

25

33-1296T1

GASKET

Oil level window

1шт.

26

33-1297T1

GLASS,CAB

WINDOW - oil level check

1шт.

27

33-1298T1

LARGE PLATE

PLATE, LARGE COVER - window

1шт.

28

33-1299T1

CAPSCREW,M8 x 1.25 x 16mm

CAPSCREW

14шт.

29

90-6902T1

COVER

1шт.

30

33-1301T1

PLUG

Fill/drain

2шт.

31

31-357

PLUG

1шт.

32

31-303

BREATHER

VENT

1шт.
