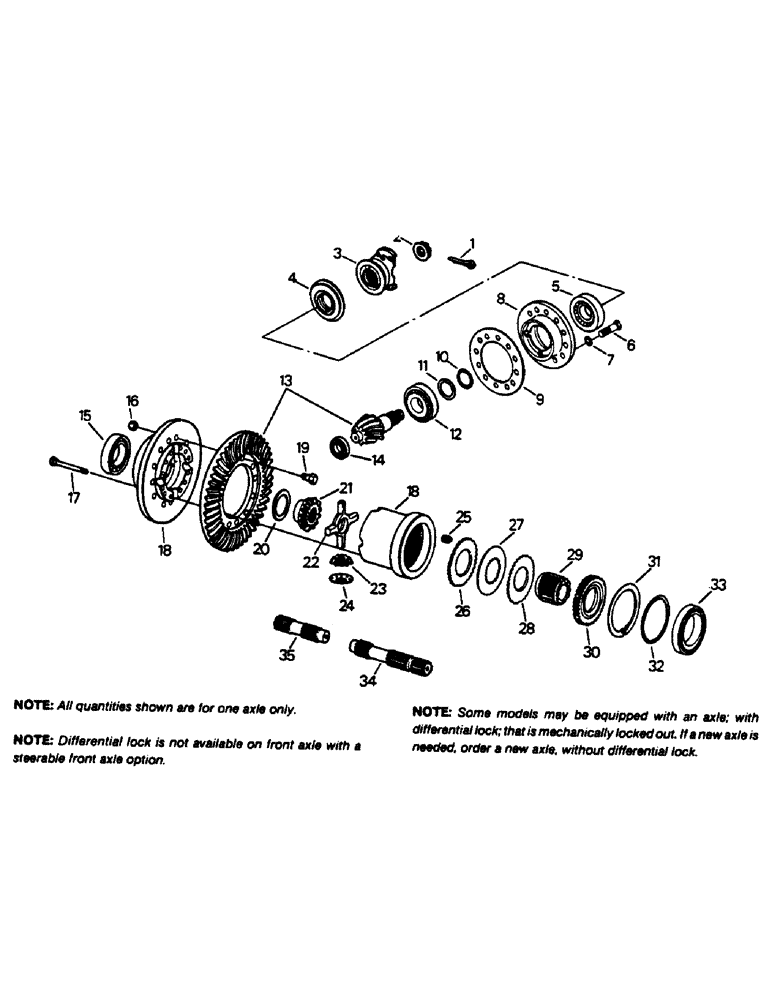

Запчасти Case IH STEIGER (04-39) - DIFFERENTIAL ASSEMBLY, K592 BAR AXLE (04) - Drive Train

90-6853T91

REAR AXLE

AXLE ASSEMBLY (Front) (Without differential lock)

1шт.

90-6852T91

FRONT AXLE

AXLE ASSEMBLY (Rear) (Without differential lock)

1шт.

90-6855T91

FRONT AXLE

AXLE ASSEMBLY (Front) (With differential lock)

1шт.

90-6854T91

REAR AXLE

AXLE ASSEMBLY (Rear) (With differential lock)

1шт.

1

16-1590

COTTER PIN,M6.3 x 63

1шт.

2

16-1589

NUT

1шт.

3

33-1177T1

YOKE

UNIVERSAL JOINT YOKE (Front)

1шт.

3

33-1176T1

FORK

(Rear)

1шт.

4

33-1178T1

OIL SEAL

Pinion

1шт.

5

33-1179T1

TAPERED BEARING

Roller

1шт.

6

33-1180T1

SCREW

CAPSCREW (Rear axle)

12шт.

33-1181T1

SCREW

CAPSCREW (Front axle)

12шт.

7

33-1182T1

LOCK WASHER

Lock

12шт.

8

33-1183T91

CAGE ASSY.

Bearing, Include: Ref. 5 & 12

1шт.

9

33-1184T1

SHIM

Bearing (.10 MM)

1шт.

33-1185T1

SHIM

Bearing (.15 MM)

1шт.

33-1186T1

SHIM

Bearing (.25 MM)

1шт.

33-1187T1

SHIM

Bearing (.70 MM)

1шт.

10

33-1188T1

SPACER

Bearing (6.90 MM)

1шт.

33-1189T1

SPACER

Bearing (7.00 MM)

1шт.

33-1190T1

SPACER

Bearing (7.02 MM)

1шт.

33-1191T1

SPACER

Bearing (7.04 MM)

1шт.

33-1192T1

SPACER

Bearing (7.06 MM)

1шт.

33-1193T1

SPACER

Bearing (7.08 MM)

1шт.

33-1194T1

SPACER

Bearing (7.10 MM)

1шт.

33-1195T1

SPACER

Bearing (7.20 MM)

1шт.

33-1196T1

SPACER

Bearing (7.32 MM)

1шт.

33-1197T1

SPACER

Bearing (7.44 MM)

1шт.

33-1198T1

SPACER

Bearing (7.56 MM)

1шт.

33-1199T1

SPACER

Bearing (7.68 MM)

1шт.

33-1200T1

SPACER

Bearing (7.80 MM)

1шт.

33-1201T1

SPACER

Bearing (7.92 MM)

1шт.

11

33-1202T1

SPACER

Bearing (6.90 MM)

1шт.

33-1203T1

SPACER

Bearing (7.00 MM)

1шт.

33-1204T1

SPACER

Bearing (7.02 MM)

1шт.

33-1205T1

SPACER

Bearing (7.04 MM)

1шт.

33-1206T1

SPACER

Bearing (7.06 MM)

1шт.

33-1207T1

SPACER

Bearing (7.08 MM)

1шт.

33-1208T1

SPACER

Bearing (7.10 MM)

1шт.

33-1209T1

SPACER

Bearing (7.20 MM)

1шт.

33-1210T1

SPACER

Bearing (7.32 MM)

1шт.

33-1211T1

SPACER

Bearing (7.44 MM)

1шт.

33-1212T1

SPACER

Bearing (7.56 MM)

1шт.

33-1213T1

SPACER

Bearing (7.68 MM)

1шт.

33-1214T1

SPACER

Bearing (7.80 MM)

1шт.

33-1215T1

SPACER

Bearing (7.92 MM)

1шт.

12

33-1216T1

TAPERED BEARING

Roller

1шт.

13

33-1217T91

RING

GEAR SET - ring and pinion (Rear), Includes: Ref. 1, 2, 16 and 19

1шт.

33-1218T91

GEAR-SET

Ring and pinion (Front), Includes: Ref. 1, 2, 16 and 19

1шт.

14

33-1219T1

ROLLER BEARING,35 mm ID x 80 mm OD x 21 mm

Roller

1шт.

15

16-1523

BEARING ASSY,85mm ID x 130mm OD x 29mm W

Roller

1шт.

16

33-1220T1

NUT

12шт.

17

33-1221T1

CAPSCREW,Hex, M14 x 1.5 x 140mm, Cl 10.9

CAPSCREW

12шт.

18

33-1222T91

BOX

CASE ASSEMBLY - differential, Includes: Ref. 17

1шт.

19

33-1224T1

CAPSCREW,Hex

CAPSCREW

12шт.

20

33-1225T1

SPACER

Side gear

2шт.

21

33-1226T1

GEAR

Side

2шт.

22

33-1227T1

DIFF. SPIDER

Pinion gear

1шт.

23

33-1228T1

GEAR

Pinion

4шт.

24

33-1229T1

SPACER

Pinion gear

4шт.

25

33-1230T1

SPRING

Compression

17шт.

26

33-1231T1

DISC

Thrust

1шт.

27

33-1232T1

CLUTCH DISC

CLUTCH DISK Inner

15шт.

28

33-1233T1

DISC

Outer

14шт.

29

33-1234T1

HUB

Splined

1шт.

30

33-1235T1

LARGE PLATE

PLATE, LARGE Backing

1шт.

31

1-6727

RING, SNAP

RING SNAP

1шт.

32

33-1236T1

WASHER

1шт.

33

33-1237T1

TAPERED BEARING

Roller

1шт.

34

33-1238T1

SHAFT

Inner, long

1шт.

35

33-1239T1

SHAFT

Inner, short

1шт.
