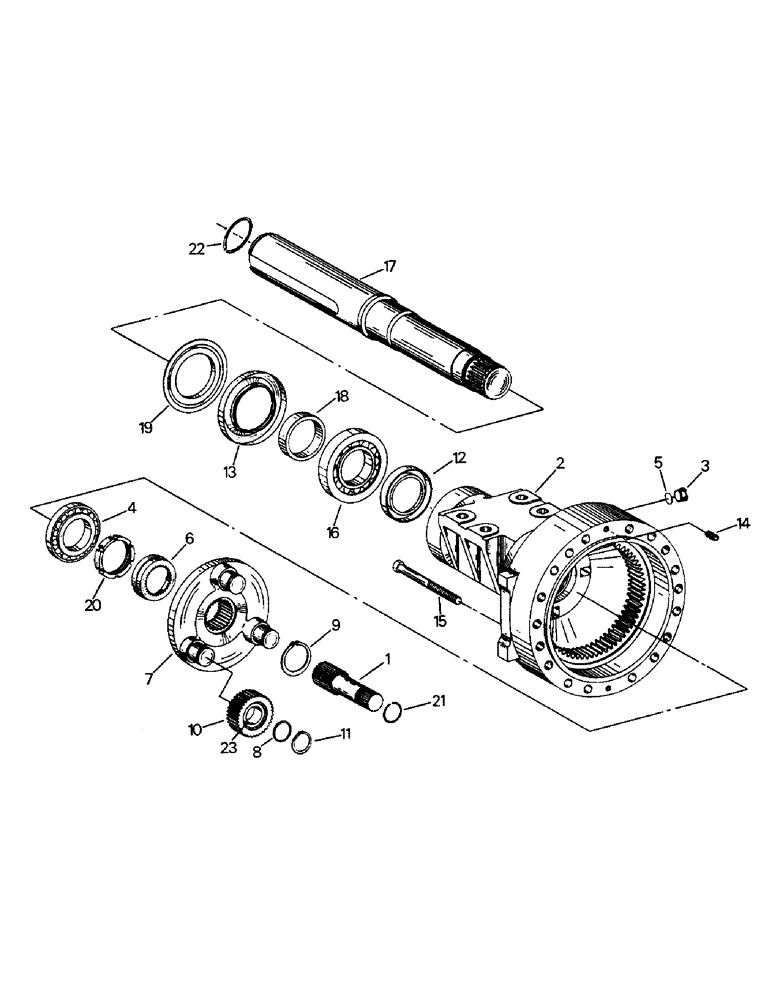

Запчасти Case IH STEIGER (04-38) - PLANETARY AND AXLE END, MODEL AP-3445 ADJUSTABLE BAR (04) - Drive Train

1

33-1112T1

SHAFT

Planetary drive

2шт.

2

33-1408T1

AXLE HOUSING

(33-1113T1)

2шт.

Old part must not be used. Part is defective or inadequate. Scrap or return old part.

1шт.

3

33-1051T1

PLUG

Axle

2шт.

4

33-1114T1

BEARING

Roller

2шт.

5

33-1052T1

O-RING

Plug

2шт.

6

33-1115T1

PLATE, LOCKING

Lock

2шт.

7

33-1116T1

CARRIER

Planetary

2шт.

8

33-1117T1

SHIM

Bearing

6шт.

9

33-1118T1

RING, SNAP

RING SNAP

2шт.

10

33-1119T1

GEAR, PLANETARY

GEAR, PLANET (Includes Ref. 23)

6шт.

11

33-1120T1

CIRCLIP

RING - snap

6шт.

12

33-1121T1

SEAL

Axle shaft (95 x 120 x 13 MM)

2шт.

13

33-1122T1

SEAL

Axle shaft

2шт.

14

40-1244

PIN, ROLL

(10 x 24 MM)

2шт.

15

40-1243

CAPSCREW,M12 x 1.75 x 150mm, Gr 8.8

CAPSCREW, M12 x 1.75 x 150 MM G-8.8

36шт.

16

33-1123T1

BEARING

Roller

2шт.

17

33-1124T1

DRIVE SHAFT

Axle

2шт.

18

33-1125T1

OIL SEAL

RING

2шт.

19

33-1126T1

COVER

PLATE - cover

2шт.

20

33-1127T1

NUT

2шт.

21

33-1128T1

RING, SNAP

RING SNAP

2шт.

22

C70930809

RING, SNAP

RING SNAP

2шт.

23

33-1407T1

BEARING

Planet gear

6шт.
