(04-37) - DIFFERENTIAL ASSEMBLY, MODEL AP-3445 ADJUSTABLE BAR

Запчасти Case IH STEIGER (04-37) - DIFFERENTIAL ASSEMBLY, MODEL AP-3445 ADJUSTABLE BAR (04) - Drive Train

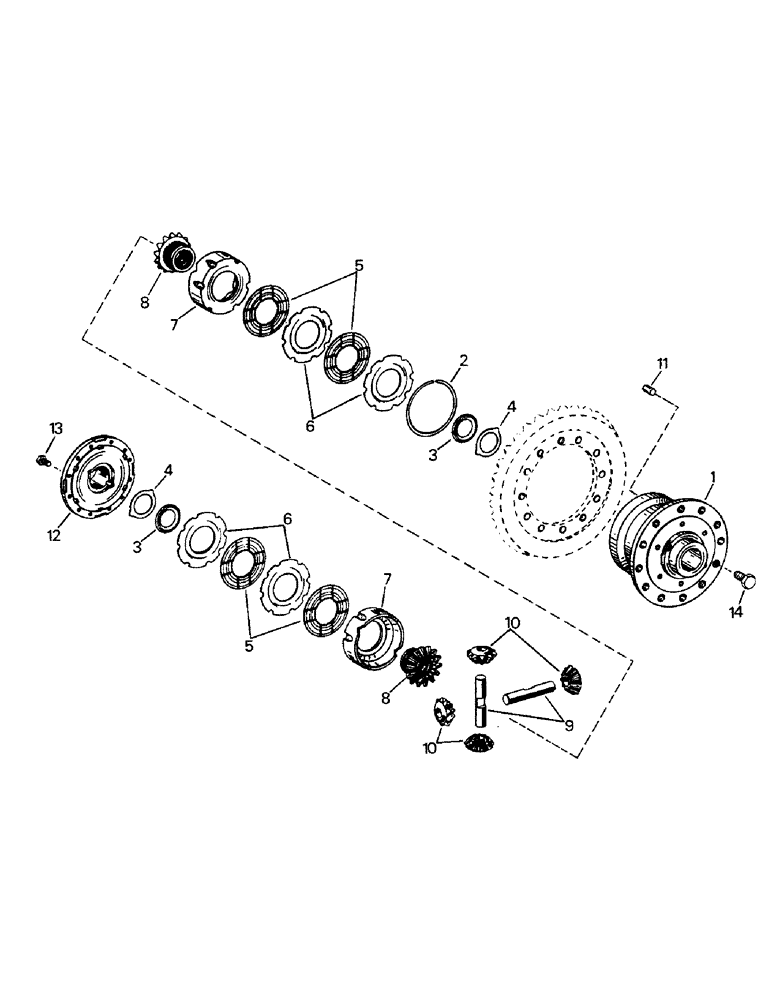

Схема запчастей Case IH STEIGER - (04-37) - DIFFERENTIAL ASSEMBLY, MODEL AP-3445 ADJUSTABLE BAR (04) - Drive Train
10
13
6
4
11
7
10
5
7
14
3
6
3
1
8
5
9
4
2
12
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

33-1111T91

DIFFERENTIAL

SPARE PART ASSEMBLY, Includes: Ref. 1 - 14

1шт.

1

33-1094T1

CASE

SPARE PART Differential

1шт.

2

33-1095T1

RING, SNAP

RING SNAP

1шт.

3

33-1096T1

WASHER

Thrust

2шт.

4

33-1097T1

WASHER

Thrust

2шт.

5

33-1098T1

PLATE

Outer friction (2.7 MM)

4шт.

33-1099T1

PLATE

SPARE PART Outer friction (2.8 MM)

1шт.

33-1100T1

PLATE

SPARE PART Outer friction (2.9 MM)

1шт.

33-1101T1

PLATE

Outer friction (3.0 MM)

1шт.

6

33-1102T1

PLATE

Inner friction

4шт.

7

33-1103T1

PLATE

Pressure

2шт.

8

33-1104T1

GEAR

Side

2шт.

9

33-1105T1

SHAFT

Pinion

2шт.

10

33-1106T1

GEAR

Pinion

4шт.

11

33-1107T1

DOWEL

SPARE PART PIN - dowel

12шт.

12

33-1108T1

COVER

Differential

1шт.

13

33-1109T1

LOCK SCREW

CAPSCREW

12шт.

14

33-1110T1

LOCK SCREW

CAPSCREW

12шт.
