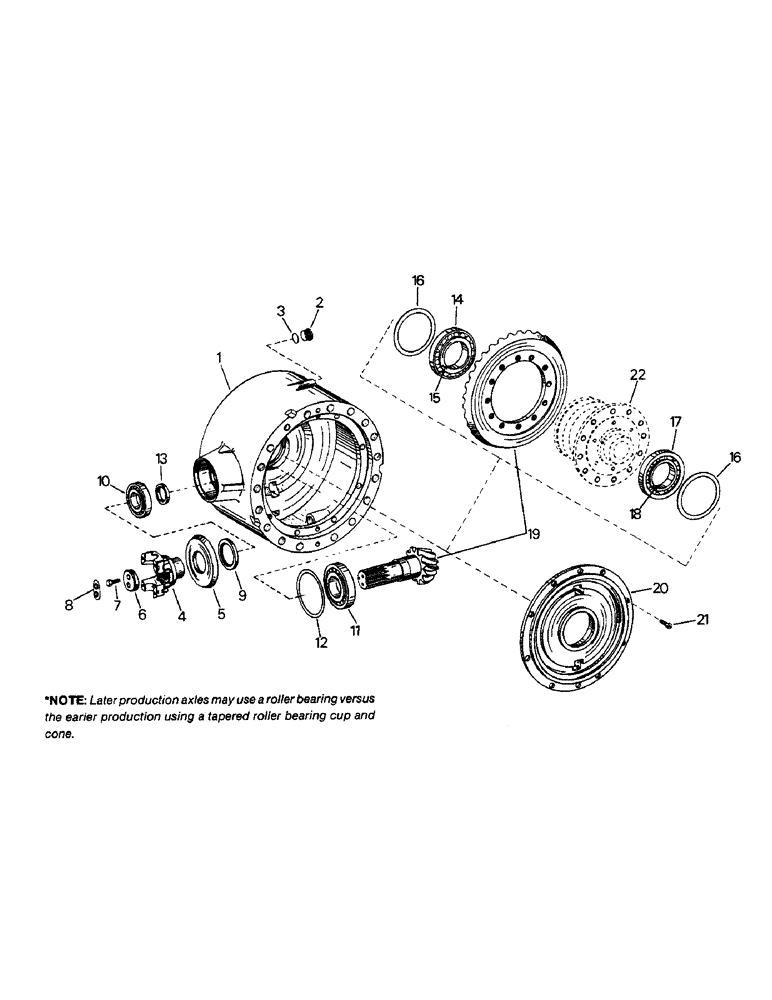

Запчасти Case IH STEIGER (04-35) - DIFFERENTIAL AND HOUSING, MODEL AP-3445 ADJUSTABLE BAR (04) - Drive Train

90-6660T91

CENTER AXLE

SPARE PART Front, complete

1шт.

90-6744T91

AXLE

SPARE PART Rear, complete

1шт.

1

33-1050T1

HOUSING

SPARE PART Axle center section

1шт.

2

33-1051T1

PLUG

Fill/drain

2шт.

3

33-1052T1

O-RING

Plug

2шт.

4

33-1053T2

YOKE

UNIVERSAL JOINT YOKE Axle (33-1053T1)

1шт.

Old part must not be used. Part is defective or inadequate. Scrap or return old part.

1шт.

5

33-1054T1

COVER

RETAINER - bearing

1шт.

6

33-1055T1

WASHER

Bearing

1шт.

7

40-1093

BOLT,Hex, M10 x 1.5 x 30mm, Gr 8.8

CAPSCREW, M10 x 1.5 x 30 MM G-8.8

2шт.

8

33-1056T1

LARGE PLATE

PLATE, LARGE Capscrew lock

1шт.

9

33-1057T1

SEAL

Pinion

1шт.

10

33-1058T1

BEARING

Roller, outer

1шт.

11

33-1059T1

ROLLER BEARING

Roller, inner

1шт.

12

33-1060T1

SHIM

Bearing (0.7 MM)

1шт.

33-1061T1

SHIM

Bearing (0.8 MM)

1шт.

33-1062T1

SHIM

Bearing (0.9 MM)

1шт.

33-1063T1

SHIM

Bearing (1.0 MM)

1шт.

33-1064T1

SHIM

Bearing (1.1 MM)

1шт.

33-1065T1

SHIM

Bearing (1.2 MM)

1шт.

33-1066T1

SHIM

Bearing (1.3 MM)

1шт.

33-1067T1

SHIM

Bearing (1.4 MM)

1шт.

33-1068T1

SHIM

Bearing (1.5 MM)

1шт.

33-1069T1

SHIM

Bearing (0.2 MM)

1шт.

33-1070T1

SHIM

Bearing (0.1 MM)

1шт.

13

33-1071T1

SPACER

(8.8 MM)

1шт.

33-1072T1

SPACER

(8.7 MM)

1шт.

33-1073T1

SPACER

(8.6 MM)

1шт.

33-1074T1

SPACER

(8.5 MM)

1шт.

33-1075T1

SPACER

(8.4 MM)

1шт.

33-1076T1

SPACER

SPARE PART (8.3 MM)

1шт.

33-1077T1

SPACER

(8.9 MM)

1шт.

33-1396T1

SPACER

(9.1 MM)

1шт.

33-1397T1

SPACER

(9.2 MM)

1шт.

33-1398T1

SPACER

SPARE PART (9.3 MM)

1шт.

33-1399T1

SPACER

(9.4 MM)

1шт.

14

33-1078T1

BEARING

CUP - bearing

1шт.

Later production axles may use a roller bearing while earlier production used a tapered roller bearing cup and cone.

1шт.

15

33-1079T1

CONE

Bearing

1шт.

Later production axles may use a roller bearing while earlier production used a tapered roller bearing cup and cone.

1шт.

33-1395T1

ROLLER ASSY.

SPARE PART BEARING - roller

1шт.

Later production axles may use a roller bearing while earlier production used a tapered roller bearing cup and cone.

1шт.

16

33-1080T1

SHIM

Bearing (1.0 MM)

2шт.

33-1081T1

SHIM

Bearing (1.1 MM)

1шт.

33-1082T1

SHIM

Bearing (1.2 MM)

1шт.

33-1083T1

SHIM

Bearing (1.3 MM)

1шт.

33-1084T1

SHIM

Bearing (1.4 MM)

1шт.

33-1085T1

SHIM

Bearing (1.5 MM)

1шт.

33-1086T1

SHIM

Bearing (1.6 MM)

1шт.

33-1087T1

SHIM

Bearing (1.7 MM)

1шт.

33-1088T1

SHIM

Bearing (1.8 MM)

1шт.

17

33-1089T1

CUP

Bearing

1шт.

18

33-1090T1

CONE

Bearing

1шт.

19

33-1091T1

GEAR-SET

Rng and pinion (Front)

1шт.

33-1092T1

GEAR-SET

Ring and pinion (Rear)

1шт.

20

33-1093T1

COVER

Housing side

2шт.

21

40-1219

BOLT,M10 x 1.5 x 25mm, Gr 8.8

CAPSCREW - socket head, M10 x 1.50 x 25 MM G-8.8

8шт.

22

DIFFERENTIAL ASSEMBLY (see Fig. 04-37)

1шт.
