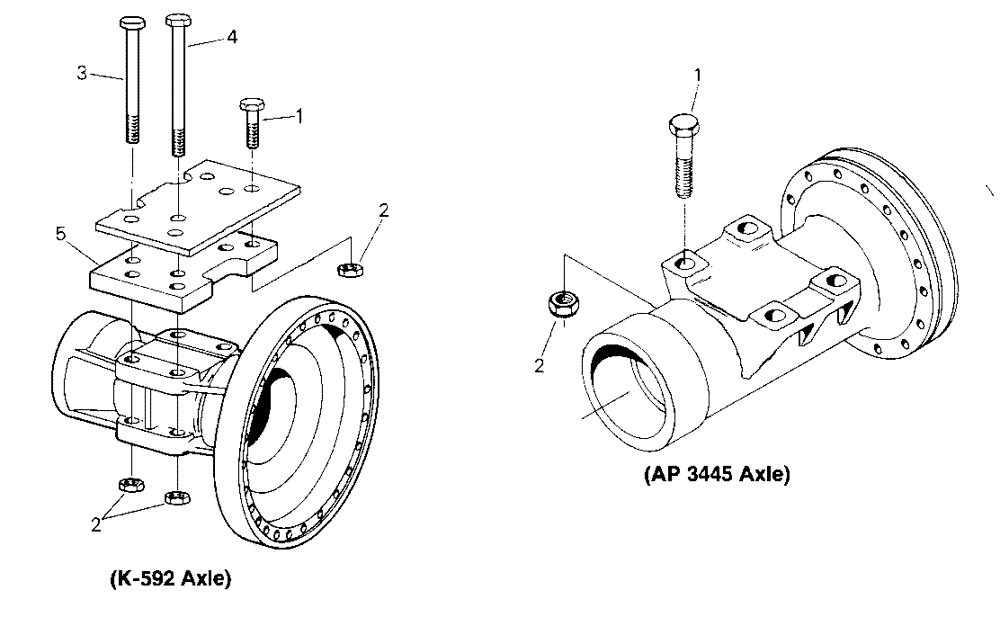

Запчасти Case IH STEIGER (04-34) - REAR AXLE MOUNTING (04) - Drive Train

1

223489

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

CAPSCREW, 1 UNC x 3-1/2 G-8

8шт.

2

19-859

LOCK NUT

Lock, 1 UNC G-B

16шт.

(Qty 8 w/AP3445 Axle)

1шт.

3

19-1318

BOLT,Hex, 1" - 8 x 10 1/2", Gr 8

CAPSCREW, 1 UNC x 10-1/2 G-8

4шт.

4

19-5425

BOLT,Hex, 1" - 8 x 11.50", Gr 8

CAPSCREW, 1 UNC x 11-1/2 G-8

4шт.

5

90-6915T1

ADAPTER

SPARE PART MOUNT - axle adapter

2шт.
