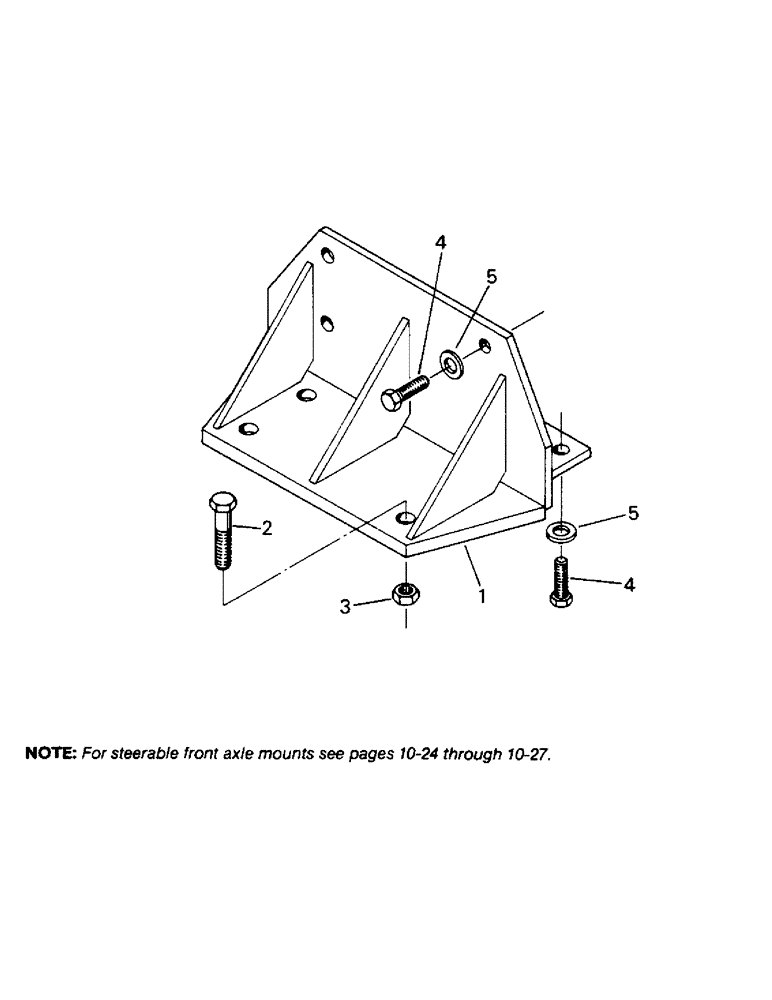

Запчасти Case IH STEIGER (04-33) - FRONT AXLE MOUNTING, NON-STEERABLE AXLE (04) - Drive Train

1

90-6041T1

AXLE

MOUNT - axle

2шт.

2

50-2966T1

TUBE ASSY.

SPARE PART

2шт.

3

19-018

CAPSCREW, 3/8 UNC X 1-1/4 G5

2шт.

4

19-107

WASHER

3/8

2шт.

5

19-087

LOCKNUT, 1 UNC G-B

2шт.

6

9403369

CAP,37 Degree, 7/16"-20

CAPNUT, 7/16-20 JIC 37 DEGREE

2шт.

7

90-6041T1

AXLE

MOUNT (AP3445 AXLE)

2шт.

8

223489

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

CAPSCREW, 1 UNC X 3-1/2 G-8

8шт.

9

19-859

LOCK NUT

LOCK, 1 UNC G-B

8шт.

10

19-476

BOLT,Hex, 3/4" - 10 x 2", Gr 8

CAPSCREW, 3/4 UNC X 2 G-8

16шт.

11

19-5723

WASHER

HARDENED WASHER, 3/4 X 1-1/2 X 5/32 THK

16шт.

12

31-2520

NUT,Blkhd, 3/4"-16

2шт.

13

EXISTING PARTS

1шт.

14

90-6920T1

MOUNTING PARTS

AXLE MOUNT, RIGHT HAND (K592 AXLE)

1шт.

90-6919T1

MOUNTING PARTS

AXLE MOUNT, LEFT HAND (K592 AXLE)

1шт.

15

19-815

BOLT,Hex, 1" - 8 x 9 1/4", Gr 8

CAPSCREW, 1 UNC X 9-1/4 G-8

8шт.
