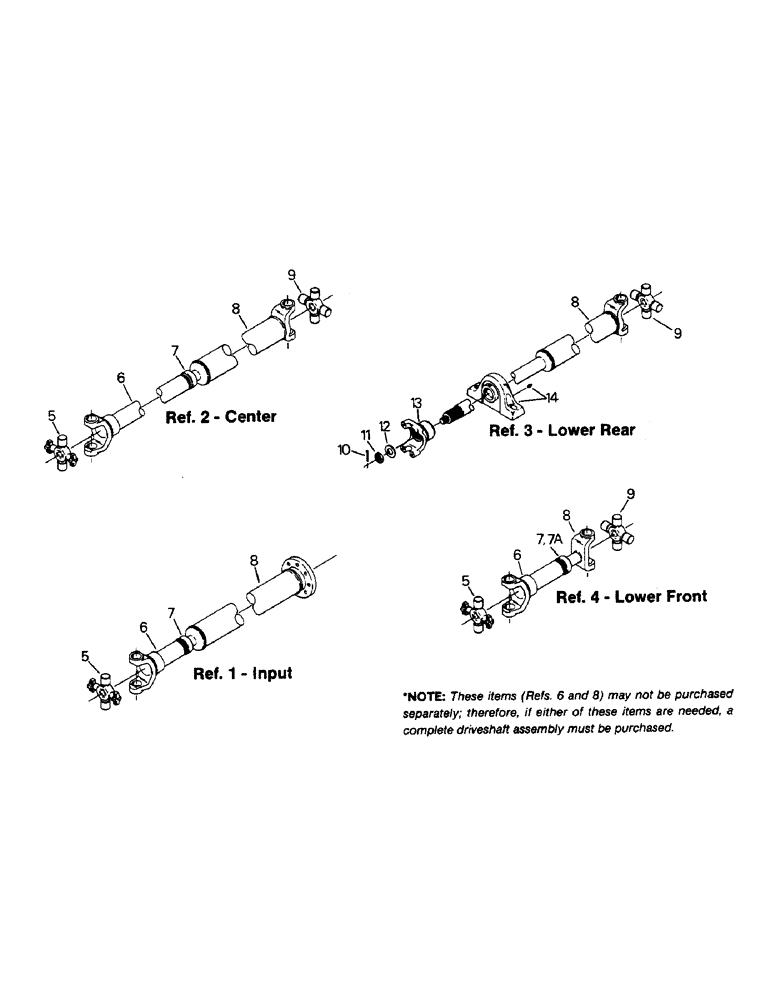

Запчасти Case IH STEIGER (04-32) - DRIVESHAFTS (04) - Drive Train

1

90-6646T91

DRIVE SHAFT

ASSEMBLY (Includes Refs. 5, 6, 7 and 8)

1шт.

2

90-6643T91

DRIVE SHAFT

ASSEMBLY (Includes Refs. 5, 6, 7, 8 and 9)

1шт.

3

90-6922T91

DRIVE SHAFT

ASSEMBLY (K592 Axle) (Includes Refs. 8-14)

1шт.

3

90-6645T91

DRIVE SHAFT

ASSEMBLY (AP3445 axle) (Includes Refs. 8 thru 14)

1шт.

4

90-6642T91

DRIVE SHAFT

ASSEMBLY (AP3445 axle) - without steerable axle (Includes refs. 5, 6 7A, 8 and 9)

1шт.

90-6647T91

DRIVE SHAFT

ASSEMBLY (AP3445 axle) - with steerable axle (Includes refs. 5, 6, 7, 8 and 9)

1шт.

90-6921791

ASSEMBLY - with and without steerable axle (K592 Axle) (Includes refs. 5,6,7,8 & 9)

1шт.

5

33-1005T1

U-JOINT SPIDER

Driveshaft

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE ASSEMBLY

1шт.

These Refs. (Refs. 6 and 8) may not be purchased separately; therefore, if either of these Refs. are needed, a complete driveshaft assembly must be purchased.

1шт.

7

33-1001T1

SEAL RETAINER

SEAL ASSEMBLY

1шт.

7a

33-1390T1

SEAL ASSY.

Retaining

1шт.

8

NSS

NOT SOLD SEPARAT

YOKE - slip

1шт.

These Refs. (Refs. 6 and 8) may not be purchased separately; therefore, if either of these Refs. are needed, a complete driveshaft assembly must be purchased.

1шт.

9

33-1004T1

JOINT

U-JOINT - driveshaft

1шт.

10

33-1314T1

WASHER

SPARE PART PIN - cotter, driveshaft

1шт.

11

33-1315T1

NUT

Driveshaft

1шт.

12

33-1316T1

WASHER

Driveshaft

1шт.

13

33-1313T1

YOKE

UNIVERSAL JOINT YOKE Driveshaft

1шт.

14

33-1008T1

BEARING

PILLOW BLOCK

1шт.
