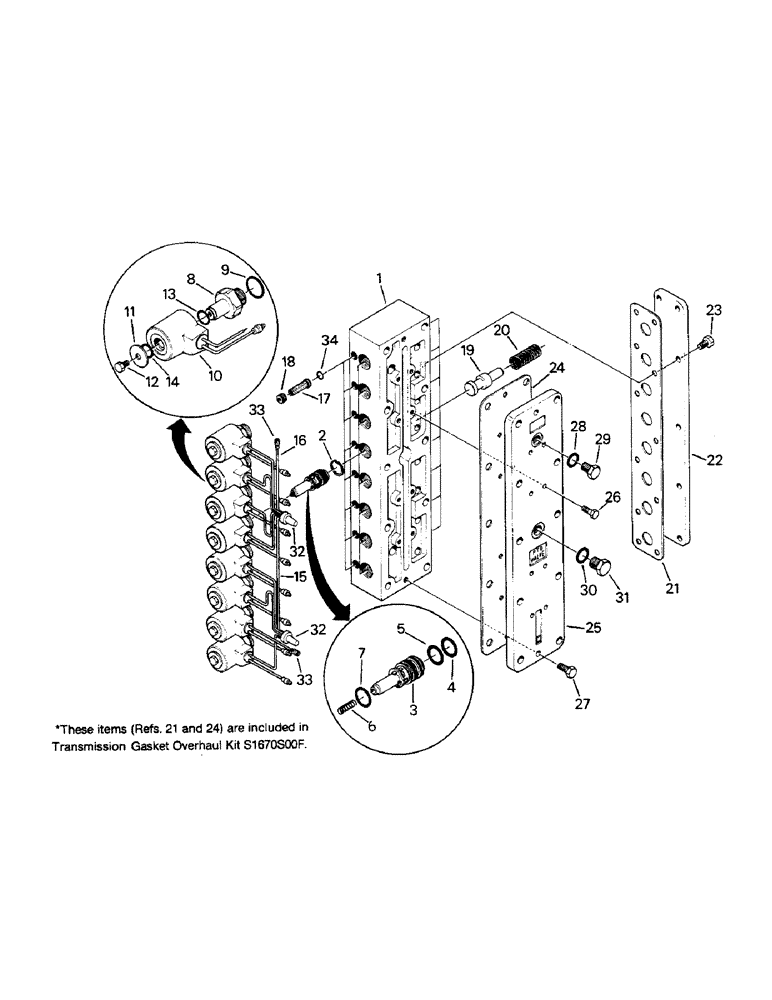

Запчасти Case IH STEIGER (04-26) - RANGE SELECTOR VALVE ASSEMBLY (04) - Drive Train
№
Артикул
Название
Примечание
Количество
S9000S00F
CHECK VALVE
ASSEMBLY - range selector, Includes: Ref. 1 - 31
1шт.
1
S9050S00F
VALVE BODY
SPARE PART
1шт.
2
S9090S00F
RING, SNAP
RING SNAP
8шт.
S9300S00F
SOLENOID
ASSEMBLY, Includes: Ref 3 - 11
8шт.
371737A1R
REMAN-SOLENOID
Reman for New PN S9300S00F
8шт.
371737A1C
CORE-SOLENOID
Return Number
8шт.
3
S9180S00F
VALVE
ASSEMBLY - pilot
8шт.
3
371737A1R
REMAN-SOLENOID
Reman for New PN S9180S00F
8шт.
3
371737A1C
CORE-SOLENOID
Return Number
8шт.
4
S9310S00F
O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro
16шт.
5
S9320S00F
O-RING
8шт.
6
S9330S00F
SPRING
8шт.
7
S9340S00F
PLUG
Solenoid
8шт.
8
S9350S00F
O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro
8шт.
9
S9070S00F
SOLENOID
AND WIRE ASSEMBLY
8шт.
9
371737A1R
REMAN-SOLENOID
Reman for New PN S9070S00F
8шт.
9
371737A1C
CORE-SOLENOID
Return Number
8шт.
10
S9360S00F
WASHER
8шт.
11
S9370S00F
BOLT
8шт.
12
S9130S00F
ELECTRICAL WIRE
WIRE
1шт.
13
S9120S00F
ELECTRICAL WIRE
WIRE With terminal
1шт.
14
S9060S00F
SCREEN
FILTER
8шт.
15
S9080S00F
PLUG
8шт.
16
S9040S00F
VALVE
SELECTOR
8шт.
17
S9010S00F
SPRING
8шт.
18
S9030S00F
GASKET
1шт.
19
S9020S00F
PLATE
SPARE PART SIDE
1шт.
20
SM8180820
CAPSCREW
SPARE PART CAPSCREW
11шт.
21
S9110S00F
GASKET
1шт.
These Refs. (Refs. 21 and 24) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.
1шт.
22
S9100S00F
COVER
SPARE PART VALVE COVER
1шт.
23
SM8120260
CAPSCREW, M8 x 1.25 x 20 MM G-8.8
8шт.
24
SM8120825
BOLT
CAPSCREW
2шт.
These Refs. (Refs. 21 and 24) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.
1шт.
25
S1040S00F
O-RING
O-RING
1шт.
26
S1030S00F
PLUG
(includes Ref. 25)
1шт.
27
S1320S00F
O-RING
CAPSCREW, M8 x 1.25 x 25 MM G-8.8
1шт.
28
S1390S00F
PLUG
(includes Ref. 27)
1шт.
29
S9140S00F
TERMINAL CONNECTOR
2шт.
30
S9160S00F
TERMINAL CONNECTOR
2шт.
31
S9170S00F
O-RING
8шт.
Выбрано товаров: 41
