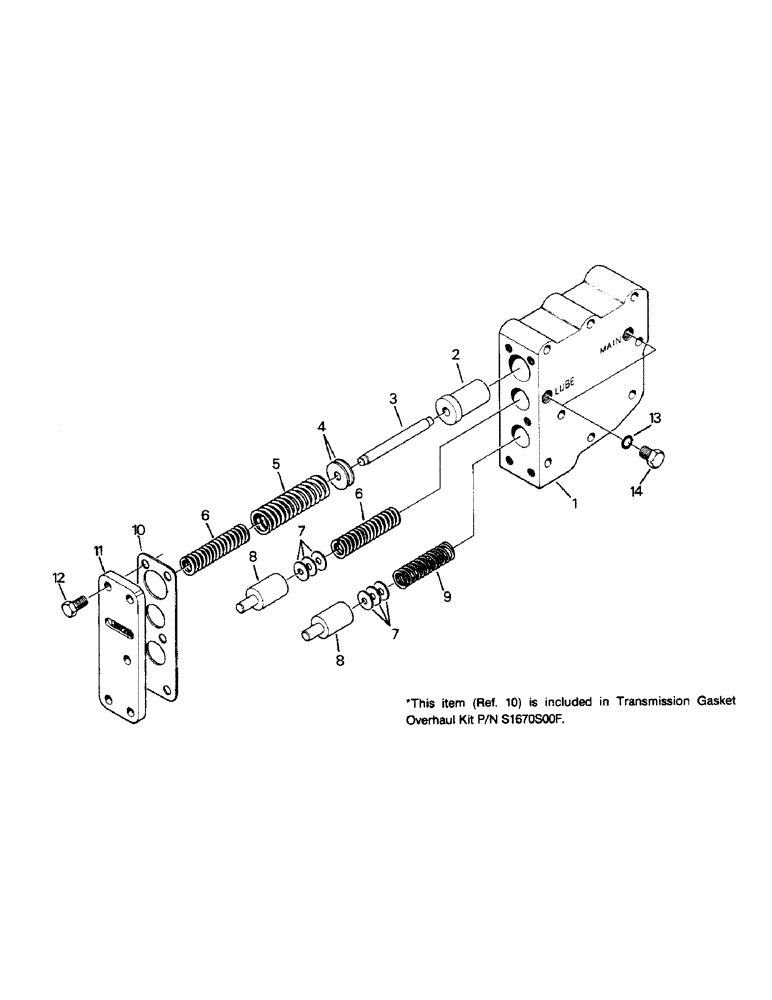

Запчасти Case IH STEIGER (04-24) - REGULATOR VALVE ASSEMBLY (04) - Drive Train

S7000S00F

VALVE

ASSEMBLY - regulator, Includes: Ref. 1 - 14

1шт.

1

S7040S00F

VALVE BODY

Regulator

1шт.

2

S7030S00F

VALVE

Regulator

1шт.

3

S7020S00F

STEM

ROD - pressure

1шт.

4

S7010S00F

SHIM,.039" Thk

1шт.

5

S7120S00F

SPRING

Compression

1шт.

6

S7050S00F

SPRING

Compression

2шт.

7

S7080S00F

SHIM,.031" Thk

1шт.

8

S7060S00F

VALVE

Lube

1шт.

9

S7070S00F

SPRING

Compression

1шт.

10

S7090S00F

GASKET

Valve cover

1шт.

This Ref. (Ref. 10) is included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

11

S7110S00F

COVER

Valve body

1шт.

12

SM8120820

BOLT

CAPSCREW, M8 x 1.25 x 20 MM G-8.8

5шт.

13

S1040S00F

O-RING

O-RING

2шт.

14

S1030S00F

PLUG

(Includes Ref. 13)

2шт.
