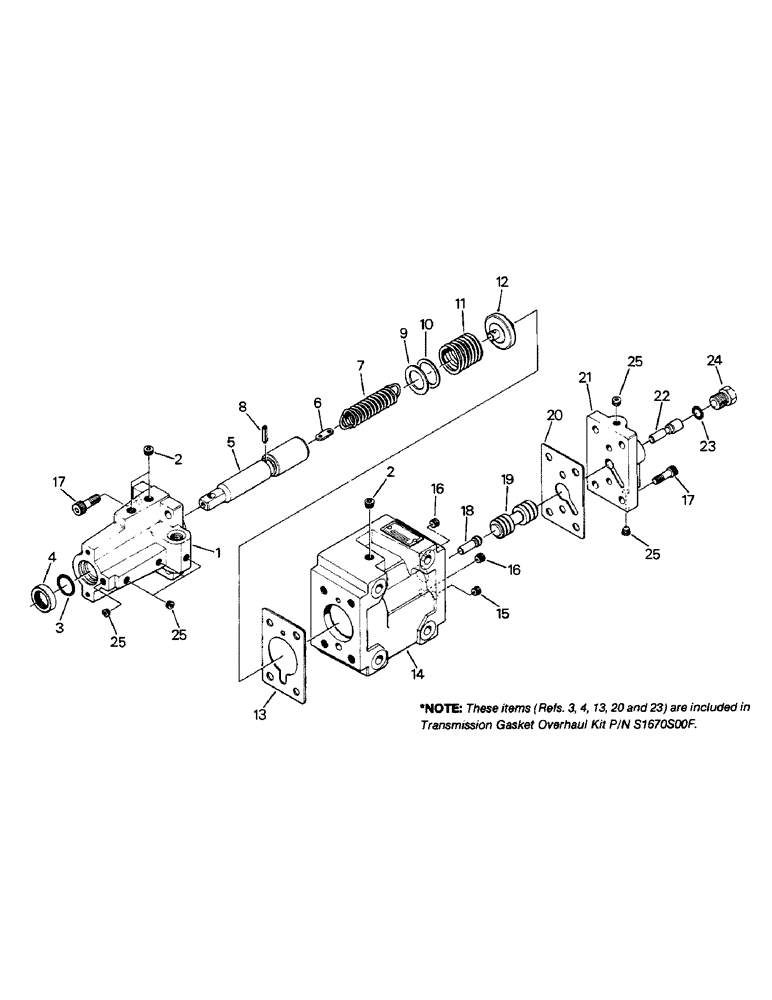

Запчасти Case IH STEIGER (04-23) - TRANSMISSION CLUTCH CONTROL VALVE ASSEMBLY (04) - Drive Train

S6000S00F

VALVE

ASSEMBLY - clutch control, Includes: Ref. 1 - 25

1шт.

1

S6090S00F

HOUSING

COVER - control stem

1шт.

2

STX99700F

PLUG

3шт.

3

S6120S00F

O-RING

Control stem

1шт.

These Refs. (Refs. 3, 4, 13, 20 and 23) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

4

S6110S00F

OIL SEAL

Control stem

1шт.

These Refs. (Refs. 3, 4, 13, 20 and 23) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

5

S6100S00F

HOUSING

STEM - control

1шт.

6

S6080S00F

LINK, CONNECTING

1шт.

7

S6210S00F

SPRING

Tension

1шт.

8

S6130S00F

PIN, ROLL

PIN - roll

1шт.

9

S6200S00F

SPACER

(31 MM x 1.2 MM thk)

1шт.

10

S6140S00F

SHIM,1.0mm Thk

(30 mm)

1шт.

11

S6510S00F

SPRING - compression

1шт.

12

S6060S00F

SPRING SEAT

1шт.

13

S6070S00F

GASKET

Control stem cover

1шт.

These Refs. (Refs. 3, 4, 13, 20 and 23) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

14

S6050S00F

HOUSING

BODY - modulator

1шт.

15

S6240S00F

ORIFICE

Plug

1шт.

16

S6230S00F

ORIFICE

Plug

2шт.

17

S6260S00F

SCREW

CAPSCREW - socket head

8шт.

18

S6160S00F

PIN

1шт.

19

S6040S00F

SPOOL

Modulator

1шт.

20

S6030S00F

GASKET

Valve cover

1шт.

These Refs. (Refs. 3, 4, 13, 20 and 23) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

21

S6020S00F

COVER

Valve

1шт.

22

S6010S00F

SPOOL

Reducing

1шт.

23

S6180S00F

O-RING

Plug

1шт.

These Refs. (Refs. 3, 4, 13, 20 and 23) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

24

S6170S00F

PLUG

1шт.

25

S6220S00F

PLUG

6шт.
