(04-22) - 9 INCH CLUTCH PACK ASSEMBLY

Запчасти Case IH STEIGER (04-22) - 9 INCH CLUTCH PACK ASSEMBLY (04) - Drive Train

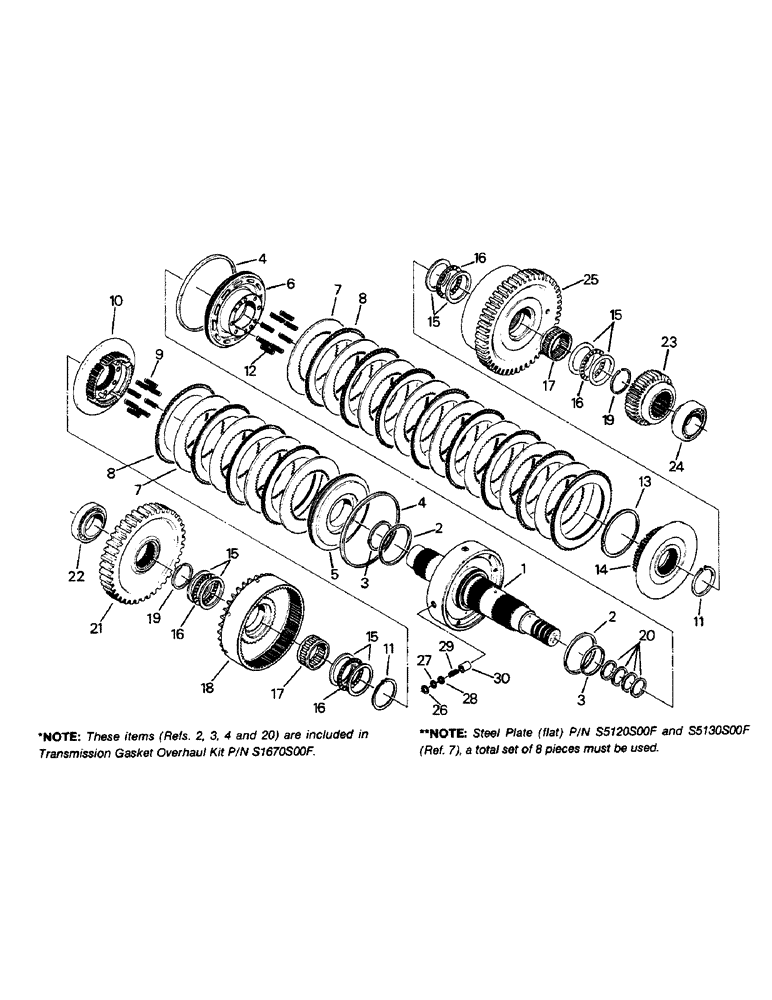

Схема запчастей Case IH STEIGER - (04-22) - 9 INCH CLUTCH PACK ASSEMBLY (04) - Drive Train
26
10
4
14
2
8
5
28
12
16
18
22
13
25
8
15
16
17
2
16
15
9
6
3
7
4
24
29
11
21
11
20
19
23
7
27
3
30
19
16
17
15
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S5000S00F

CLUTCH HOUSING

9 inch, Includes: Ref. 1 - 30

1шт.

1

S5900S00F

SHAFT ASSY.

Drum

1шт.

2

S5520S00F

RING

Piston

2шт.

These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

3

S5510S00F

RING

Piston

2шт.

These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

4

S4430S00F

RING

Sealing

2шт.

These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

5

S5760S00F

PISTON

Clutch

1шт.

6

S5180S00F

PISTON

Clutch

1шт.

7

S5120S00F

CLUTCH DISC

CLUTCH DISK PLATE - steel (Flat 2.6 MM)

1шт.

Steel Plate (flat) P/N S5120S00F and S5130S00F (Ref. 7), a total set of 8 pieces must be used.

1шт.

S5130S00F

CLUTCH DISC

CLUTCH DISK PLATE - steel (Flat 2.4 MM)

1шт.

Steel Plate (flat) P/N S5120S00F and S5130S00F (Ref. 7), a total set of 8 pieces must be used.

1шт.

8

S5570S00F

LARGE PLATE

PLATE, LARGE Faced

8шт.

9

S5550S00F

SPRING

Return

8шт.

10

S5850S00F

HUB

Clutch

1шт.

11

S5100S00F

RING, SNAP

RING SNAP

2шт.

12

S5540S00F

SPRING

Return

8шт.

13

S5490S00F

RING

Retaining

1шт.

14

S5840S00F

GASKET

HUB - clutch

1шт.

15

S5230S00F

BEARING WASHER

Bearing thrust

8шт.

16

S5050S00F

THRUST BEARING

Thrust

4шт.

17

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

2шт.

18

S5080S00F

PINION

GEAR - clutch

1шт.

19

S5040S00F

RING

Retaining

2шт.

20

S3070S00F

RING

Sealing

4шт.

These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

21

S5060S00F

PINION

GEAR - input

1шт.

22

1-1584

BEARING CUP,4.4375" OD x 1.1875"

CUP - bearing

1шт.

90-1319T1

ROLLER BEARING,2.5" ID x 1.1875"

1шт.

23

S5270S00F

PINION

GEAR

1шт.

24

90-6579T1

BEARING CUP

CUP - bearing

1шт.

1-1583

ROLLER BEARING,2.625" ID x 1.1875"

CONE - bearing

1шт.

25

S5280S00F

GEAR

Clutch

1шт.

26

SM9222160

RING, SNAP

RING SNAP

2шт.

27

S3220S00F

SHIM

1шт.

28

S3230S00F

SHIM

1шт.

29

S3210S00F

SPRING

Valve

2шт.

30

S3200S00F

DRAIN VALVE

2шт.
