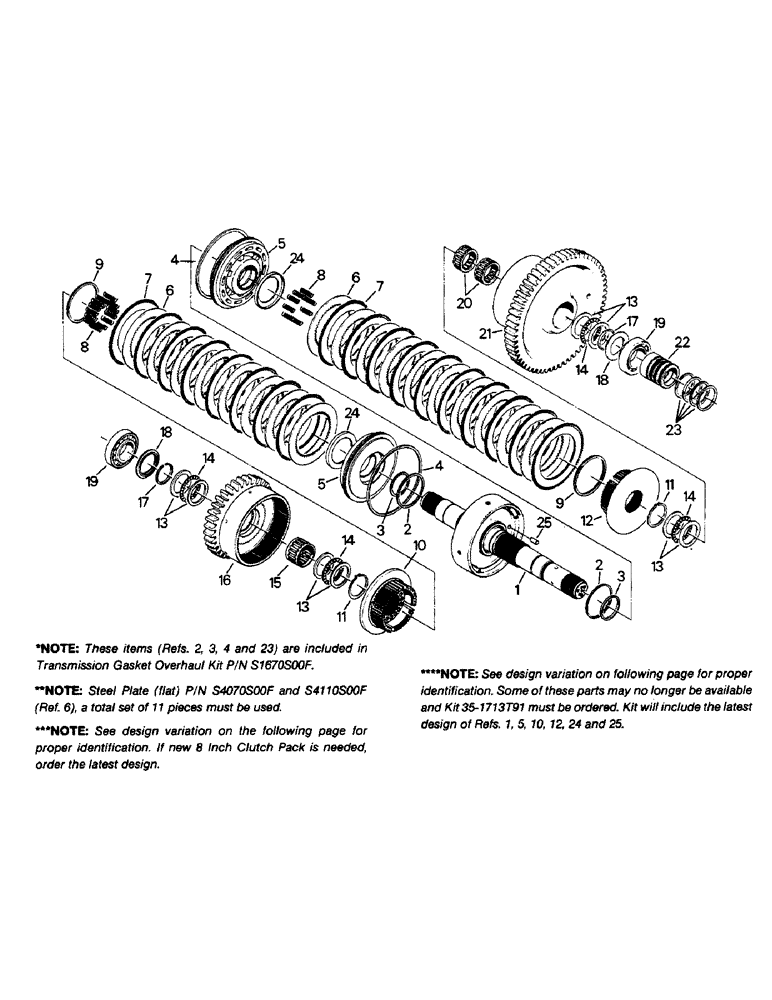

Запчасти Case IH STEIGER (04-20) - 8 INCH CLUTCH PACK ASSEMBLY (04) - Drive Train
№
Артикул
Название
Примечание
Количество
S4000S00H
CLUTCH ASSEMBLY
8 inch, Includes: Ref 1 - 23
1шт.
See design variation on the following figure for proper identification. If new 8 inch Clutch Pack is needed, order the latest design.
1шт.
S4000S02H
CLUTCH ASSEMBLY
(S4000S00H), Includes: Ref. 1 - 23
1шт.
Old part can be used on all tractors, new part should be used when stock is depleted.
1шт.
See design variation on the following figure for proper identification. If new 8 inch Clutch Pack is needed, order the latest design.
1шт.
1
S4900S00F
DRUM SHAFT
SHAFT ASSEMBLY - drum
1шт.
Old part must be used prior to serial number break. New part will work after serial number break only.
1шт.
See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.
1шт.
S4900S02F
SHAFT ASSY.
Drum
1шт.
Old part must be used prior to serial number break. New part will work after serial number break only.
1шт.
See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.
1шт.
2
S4420S00F
RING
Piston
2шт.
These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.
1шт.
3
S4410S00F
RING
Piston
2шт.
These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.
1шт.
4
S4430S00F
RING
Sealing
2шт.
These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.
1шт.
5
S4180S00F
PISTON
Clutch
2шт.
Old part must be used prior to serial number break. New part will work after serial number break only.
1шт.
See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.
1шт.
S4180S02F
PISTON
Clutch
1шт.
Old part must be used prior to serial number break. New part will work after serial number break only.
1шт.
See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.
1шт.
Steel Plate (flat) P/N S4070S00F and S4110S00F (Ref. 6), a total set of 11 pieces must be used.
1шт.
S4110S00F
CLUTCH DISC,2.1mm Thk
CLUTCH DISK PLATE - steel (Flat 2.1 MM)
1шт.
Steel Plate (flat) P/N S4070S00F and S4110S00F (Ref. 6), a total set of 11 pieces must be used.
1шт.
7
S4080S00F
LARGE PLATE
PLATE, LARGE PLATE - faced
11шт.
8
S4440S00F
SPRING
SPRING - return
22шт.
9
S4390S00F
RING, SNAP
RING SNAP Retaining
2шт.
10
S4850S00H
HUB
Clutch
1шт.
Old part must be used prior to serial number break. New part will work after serial number break only.
1шт.
See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.
1шт.
S4100S01H
HUB
Clutch
1шт.
Old part must be used prior to serial number break. New part will work after serial number break only.
1шт.
See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.
1шт.
11
S2100S00F
RING, SNAP
RING SNAP
2шт.
12
S4840S00H
HUB ASSY.
Clutch
1шт.
Old part must be used prior to serial number break. New part will work after serial number break only.
1шт.
See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.
1шт.
S4380S01H
HUB
Clutch
1шт.
Old part must be used prior to serial number break. New part will work after serial number break only.
1шт.
See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.
1шт.
13
S2200S00F
BEARING WASHER
Bearing thrust
8шт.
14
S2230S00F
BEARING
Thrust
4шт.
15
S2210S00F
BEARING, ROLLER
Needle
1шт.
16
S4210S00F
PINION
GEAR - output
1шт.
17
S2240S00F
RING, SNAP
RING SNAP Retaining
2шт.
18
S4040S00F
SPACER
Bearing
2шт.
19
1-1584
BEARING CUP,4.4375" OD x 1.1875"
Bearing
2шт.
90-1319T1
ROLLER BEARING,2.5" ID x 1.1875"
2шт.
20
S2030S00F
BEARING, ROLLER
Needle
2шт.
21
S4170S00F
PINION
GEAR - output
1шт.
22
S4160S00F
SLEEVE
CARRIER - piston ring
1шт.
24
S4530S01F
LARGE PLATE
PLATE, LARGE Compression (Latest design only)
2шт.
25
S4680S02F
SPECIAL NUT
PIN - guide, 11 MM dia.
1шт.
See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.
1шт.
