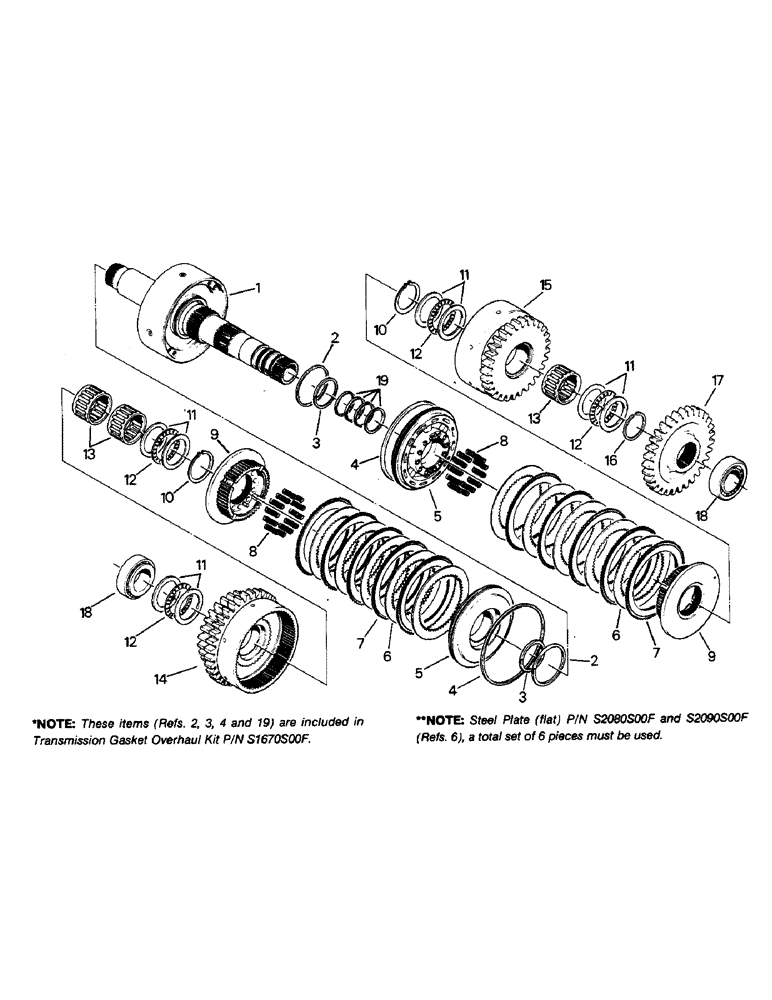

Запчасти Case IH STEIGER (04-19) - 7 INCH CLUTCH PACK ASSEMBLY, SECOND (04) - Drive Train

S3000S00H

ASSEMBLY

CLUTCH PACK ASSEMBLY - 7 inch, Includes: Ref. 1 - 19

1шт.

1

S3900S00F

DRUM SHAFT

SHAFT ASSEMBLY - drum

1шт.

2

S2620S00F

RING

Piston

2шт.

These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

3

S2610S00F

RING

Piston

2шт.

These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

4

S2630S00F

RING

Sealing

2шт.

These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

5

S2180S00F

PISTON

Clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK PLATE - steel (Flat 2.4 MM)

1шт.

Steel Plate (flat) P/N S2080S00F and S2090S00F (Ref. 6), a total set of 6 pieces must be used.

1шт.

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK PLATE - steel (Flat 2.1 MM)

1шт.

Steel Plate (flat) P/N S2080S00F and S2090S00F (Ref. 6), a total set of 6 pieces must be used.

1шт.

7

S2050S00F

LARGE PLATE

PLATE, LARGE Faced

6шт.

8

S2640S00F

SPRING

Piston return

24шт.

9

S2850S00H

HUB

Clutch

2шт.

10

S2100S00F

RING, SNAP

RING SNAP

2шт.

11

S2200S00F

BEARING WASHER

Bearing thrust

8шт.

12

S2230S00F

BEARING

Thrust

4шт.

13

S2210S00F

BEARING, ROLLER

BEARING - needle

1шт.

14

S3040S00F

PINION

GEAR - counter

1шт.

15

S2280S00F

PINION

GEAR - drive

1шт.

16

S2240S00F

RING, SNAP

RING SNAP RING - retaining

1шт.

17

S3030S00F

PINION

GEAR - input

1шт.

18

1-3296

BEARING CUP,3.7402" OD x 0.9252"

CUP - bearing

2шт.

1-3297

ROLLER BEARING,2.1654" ID x 1.1417"

CONE - bearing

2шт.

19

S3070S00F

RING

Sealing

4шт.

These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.
