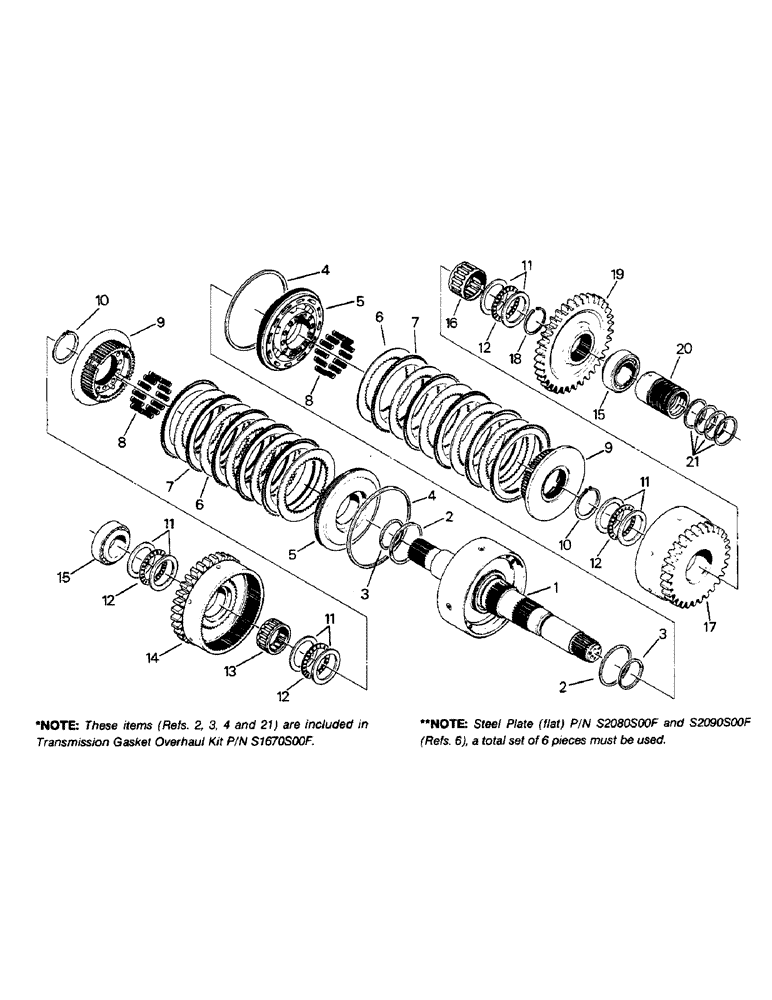

Запчасти Case IH STEIGER (04-18) - 7 INCH CLUTCH PACK ASSEMBLY, INPUT (04) - Drive Train

S2000S00H

ASSEMBLY

SPARE PART CLUTCH PACK ASSEMBLY - 7 inch input, Includes: Ref. 1 - 21

1шт.

1

S2900S00F

SHAFT ASSY.

Drum

1шт.

2

S2620S00F

RING

Piston

2шт.

These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

3

S2610S00F

RING

Piston

2шт.

These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

4

S2630S00F

RING

Sealing

2шт.

These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

5

S2180S00F

PISTON

Clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK PLATE - steel (Flat 2.4 MM)

1шт.

Steel Plate (flat) P/N S2080S00F and S2090S00F (Ref. 6), a total set of 6 pieces must be used.

1шт.

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK PLATE - steel (Flat 2.1 MM)

1шт.

Steel Plate (flat) P/N S2080S00F and S2090S00F (Ref. 6), a total set of 6 pieces must be used.

1шт.

7

S2050S00F

LARGE PLATE

PLATE, LARGE PLATE - faced

6шт.

8

S2640S00F

SPRING

Return, piston

24шт.

9

S2850S00H

HUB

Clutch

2шт.

10

S2100S00F

RING, SNAP

RING SNAP

2шт.

11

S2200S00F

BEARING WASHER

Bearing thrust

8шт.

12

S2230S00F

BEARING

Thrust

4шт.

13

S2030S00F

BEARING, ROLLER

1шт.

14

S2040S00F

PINION

GEAR - drive (32T)

1шт.

15

1-3296

BEARING CUP,3.7402" OD x 0.9252"

CUP - bearing

2шт.

1-3297

ROLLER BEARING,2.1654" ID x 1.1417"

CONE - bearing

2шт.

16

S2210S00F

BEARING, ROLLER

Needle

1шт.

17

S2280S00F

PINION

GEAR - drive (29T)

1шт.

18

S2240S00F

RING, SNAP

RING SNAP RING - retaining

1шт.

19

S2270S00F

PINION

GEAR - input (35T)

1шт.

20

S2410S00F

CARRIER FLANGE SEAL

CARRIER - piston ring

1шт.

21

S2250S00F

SEALING RING

RING - sealing

4шт.

These Refs. (Refs. 2, 3, 4 and 19) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.
