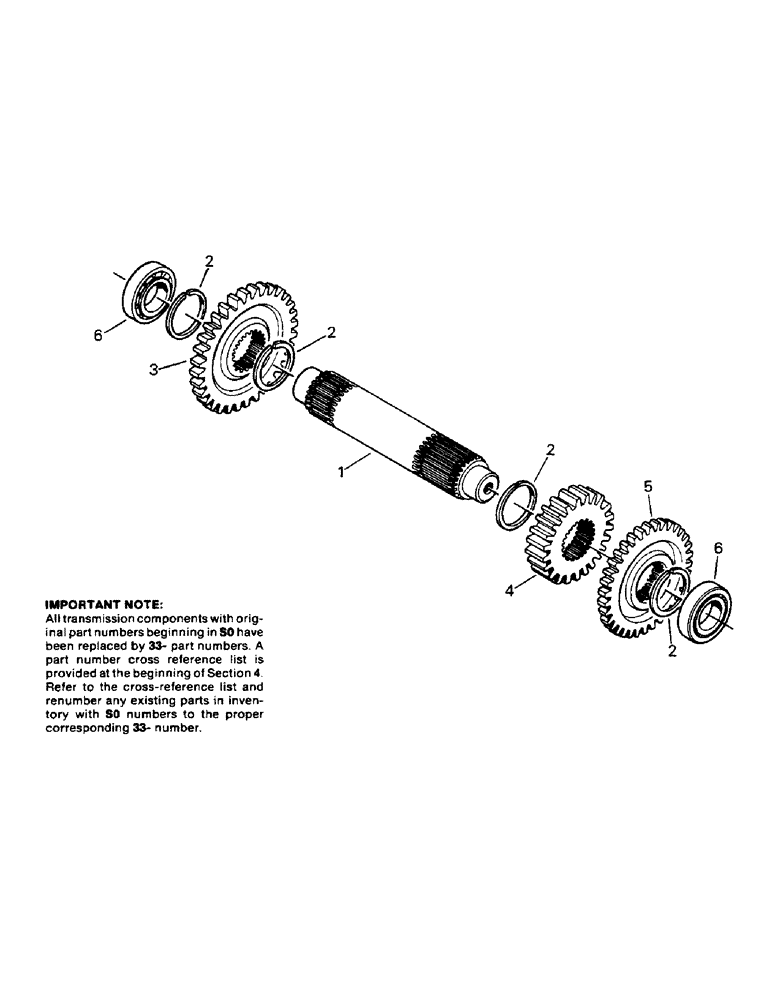

Запчасти Case IH STEIGER (04-17) - COMPOUND SHAFT (04) - Drive Train

1

33-1436T1

SHAFT

Compound (S0340S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

2

33-1416T1

RING, SNAP

RING SNAP Retaining (S00900S00F)

4шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

3

33-1415T1

PINION

GEAR - compound shaft (32T) (S0070S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

4

33-1434T1

PINION

GEAR - drive (22T) (S0320S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

5

33-1435T1

PINION

GEAR - driven (29T) (S0330S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

6

1-3297

ROLLER BEARING,2.1654" ID x 1.1417"

CONE - bearing

2шт.

1-3296

BEARING CUP,3.7402" OD x 0.9252"

CUP - bearing

2шт.
