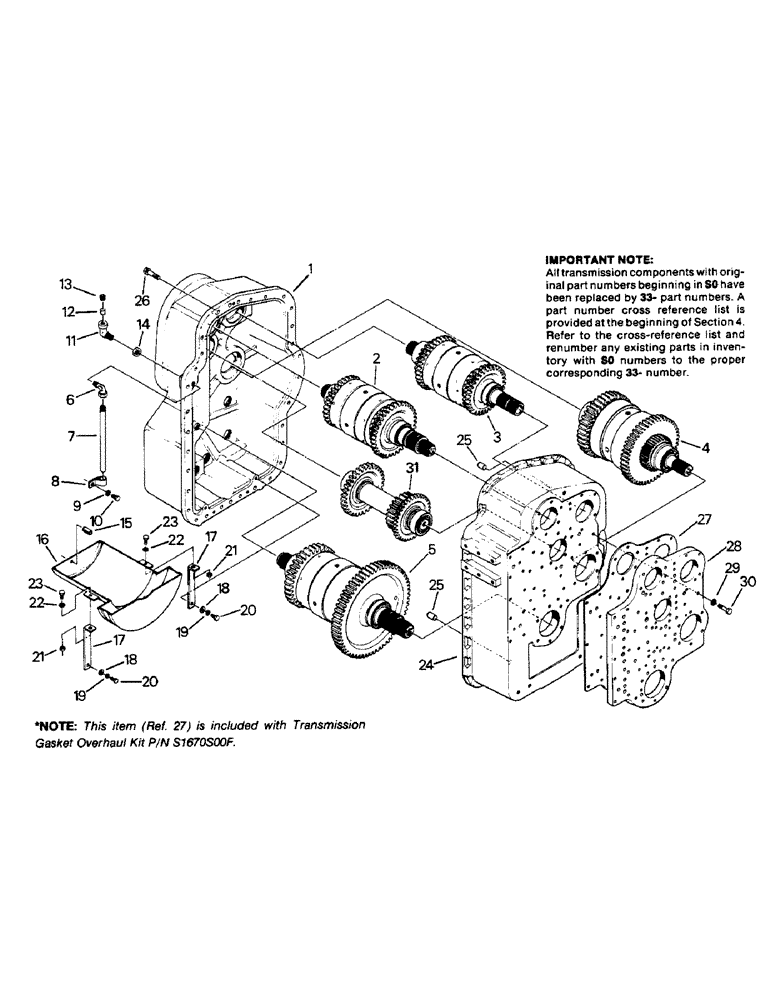

Запчасти Case IH STEIGER (04-16) - TRANSMISSION ASSEMBLY, 33-1476T1 (04) - Drive Train

1

33-1476T1

HOUSING

Fear (S0010S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

2

CLUTCH PACK ASSEMBLY - 7 inch input (See Fig. 04-18)

1шт.

3

CLUTCH PACK ASSEMBLY - 7 inch (See Fig. 04-19)

1шт.

4

CLUTCH PACK ASSEMBLY - 9 inch (See Fig. 04-22)

1шт.

5

CLUTCH PACK ASSEMBLY - 8 inch (See Fig. 04-20)

1шт.

6

33-1472T1

ELBOW

Breather tube (S0740S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

7

33-1471T1

TUBE

Breather (S0730S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

8

33-1473T1

MOUNTING CLIP

CLAMP - breather tube (S0750S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

9

SM8915142

WASHER

Lock, M12

1шт.

10

SM8124225

BOLT

CAPSCREW, M12 x 1.25 x 25 MM G-8.8

1шт.

11

33-1455T1

VENTILATION PIPE

Breather filter (S0540S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

12

33-1454T1

BREATHER

FILTER - breather (S0530S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

13

SAS99900F

PLUG

Filter element

1шт.

14

SM8911246

NUT

M16 x 1.5

1шт.

15

33-1423T1

PIN, ROLL

(S0150S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

16

33-1425T1

PAN, ENGINE OIL

PAN, OIL BAFFLE - oil (S0210S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

17

33-1424T1

STRAP

Oil baffle (S0200S00F)

2шт.

Old part must not be used in this area only. Is OK elsewhere when shown.

1шт.

18

SM8915442

WASHER

Flat, M12

2шт.

19

SM8915142

WASHER

Lock, M12

2шт.

20

SM8124225

BOLT

CAPSCREW, M12 x 1.25 x 25 MM G-8.8

2шт.

21

825-11410

NUT,M10 x 1.25, Cl 8

2шт.

22

SM8915440

WASHER

Flat, M10

2шт.

23

SM8124020

BOLT

CAPSCREW, M10 x 1.25 x 20 MM G-8.8

2шт.

24

S1400S00F

HOUSING

Front

1шт.

25

33-1467T1

DOWEL

PIN - dowel (S0660S00F)

2шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

26

SM8121240

BOLT

CAPSCREW, M12 x 1.75 x 40 MM G-8.8

30шт.

27

S1590S00F

GASKET

Oil supply plate

1шт.

This item (Ref. 27) is included with Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

28

S1580S00F

LARGE PLATE

PLATE, LARGE Oil supply

1шт.

29

SM8915140

PLATE, LOCKING

WASHER - lock, M10

7шт.

30

SM8124045

BOLT

CAPSCREW, M10 x 1.25 x 45 MM G-8.8

7шт.

31

SHAFT - compound (See Fig. 04-17)

1шт.
