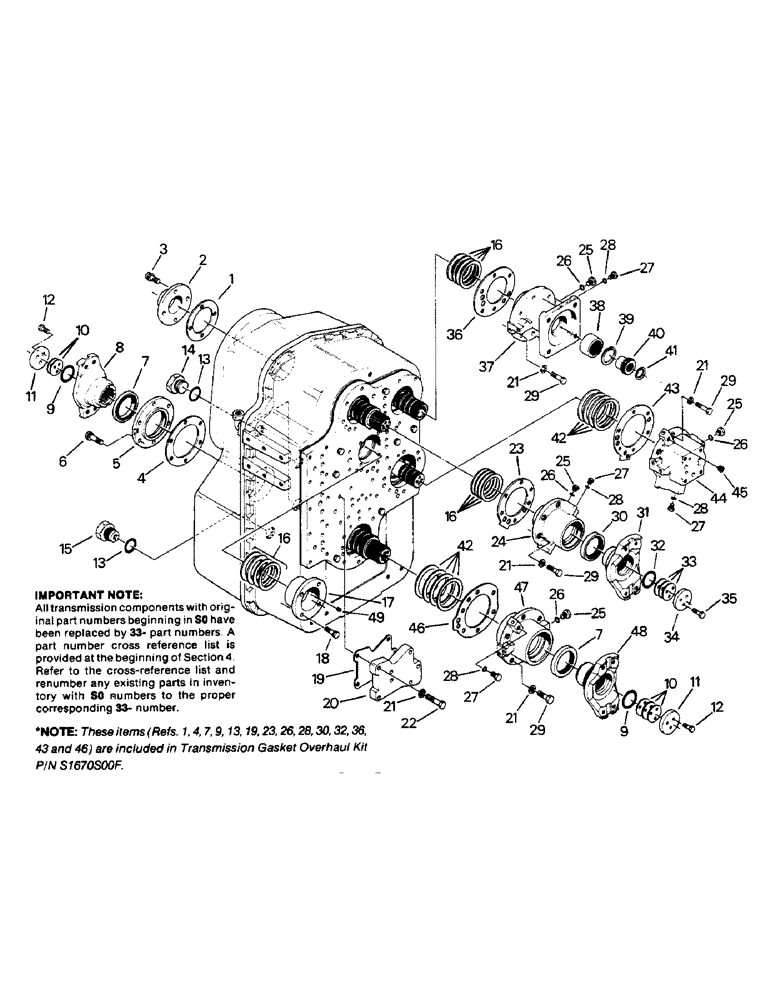

Запчасти Case IH STEIGER (04-14) - TRANSMISSION ASSEMBLY, 33-1470T1 (04) - Drive Train

1

33-1470T1

GASKET

PTO shaft cover (S0710S00F)

1шт.

These Refs. (Refs. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

2

33-1442T1

COVER

PTO shaft (Without PTO only) (S0400S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

3

SM8124230

BOLT

CAPSCREW, M12 x 1.25 x 30 G-8.8

4шт.

4

33-1417T1

GASKET

Bearing retainer

1шт.

These Refs. (Refs. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

5

33-1418T1

RETAINER

Bearing (S0110S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

6

SM8124230

BOLT

CAPSCREW, M12 x 1.25 x 30 G-8.8

6шт.

7

33-1428T1

OIL SEAL

SEAL - output shaft (S0240S00F)

2шт.

These Refs. (Refs. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

8

33-1419T1

YOKE

UNIVERSAL JOINT YOKE Output, rear (S0120S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

9

33-1422T1

O-RING

O-RING - yoke sealing (S0130S00F)

2шт.

These Refs. (Refs. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

10

33-1450T1

SHIM

Yoke (0.10 MM) (S0490S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1451T1

SHIM

SHIM - yoke (0.30 MM) (S0500S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

11

33-1432T1

WASHER

Yoke retainer (S0270S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

12

SM8134235

BOLT

CAPSCREW, M12, 1.25 x 35 G-10.9

6шт.

13

S1080S00F

O-RING

O-RING - plug

4шт.

These Refs. (Refs. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

14

S1010S00F

PLUG, DRAIN

Hex head (Includes Ref. 13)

3шт.

15

S1090S00F

PLUG

Magnetic (Includes Ref. 13)

1шт.

16

33-1456T1

SHIM

Bearing (0.10 MM) (S0550S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1457T1

SHIM

Bearing (0.30 MM) (S0560S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1458T1

SHIM

Bearing (0.50 MM) (S0570S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1459T1

SHIM

Bearing (0.70 MM) (S0580S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1474T1

SHIM

Bearing (0.15 MM) (S0800S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

17

33-1437T1

RETAINER

Bearing (S0350S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

18

SM8124050

BOLT

CAPSCREW, M10 x 1.25 x 50 G-8.8

4шт.

19

S1610S00F

GASKET

Oil supply plate

1шт.

These Refs. (Refs. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

20

S1600S00F

LARGE PLATE

PLATE, LARGE Oil supply

1шт.

21

SM8915140

PLATE, LOCKING

WASHER - lock, M10

31шт.

22

SM8124070

BOLT

CAPSCREW, M10 x 1.25 x 70 G-8.8

7шт.

23

33-1440T1

GASKET

Oil supply cover (S0380S00F)

1шт.

These Refs. (Refs. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

24

33-1441T1

HOUSING

COVER - oil supply (S0390S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

25

S1390S00F

PLUG

Oil port (Includes Ref. 26)

8шт.

26

S1320S00F

O-RING

Plug

8шт.

These Refs. (Refs. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

27

S1030S00F

PLUG

Oil port (Includes Ref. 28)

5шт.

28

S1040S00F

O-RING

O-RING - plug

5шт.

These Refs. (Refs. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

29

SM8124060

BOLT

CAPSCREW, M10 x 1.25 x 60 MM G-8.8

24шт.

30

33-1412T1

OIL SEAL

Input yoke (S0030S00F)

1шт.

These Refs. (Refs. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

31

33-1409T1

LINKAGE YOKE

Input (S0020S00H)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

32

33-1414T1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

Yoke sealing (S0060S00F)

1шт.

These Refs. (Refs. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33

33-1464T1

SHIM

Bearing (0.10 MM) (S0630S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1465T1

SHIM

Bearing (0.30 MM) (S0640S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1466T1

SHIM

Bearing (0.70 MM) (S0650S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

34

33-1413T1

WASHER

Yoke retainer (S0040S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

35

SM8134035

BOLT

CAPSCREW, M10 x 1.25 x 35 MM G-10.9

3шт.

36

33-1468T1

GASKET

Pump support (S0670S00F)

1шт.

These Refs. (Refs. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

37

33-1443T1

SUPPORT

Oil pump (S0430S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

38

33-1444T1

COUPLING

Pump adapter (S0450S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

39

33-1445T1

RING, SNAP

RING SNAP (S0460S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

40

33-1448T1

ADAPTER

Pump drive (S0480S00G)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

41

33-1446T1

RING, SNAP

RING SNAP (S0460S00G)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

42

33-1460T1

SHIM

Bearing (0.10 MM) (S0590S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1461T1

SHIM

Bearing (0.30 MM) (S0600S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1462T1

SHIM

Bearing (0.50 MM) (S0610S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1463T1

SHIM

Bearing (0.70 MM) (S0620S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1475T1

SHIM

Bearing (0.15 MM) (S0810S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

43

33-1433T1

GASKET

Clutch collector (S0300S00F)

1шт.

These Refs. (Refs. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

44

33-1438T1

CLUTCH

COLLECTOR - clutch (S0360S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

45

STX99700F

PLUG

1шт.

46

33-1426T1

GASKET

Bearing retainer (S0220S00F)

1шт.

These Refs. (Refs. 1, 4, 7, 9, 13, 19, 23, 26, 28, 30, 32, 36, 43 and 46) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

47

33-1427T1

BEARING CARRIER

RETAINER - bearing (S0230S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

48

33-1429T1

YOKE

UNIVERSAL JOINT YOKE Output, rear (S0250S00H)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

49

33-1439T1

PLUG

Orifice (S0370S00F)

2шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.
