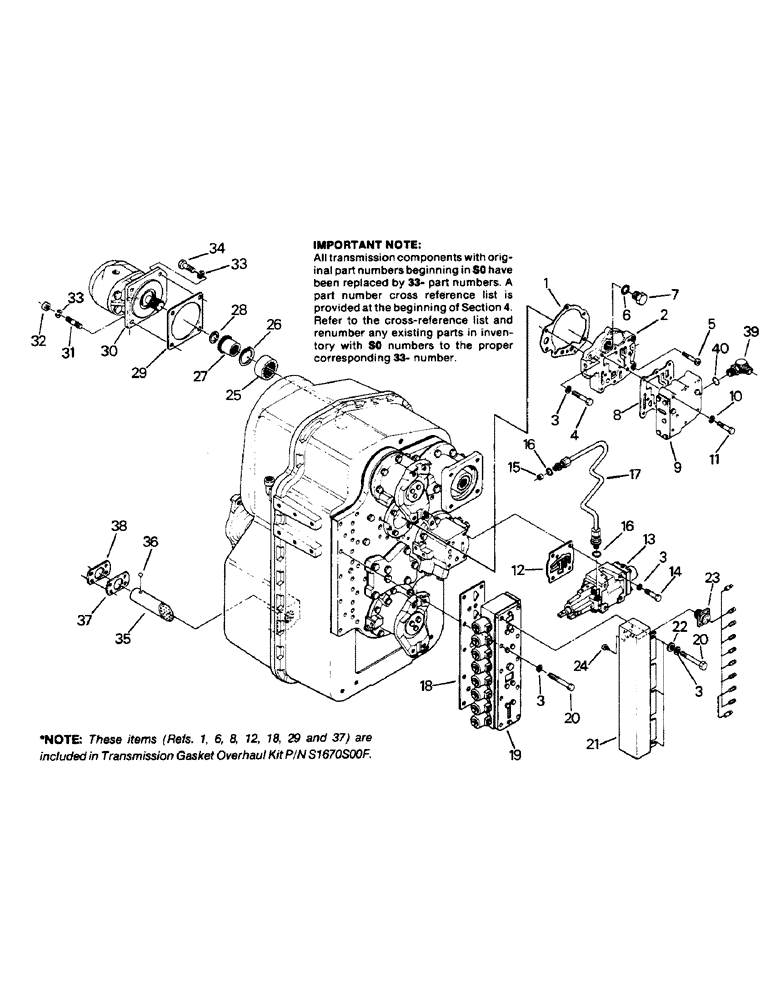

Запчасти Case IH STEIGER (04-13) - TRANSMISSION ASSEMBLY, S1160S00F (04) - Drive Train

1

S1160S00F

GASKET

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

2

S1170S00F

LARGE PLATE

PLATE, LARGE Ditch Plate

1шт.

3

SM8915140

PLATE, LOCKING

WASHER - lock, M10

3шт.

4

SM8124070

BOLT

CAPSCREW, M10 x 1.25 x 70 MM G-8.8

3шт.

5

S1050S00F

SCREW

CAPSCREW - socket head

3шт.

6

S1200S00F

O-RING

O-RING - plug

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

7

S1210S00F

PLUG

(Includes Ref. 6)

1шт.

8

S1150S00F

GASKET

Regulator valve

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

9

VALVE ASSEMBLY - regulator (See Fig. 04-24)

1шт.

10

SM8915138

WASHER

Lock, M8

8шт.

11

SM8120865

BOLT

CAPSCREW, M8 x 1.25 x 65 MM G-8.8

8шт.

12

S1140S00F

GASKET

Clutch control

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

13

CONTROL ASSEMBLY - clutch (See Fig. 04-23)

1шт.

14

SM8124085

BOLT

CAPSCREW, M10 x 1.25 x 85 MM G-8.8

4шт.

15

S1020S00F

FILTER

SCREEN - filter

1шт.

16

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

17

S1650S00F

TUBE

Clutch

1шт.

18

S1200S00F

O-RING

Range selector valve

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

19

VALVE ASSEMBLY - range selector (See Fig. 04-26)

1шт.

20

SM8124003

BOLT

CAPSCREW, M10 x 1.25 x 115 MM G-8.8

10шт.

21

S1230S00F

TERMINAL BOX

COVER - junction box

1шт.

22

SM8915440

WASHER

Flat, M10

10шт.

23

S1300S00F

CONTAINER

HARNESS - solenoid

1шт.

24

S1240S00F

TAPPING SCREW

4шт.

25

33-1452T1

COUPLING

Pump (S0510S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

26

33-1445T1

RING, SNAP

RING SNAP (S0460S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

27

33-1453T1

ADAPTER

Pump (S0520S00F)

1шт.

Error correction only.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

28

33-1447T1

RING, SNAP

RING SNAP (S0470S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

29

33-1469T1

GASKET

Pump (S0690S00F)

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

Duplicate or identical parts - renumber all stock as indicated.

1шт.

30

PUMP ASSEMBLY - lube (See Fig. 04-25)

1шт.

31

SM8267430

STUD

M14 x 1.5 x 30 MM G-8.8

2шт.

32

SM8911244

NUT

M14 x 1.5

2шт.

33

SM8915144

PLATE, LOCKING

WASHER - lock, M14

2шт.

34

SM8124440

BOLT

CAPSCREW, M14 x 1.5 x 40 G-8.8

2шт.

35

S1520S00F

PIPE

TUBE - suction

1шт.

36

S14701960

BALL,3.968mm OD

Steel

1шт.

37

S1620S00F

GASKET

Suction tube

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

38

S1700S00F

LARGE PLATE

PLATE, LARGE PLATE - suction tube retainer

1шт.

39

31-479

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1-5/16-12 O-ring boss x 1-5/16-12 JIC 37 degree male (Includes Ref. 40)

1шт.

40

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.
