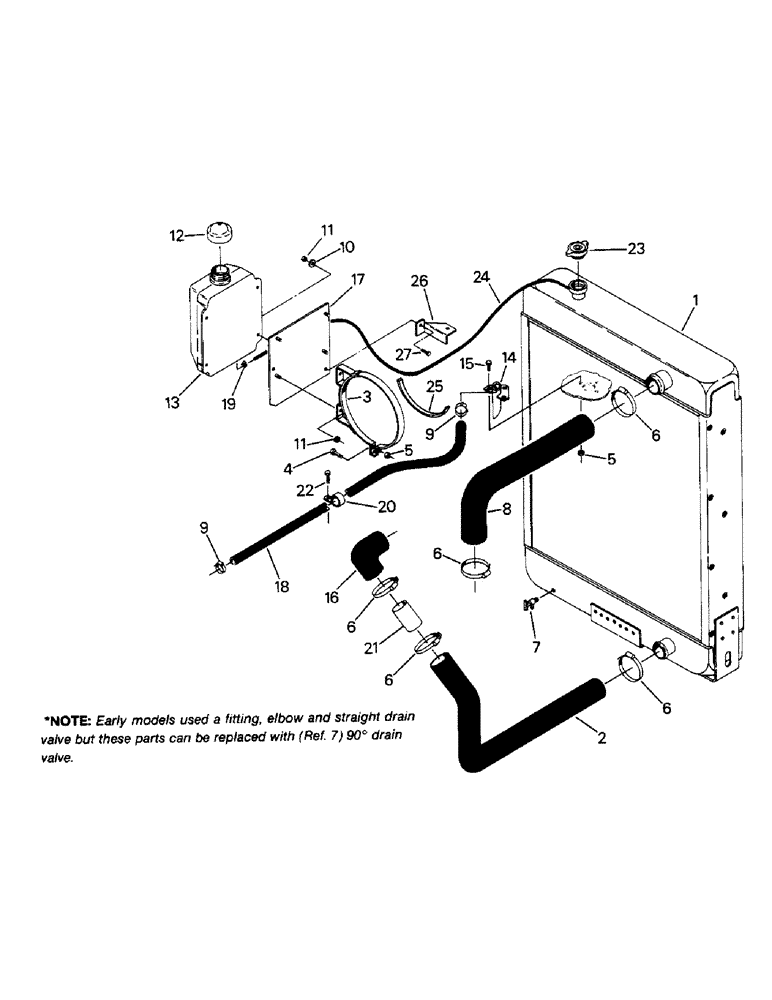

Запчасти Case IH STEIGER (04-11) - RADIATOR AND HOSES (04) - Drive Train

1

90-6952T91

RADIATOR

Cooling, Puma & 9110 (90-6623T91) (Includes refs. 23 and 24)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

90-6905T91

RADIATOR

Wildcat & 9130, includes Refs. 23-24

1шт.

2

31-2482

RADIATOR HOSE,2.00" ID x 17.82"

Lower

1шт.

3

90-6241T1

CLAMP

Mounting (Includes Refs. 4 and 5)

2шт.

4

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

CAPSCREW, 5/16 UNC x 1-3/4 G-5

2шт.

5

19-508

LOCK NUT

Lock, 5/16 UNC G-B

5шт.

6

32-24

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

Hose, 2 x 3 inch

5шт.

7

31-159

COCK, DRAIN

VALVE - radiator drain, 1/4 NPT

1шт.

Early models used a fitting, elbow and straight drain valve but these parts can be replaced with (Ref. 7) 90° drain valve.

1шт.

8

31-2483

RADIATOR HOSE,2.25" ID x 14.85"

Upper

1шт.

9

32-245

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP - hose, 1 x 2 inch

2шт.

10

19-223

WASHER,1/4"

Flat, 1/4

4шт.

11

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

8шт.

12

60-4241T1

FILLER CAP

Vented, overflow tank

1шт.

13

90-6320T1

TANK

Overflow, radiator

1шт.

14

60-4550T1

TUBE,1.77, 1.77" Length

SPARE PART A/C aspirator

1шт.

15

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

3шт.

16

33-1161T1

HOSE

Elbow (33-1161T1)

1шт.

17

90-6272T2

BRACKET

Tank mounting

1шт.

18

31-1508

HOSE,1.00" ID x 51.75"

HOSE, 1.00" ID x 51.75"

1шт.

19

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

1/4 x 5/8

1шт.

20

31-1348

CLAMP

Hose (31-1348)

2шт.

21

90-6575T2

TUBE,2 mm OD x 3 mm L

Hose connector

1шт.

22

NAP

CAPSCREW, 3/8 UNC x 1-1/2 G-5

1шт.

23

90-6633T1

CAP

Radiator

1шт.

24

31-1260

HOSE,0.25" ID x 57.00"

Radiator over flow

1шт.

25

90-6834T1

FOAM

2шт.
