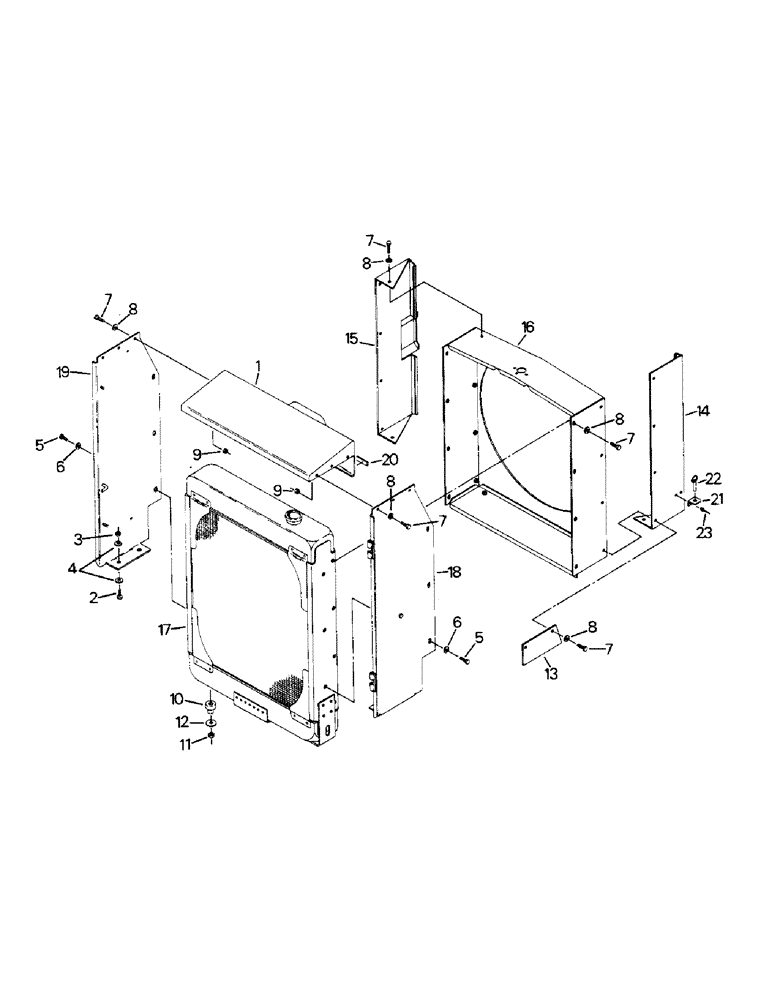

Запчасти Case IH STEIGER (04-10) - RADIATOR MOUNTING (04) - Drive Train

1

90-6133T1

HOOD

Air intake

1шт.

2

19-33

BOLT,7/16" - 14 x 1 1/4", Gr 5

CAPSCREW, 7/16 UNC x 1-1/4 G-5

4шт.

3

19-080

NUT - lock, 7/16 UNC G-B

4шт.

4

19-108

WASHER,7/16"

Flat, 7/16

8шт.

5

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

6шт.

6

19-107

WASHER

Flat, 3/8

6шт.

7

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

25шт.

8

19-700

WASHER,5/16"

Flat, 5/16

25шт.

9

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

6шт.

10

18-511

MOUNTING PARTS

MOUNT - isolator, rubber

2шт.

11

19-81

NUT,1/2"-13, G5

1/2 UNC G-B

2шт.

12

19-961

WASHER,17/32" x 1 1/2" x 1/8"

Flat, 1/2

2шт.

13

70-3183T1

GUARD

SPARE PART Foot

2шт.

14

90-6196T1

GUARD

Belt, left hand

1шт.

15

90-6613T1

GUARD

Belt, right hand

1шт.

16

90-6195T2

SHROUD

Fan (90-6195T1)

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

Use T1 version on Pumas and 9110 only. Use T2 version on Wildcats and 9130.

1шт.

17

RADIATOR (See Fig. 04-11)

1шт.

18

90-6140T2

SHROUD

Radiator, left hand (90-6140T1)

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

Use T1 version on Pumas and 9110 only. Use T2 version on Wildcats and 9130.

1шт.

19

90-6141T2

SHROUD

Radiator, right hand (90-6141T1)

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

Use T1 version on Pumas and 9110 only. Use T2 version on Wildcats and 9130.

1шт.

20

70-4525T1

SEAL

, Serial Range: Hood-radiator

2шт.

21

90-6678T1

ANGLE

SPARE PART Pin mount

1шт.

22

19-5774

PIN

Hood safety

1шт.

23

19-6205

RIVET

SPARE PART Pop, 1/8 x 3/16

2шт.
