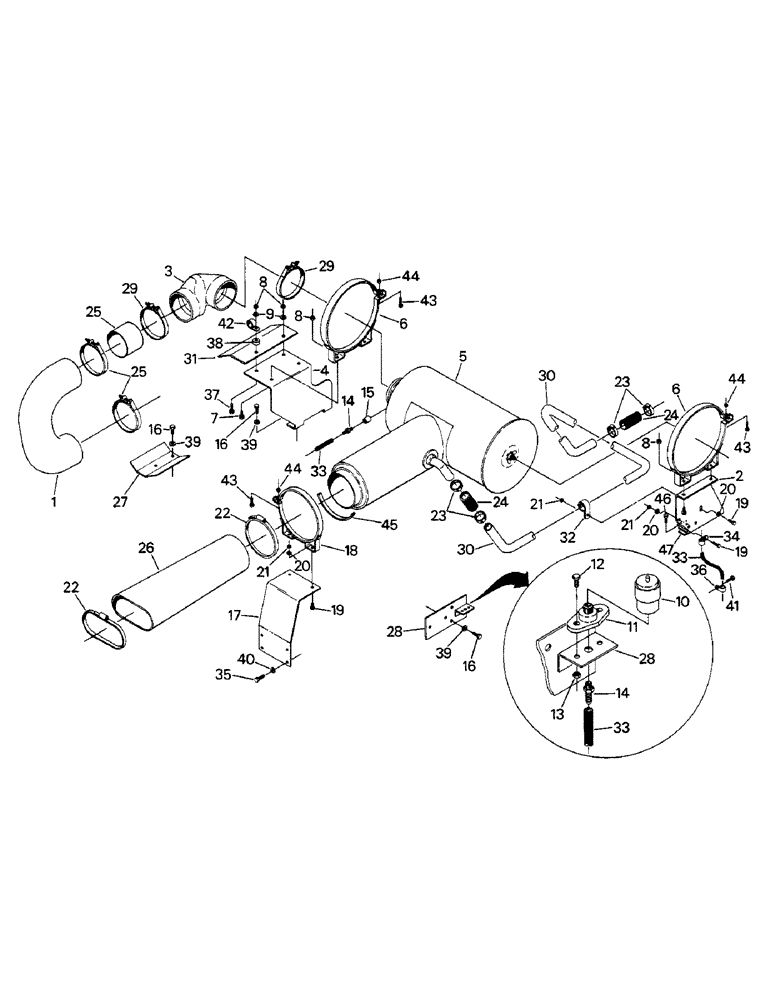

Запчасти Case IH STEIGER (04-06) - AIR INTAKE SYSTEM (04) - Drive Train

1

90-6123T1

AIR INTAKE TUBE,4" OD

Rubber, air intake to engine

1шт.

2

90-6874T1

BRACKET

Air cleaner mounting (90-6120T1) (C) *, Serial Range: -6074

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

3

90-6520T1

ELBOW

Rubber

1шт.

4

90-6118T1

BRACKET

Air cleaner mounting

1шт.

5

AIR CLEANER ASSEMBLY - engine (See Fig. 04-08)

1шт.

6

90-6121T1

BRAKE BAND

BAND CLAMP - air cleaner mounting (Includes Refs. 43 and 44)

2шт.

7

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

5шт.

8

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

6шт.

9

19-107

WASHER

Flat, 3/8

6шт.

10

29-111

DIPSTICK

INDICATOR - filter service

1шт.

11

90-4681T1

FLANGE

Indicator mounting

1шт.

12

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW, 1/4 UNC x 3/4 G-5

2шт.

13

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

2шт.

14

31-2388

FITTING

Barbed, 1/8 NPT male x 1/8 hose

2шт.

15

31-605

HYD CONNECTOR,1/8"-27 NPTF, Female

1/8 NPT female x 1/8 NPT female

1шт.

16

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

CAPSCREW, M10 x 1.5 x 20 MM

6шт.

17

90-6240T1

PLATE

SPARE PART BRACKET - air cleaner mounting

1шт.

18

90-6241T1

CLAMP

Air cleaner mounting (Includes refs. 43 and 44)

1шт.

19

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

4шт.

20

19-700

WASHER,5/16"

Flat, 3/8

4шт.

21

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

4шт.

22

31-2268

HOSE CLAMP,5.25/6.125 HD Worm, W/liner

Intake hose, 5-1/4 to 6-1/8

2шт.

23

32-26

HOSE CLAMP,#28, 1.31/2.25 Type F Worm

Aspirator tube, 1-5/16 to 2-1/4

4шт.

24

31-2594

HOSE,1.25" ID x 4.00"

Aspirator tube

2шт.

25

90-6117T1

TUBE,4" OD x 3" L

Adapter

1шт.

26

90-6004T1

INTAKE AIR HOSE,5.00" ID x 19.88", SAE 2DA712A26B36F17

1шт.

27

90-6119T1

SHIELD

Heat

1шт.

28

90-6277T1

BRACKET

Indicator mounting

1шт.

29

32-146

CLAMP,#108, 4.25"-4.56", T-Bolt

Intake elbow, 4-1/4 to 4-9/16

4шт.

30

90-6521T1

TUBE,1.25" OD

SPARE PART Aspirator

1шт.

31

90-6522T1

SHIELD

Heat

1шт.

32

31-1348

CLAMP

Tube

1шт.

33

31-2694

HOSE,4.78 mm ID x 1219.20 mm

Air Cleaner to Service Indicator

1шт.

34

22-628

CABLE CLIP

Hose

1шт.

35

40-1231

BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8

CAPSCREW - M8 x 1.25 x 16 MM

4шт.

36

18-633

COLLAR CLAMP

Hose

1шт.

37

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

CAPSCREW, 3/8 UNC x 1-1/2 G-5

1шт.

38

19-380

SPACER, 3/8 x 1-1/2 x 5/8 thk

1шт.

39

19-118

LOCK WASHER,7/16"

7/16"

6шт.

40

19-116

LOCK WASHER,5/16"

5/16"

4шт.

41

40-1087

BOLT,M6 x 20mm

CAPSCREW, M6 x 1 x 20 MM

1шт.

42

CLAMP - hose (Existing Hardware) (See Fig. 04-11)

1шт.

43

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

CAPSCREW, 5/16 UNC x 1-3/4 G-5

3шт.

44

19-508

LOCK NUT

Lock, 5/16 UNC G-B

3шт.

45

90-6834T1

FOAM

1шт.

46

40-1146

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9

CAPSCREW, M8 x 1.25 x 30 MM, Start Serial: 6074

3шт.

Quantity 1 BSN 6074

1шт.

40-1146

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9

CAPSCREW, M8 x 1.25 x 30 MM

1шт.

47

90-6873T1

SPACER

STRAP - spacer, Start Serial: 6074

1шт.
