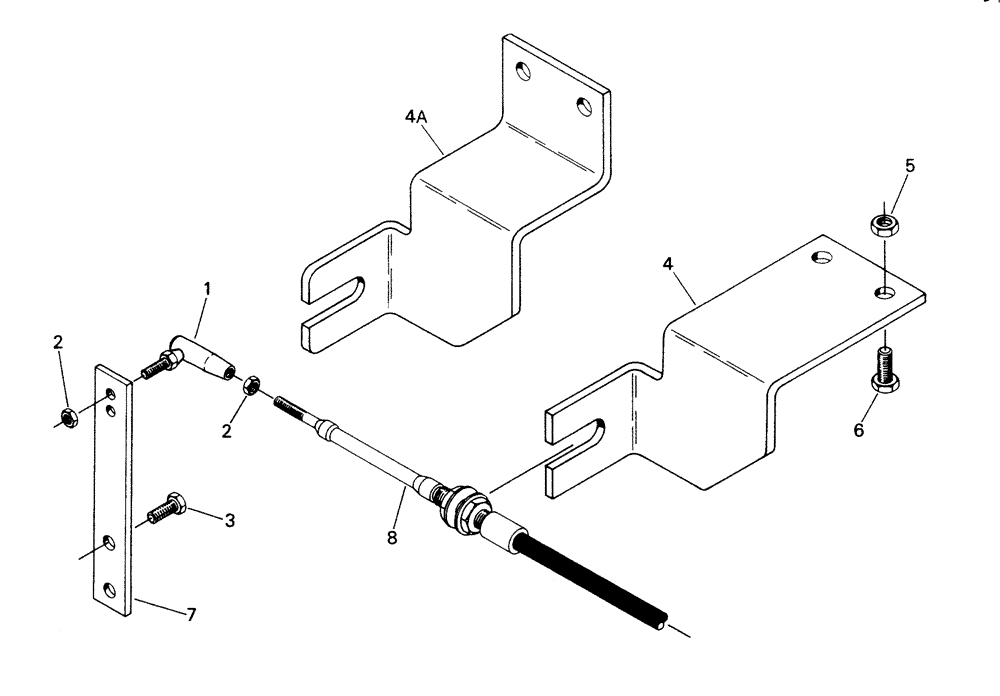

Запчасти Case IH STEIGER (04-05) - ENGINE THROTTLE CONTROLS (04) - Drive Train

1

06-1431

BALL JOINT

1шт.

2

19-308

NUT,#10 - 32

NUT, #10 UNF G-A

2шт.

3

40-1220

CAPSCREW,Hex, M6 x 12mm, Cl 10.9

CAPSCREW (METRIC)

2шт.

4

90-6506T1

BRACKET

SPARE PART THROTTLE BRACKET, Serial Range: -6074

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

4a

90-6875T1

BRACKET

THROTTLE BRACKET, Start Serial: 6074

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

5

19-077

NUT, 5/16 UNC G-B

2шт.

6

19-006

CAPSCREW, 5/16 UNC X 3/4 G-5

2шт.

7

90-6507T1

LEVER

THROTTLE LEVER

1шт.

8

60-3703T1

CABLE

THROTTLE CABLE

1шт.
