(04-04) - WATER FILTER AND MOUNTING

Запчасти Case IH STEIGER (04-04) - WATER FILTER AND MOUNTING (04) - Drive Train

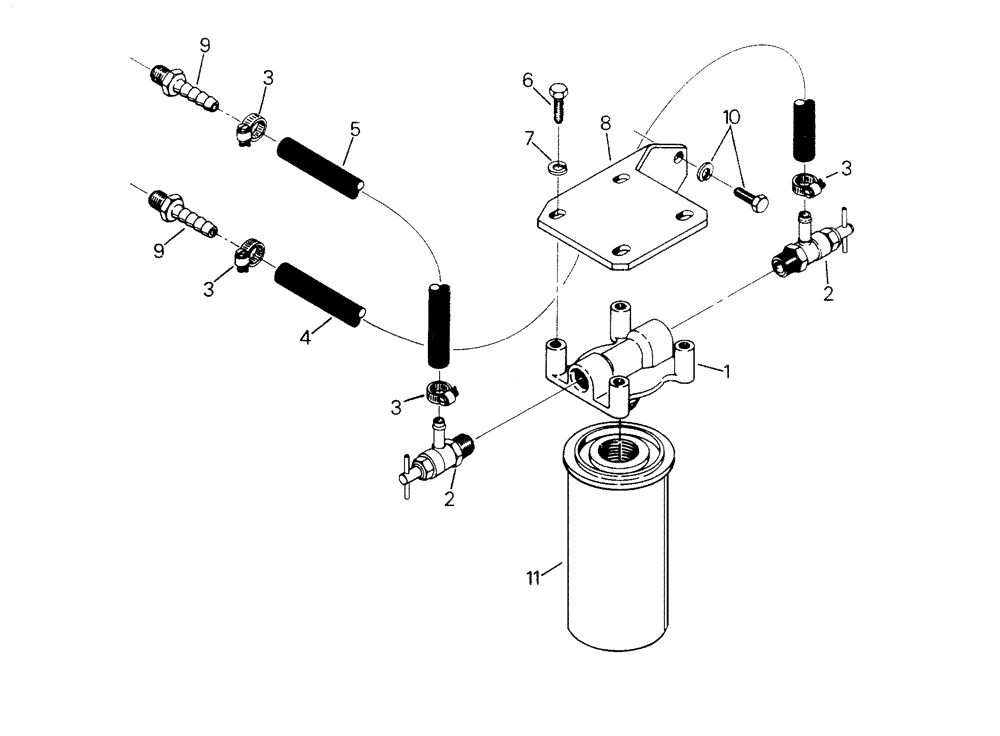

Схема запчастей Case IH STEIGER - (04-04) - WATER FILTER AND MOUNTING (04) - Drive Train
7
11
3
6
2
9
9
3
10
8
2
3
4
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

01-1612

FILTER BASE

1шт.

2

NAP

VALVE (CUMMINS PART)

2шт.

3

32-029

CLAMP

4шт.

4

32-203

HOSE

1шт.

5

31-1306

HOSE,9.5 mm ID x 406.40 mm, SAE 30R2

1шт.

6

19-017

CAPSCREW, 3/8 UNC x 1 G-5

4шт.

7

19-117

LOCK WASHER,3/8"

3/8

4шт.

8

NAP

BRACKET (CUMMINS PART)

1шт.

9

31-2195

FITTING

BARBED

2шт.

10

NAP

EXISTING HARDWARE

1шт.

11

33-1160T1

FILTER

ELEMENT* (MAINTENANCE)

1шт.

The precharged filter element should only be used when the cooling system has been flushed or drained and new coolant added.

1шт.

33-1159T1

FILTER

SPARE PART ELEMENT* (PRECHARGED)

1шт.

The precharged filter element should only be used when the cooling system has been flushed or drained and new coolant added.

1шт.
