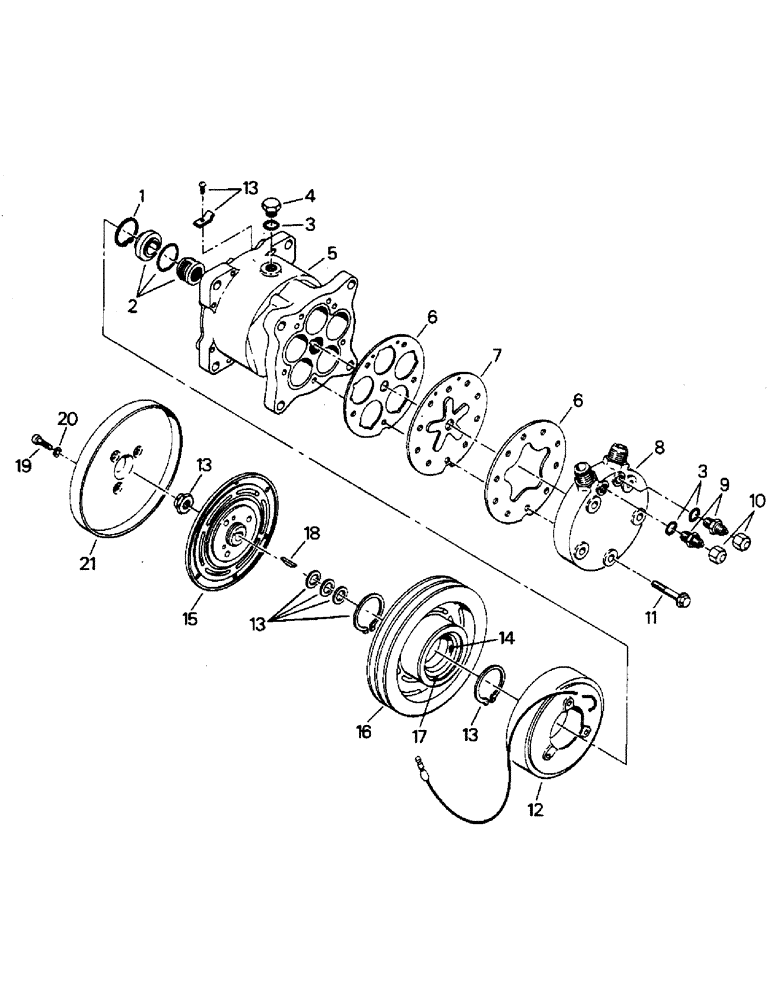

Запчасти Case IH STEIGER (03-12) - AIR CONDITIONER COMPRESSOR ASSEMBLY (03) - Climate Control

60-2921T91

COMPRESSOR

ASSEMBLY - A/C, Includes: Ref. 1 - 18

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

STEIGER PUMA 1000-SERIES POWERSHIFT, STEIGER WILDCAT 1000-SERIES POWERSHIFT, Both (11/86-8/88), Reman for New P/N 60-2921T91

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

60-3595T91

BODY

ASSEMBLY - compressor, Includes: Ref. 1 - 11 and Ref. 13

1шт.

1

1-2435

RING, SNAP

RING SNAP

1шт.

2

60-3091T1

SEAL KIT

SEAL KIT

1шт.

3

1-2437

O-RING

3шт.

4

01-2436

PLUG

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - compressor

1шт.

6

25-231

GASKET KIT

KIT

1шт.

7

60-3092T91

PLATE

SPARE PART ASSEMBLY - valve (Includes ref. 6)

1шт.

8

60-3093T1

HEAD (CYLINDER)

(Includes ref. 6)

1шт.

9

1-2440

FITTING

VALVE ASSEMBLY - service port

2шт.

10

1-2441

CAP

Service port

2шт.

11

1-2438

SCREW,Hex Flg Hd

CAPSCREW - flanged

5шт.

12

25-237

SPARE PART COIL - pulley actuating

1шт.

13

60-3095T1

SET OF WASHERS

ACCESSORY KIT

1шт.

1-3759

CLUTCH HOUSING

DRIVE ASSEMBLY - pulley and front plate, Includes: Ref 14 - 17

1шт.

14

35-1064

BEARING ASSY

KIT (Includes ref. 17)

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - clutch

1шт.

16

NSS

NOT SOLD SEPARAT

PULLEY - drive belt

1шт.

17

1-3760

BEARING

SEAL - dust

1шт.

18

60-4839T1

BUCKET TOOTH KEY

1шт.

19

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

CAPSCREW - socket head, 1/4 UNC x 1/2 G-8

3шт.

20

19-890

LOCK WASHER,Int Tooth, 1/4"

Lock, 1/4

3шт.

21

25-194

SPARE PART SHIELD - dust 1/4"-28, G5, Thk

1шт.

22

26-304

DECAL

Dust shield (Not shown)

1шт.
