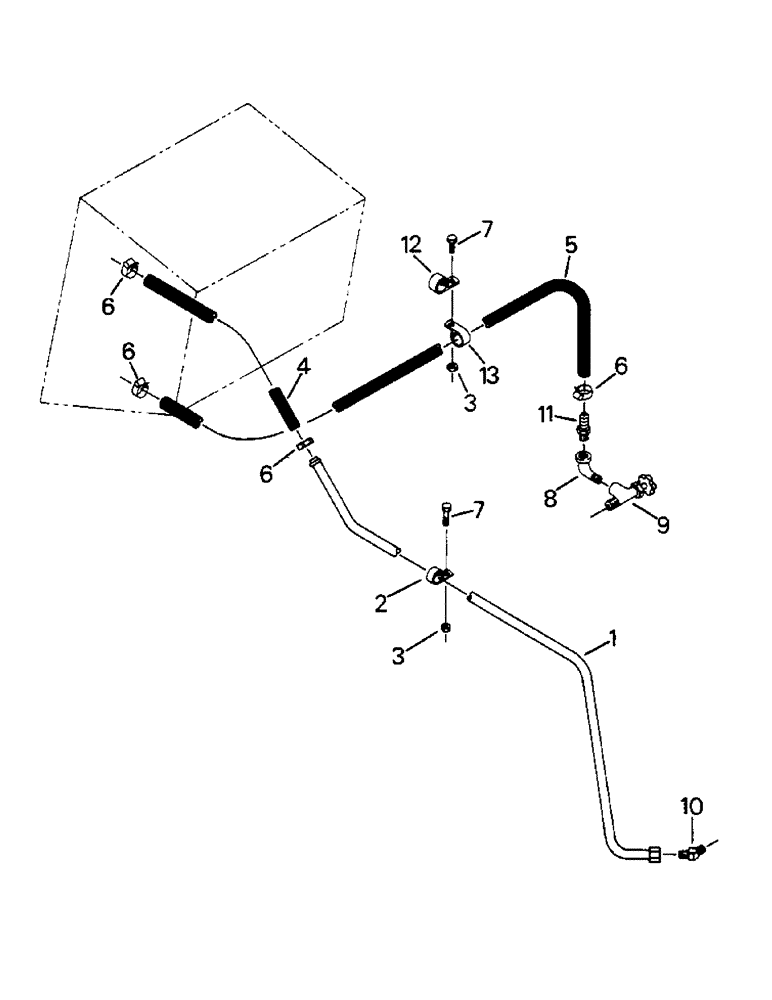

Запчасти Case IH STEIGER (03-09) - HEATER PLUMBING (03) - Climate Control

1

90-6720T2

HEATER TUBE,0.625" OD x 30.51" L

TUBE - heater

1шт.

2

31-2488

CLAMP

Tube

1шт.

3

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

2шт.

4

25-333

HEATER HOSE,0.625" ID x 12.00"

1шт.

5

31-1067

HOSE,0.63" ID x 36.00"

Heater

1шт.

6

64-218

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

9/16 x 1-1/16

4шт.

7

19-889

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

CAPSCREW, 3/8 UNC x 1/2 G-5

2шт.

8

31-219

ELBOW

Street, 3/8 NPT male x 3/8 NPT female

1шт.

9

31-1275

SHUT-OFF VALVE

1/2 NPT male x 3/8 NPT female

1шт.

10

31-365

ELBOW UNION

Union Elbow 1/2 NPT male x 7/8-14 JIC 37 degree male

1шт.

11

31-249

PIPE FITTING

Barbed, 3/8 NPT male x 5/8 hose

1шт.

12

32-343

MOUNTING CLIP

CLAMP - hose

1шт.

Error correction only.

1шт.

13

32-302

CLAMP,7/8", Insul, 3/8" Bolt

Hose

1шт.
