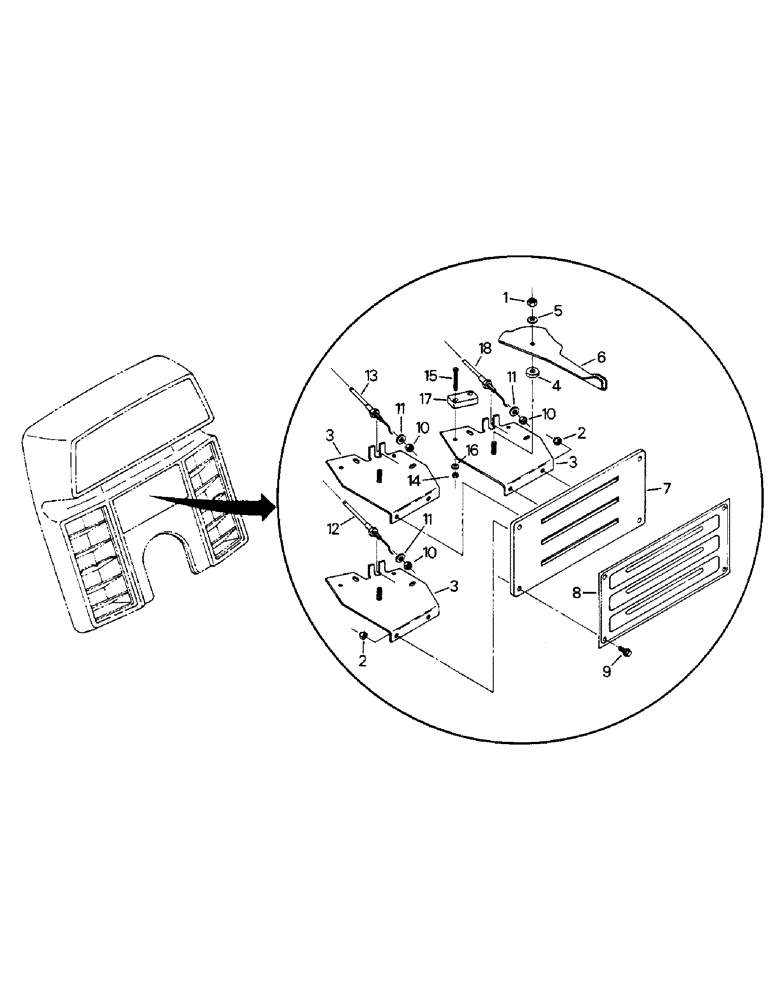

Запчасти Case IH STEIGER (03-07) - AIR CONDITIONER AND HEATER CONTROLS (03) - Climate Control

1

19-1081

LOCK NUT

Lock, 1/4 UNC G-B

3шт.

2

9411893

LOCK NUT,#10-32, GB

Lock, no. 10 UNF G-B

6шт.

3

60-4365T2

SUPPORT

BRACKET - lever mounting (60-4365T1)

3шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

4

60-4208T1

SPACER

Lever

3шт.

5

19-5924

SPRING WASHER

Spring lock, 1/4

3шт.

6

60-4529T1

LEVER

Cable actuating

3шт.

7

60-4221T1

PANEL

Climate control

1шт.

8

60-5932T1

DECAL

Control panel with (Gray interiors)

1шт.

60-4138T1

DECAL

Control panel (With tan interiors)

1шт.

9

19-6123

SELF-TAP SCREW

No. 8 UNS x 5/8

4шт.

10

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

3шт.

11

19-105

WASHER,1/4", SAE

Flat, 1/4

3шт.

12

60-4372T1

CABLE

Heater shut off valve

1шт.

13

60-4543T1

CABLE

Heater/defrost

1шт.

14

19-1034

NUT

No. 4 UNC G-A

4шт.

15

19-1035

SCREW,Rnd Hd, #4 - 40 x 1"

No. 4 UNC x 1

4шт.

16

19-6100

WASHER

Flat, No. 4

4шт.

17

20-1976T1

IGNITION SWITCH

Micro

2шт.

18

60-4781T1

CABLE

Recirculation door

1шт.
