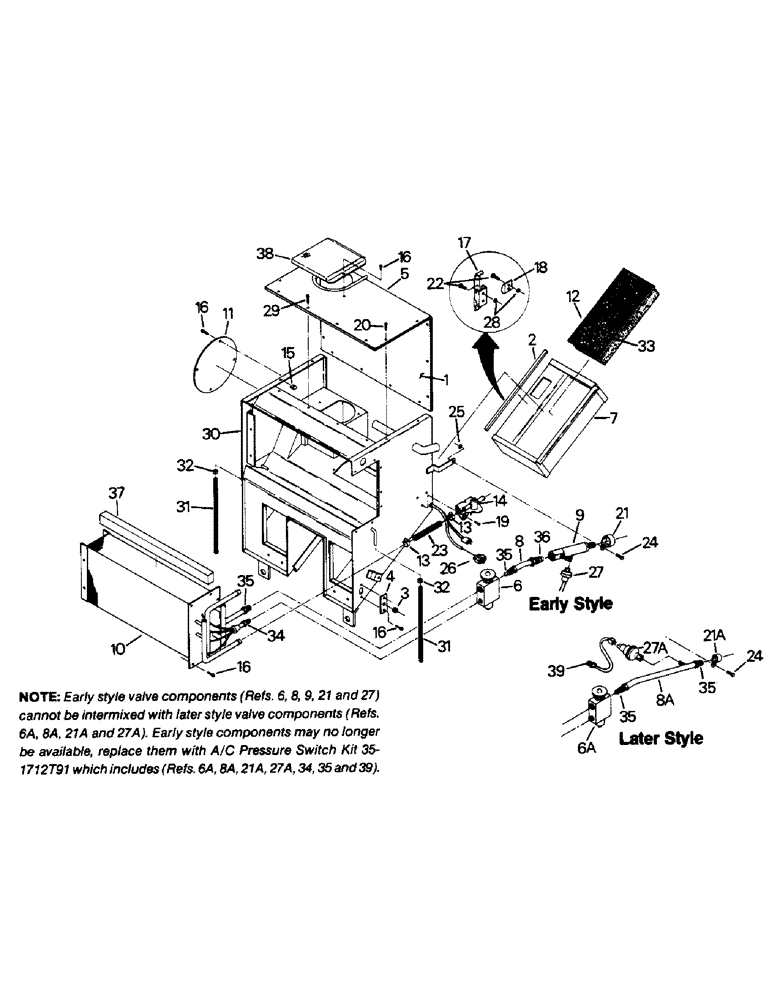

Запчасти Case IH STEIGER (03-02) - AIR CONDITIONER AND HEATER MODULE ASSEMBLY, EXTERNAL PARTS (03) - Climate Control

1

60-4499T1

FOAM

Cover insulating

1шт.

2

60-4500T1

FOAM

Filter box sealing

1шт.

3

60-4666T1

GROMMET

Actuator rod

1шт.

4

60-4768T1

LARGE PLATE

PLATE, LARGE Actuator rod adjustment

1шт.

5

60-5065T1

COVER

Module (60-4634T1)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

6

60-4087T1

VALVE

Thermal expansion (Early style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39) and Adapter Harness 20-2493T1.

1шт.

6a

60-5880T1

VALVE

Thermal expansion (Later style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39) and Adapter Harness 20-2493T1.

1шт.

7

60-4615T1

BOX

Filter housing

1шт.

8

60-4536T1

ADAPTER

Valve (Early style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39) and Adapter Harness 20-2493T1.

1шт.

8a

60-5879T1

TUBE,0.57" ID, 0.625" OD, 9.4, 1.85" Length

(Later style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39) and Adapter Harness 20-2493T1.

1шт.

9

60-4088T1

VALVE

Suction throttling (Early style only)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39) and Adapter Harness 20-2493T1.

1шт.

10

60-4042T1

COIL

Heater/evaporator

1шт.

11

60-3889T1

COVER

Blower motor

1шт.

12

60-4452T1

FILTER

1шт.

13

25-285

SQUARE NUT,Sq, 5/16"-18

CLAMP - hose, 1/2 x 7/8 inch

2шт.

14

60-2392T1

DRAIN VALVE

Shut off

1шт.

15

19-6157

STEEL SHEET NUT

Clip, U-type

14шт.

16

9419320

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

No. 10 UNS x 3/8

19шт.

17

60-4640T1

LATCH

Filter box

1шт.

18

60-4641T1

LATCH

KEEPER - latch

1шт.

19

19-867

SCREW

No. 10 UNC x 1/2

3шт.

20

9419322

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

No. 10 UNS x 3/4

14шт.

21

31-1348

CLAMP

STV valve (Early style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39) and Adapter Harness 20-2493T1.

1шт.

21a

31-2488

CLAMP

Tube (Later style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39) and Adapter Harness 20-2493T1.

1шт.

22

19-5422

SCREW,Truss Hd, #8 - 32 x 3/4"

No. 8 UNC x 3/4

3шт.

23

31-2452

HOSE,0.63" ID x 5.00"

Core to valve, 5/8 x 5 inch

1шт.

24

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

1шт.

25

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

1шт.

26

20-1977T1

HARNESS

Motor (20-1977T1)

1шт.

Old part must not be used in this area only. Is OK elsewhere when shown.

1шт.

27

60-4223T1

SWITCH

Pressure (Early style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39) and Adapter Harness 20-2493T1.

1шт.

27a

60-5881T1

PRESSURE SWITCH

Pressure (Later style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39) and Adapter Harness 20-2493T1.

1шт.

28

19-1015

SERRATED NUT

Keps, no. 8 UNC

3шт.

29

19-485

SELF-TAP SCREW

1/4 UNC x 1/2

4шт.

30

60-4456T3

HOUSING

Module (60-4456T2)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

31

31-1208

HOSE,0.38" ID x 12.00"

Drain, 3/8 x 12 inch

2шт.

32

32-29

HOSE CLAMP

7/16 x 3/4

2шт.

33

60-4948T1

SUPPORT

Filter

1шт.

34

31-1808

O-RING

O-RING - hose

1шт.

35

31-1809

O-RING

O-RING - hose

2шт.

36

31-1810

O-RING,1.78mm Thk x 17mm ID

Hose (Early style only)

1шт.

37

60-4727T1

FOAM

Coil sealing

1шт.

38

60-5796T1

SCREEN

Filter (Later models only)

1шт.
