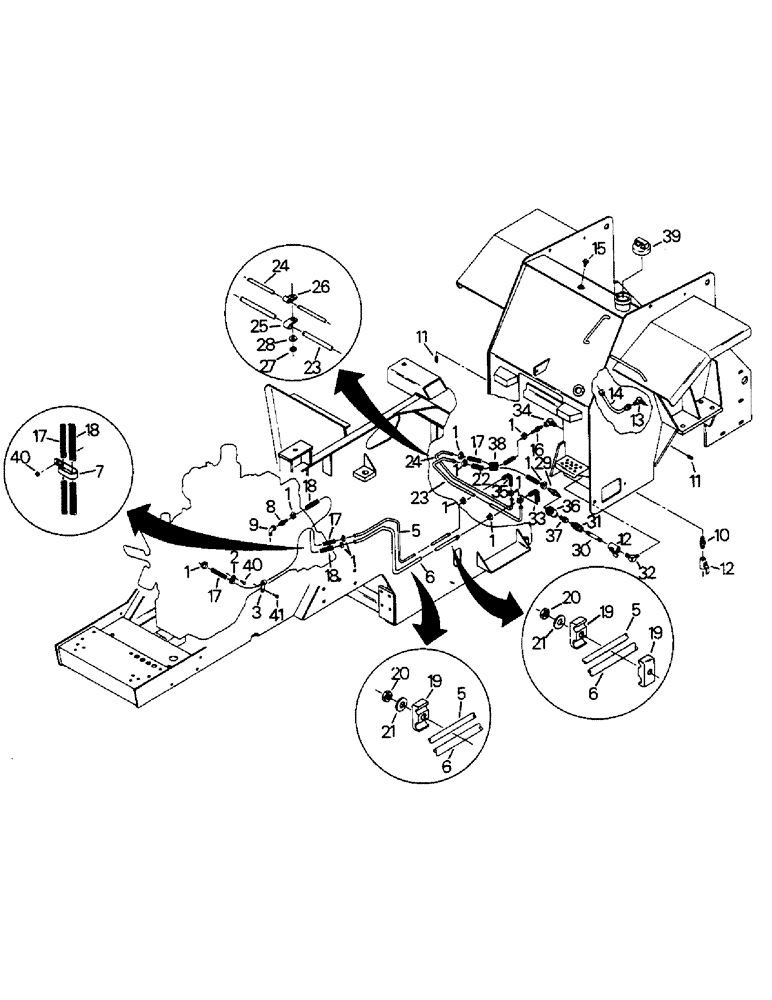

Запчасти Case IH STEIGER (07-01) - FUEL SYSTEM (02) - FUEL SYSTEM

1

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

1/4 x 5/8

12шт.

2

22-635

MOUNTING CLIP

Hose

1шт.

3

22-632

CLIP

Hose

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Nylon

1шт.

5

90-6535T1

FUEL TUBE,.25" OD

Fuel return

1шт.

6

90-6534T1

TUBE,.375" OD

SPARE PART Fuel supply

1шт.

7

31-1070

CLAMP,5/8", 3/8" Bolt, Double

Hose

1шт.

8

31-314

FITTING

Barbed, 1/4 NPT male x 3/8 hose

1шт.

9

31-211

ELBOW

1/4 NPT male x 1/4 NPT female

1шт.

10

31-345

FITTING

ADAPTER, 1/2 NPT male x 1/2 NPT male

1шт.

11

31-35

PLUG

Pipe, 1/2 NPT

3шт.

12

31-1267

SHUT-OFF VALVE

1/2 NPT female x 1/2 NPT female

2шт.

13

31-402

ELBOW,45 Degree, 3/4-14" 37 Degree x 1/2"-14, NPTF

1/2 NPT male x 3/4-16 JIC 37 degree male

2шт.

14

90-6144T1

FUEL TUBE,.5" OD

Tank, fuel crossover

1шт.

15

31-1536

BREATHER

VENT - breather, 1/2 NPT male

1шт.

16

31-1186

FITTING

Barbed, 1/4 NPT male x 1/4 hose

1шт.

17

31-1183

HOSE,6.4 mm ID x 1498.60 mm

1/4 x 59 inch

2шт.

18

32-336

HOSE

3/8 x 34 inch

1шт.

19

50-2842T1

SUPPORT

CLAMP - half

5шт.

20

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

4шт.

21

19-223

WASHER,1/4"

Flat, 1/4

4шт.

22

31-1691

FUEL HOSE

3/8 x 42 inch

1шт.

23

90-6669T1

FUEL TUBE,.375" OD

Fuel supply

1шт.

24

90-6688T1

FUEL TUBE,.25" OD

Fuel return

1шт.

25

22-1109

CLAMP

Tube

2шт.

26

31-1862

CLAMP

Tube

2шт.

27

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

2шт.

28

19-107

WASHER

Flat, 3/8

2шт.

29

31-553

CONNECTING ROD

FITTING - barbed, 1/4 NPT female x 3/8 hose

1шт.

30

31-2736

LUBE NIPPLE

Pipe, 1/2 NPT x 4-1/2

1шт.

31

31-2705

ELBOW,90 Degree, 3/8"-18 Male x 1/2"-14 Female

SPARE PART 3/8 NPT male x 1/2 NPT female

1шт.

32

31-1585

FITTING

1/2 NPT male x 1/2 NPT male

1шт.

33

32-204

HOSE

3/8 x 7

1шт.

34

31-2076

ADAPTER,90 Degree, 3/8"-18 Male x 1/4"-18 Female

ELBOW, 3/8 NPT male x 1/4 NPT female

1шт.

35

31-2691

HOSE,6.4 mm ID x 228.60 mm

7/16 x 9 inch

1шт.

36

90-6693T1

FILTER

Fuel, in line

1шт.

37

31-2704

ADAPTER,1/4"-18 Male NPTF x 3/8"-18 Female NPTF

1/4 NPT male x 3/8 NPT female

1шт.

38

50-2741T1

CONDUIT

PROTECTOR - flex guard

1шт.

39

2-3679T1

FILLER CAP

Fuel tank

1шт.

40

NAP

CAPSCREW (existing hardware)

1шт.
