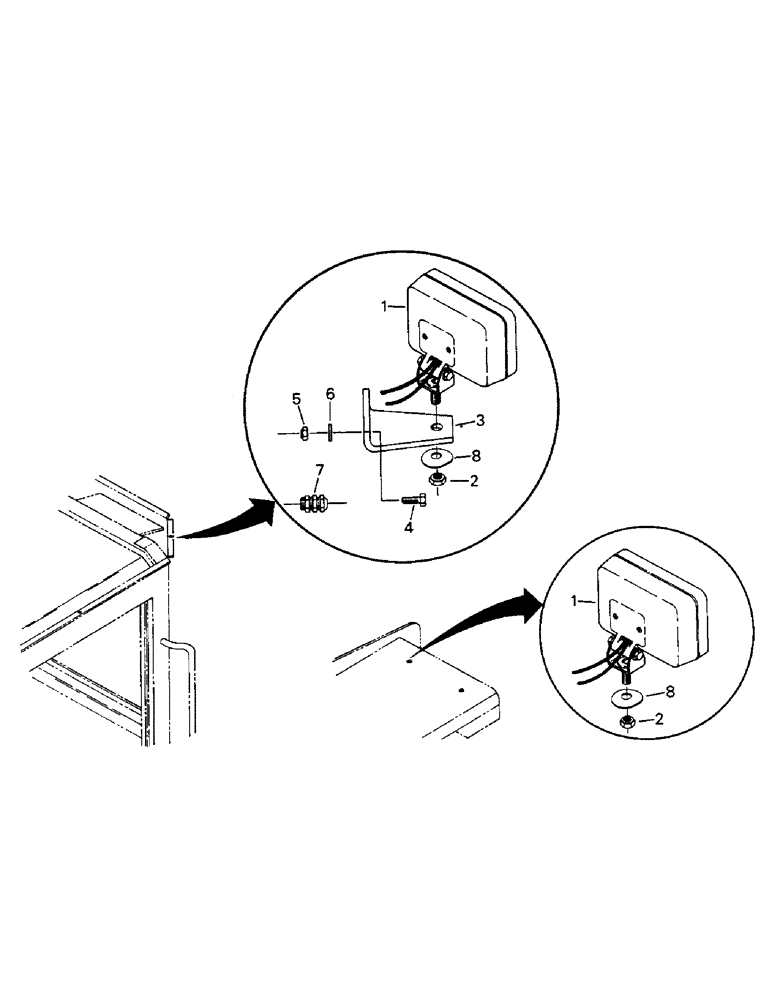

Запчасти Case IH STEIGER (10-37) - FIELD LIGHT OPTION Options & Miscellaneous

1

LIGHT ASSEMBLY - field (See Fig. 2-21)

4шт.

2

19-653

LOCK NUT

Lock, 1/2 UNC G-A

4шт.

3

60-4336T1

SUPPORT

BRACKET - light mount

2шт.

4

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

CAPSCREW, 1/4 UNC x 1 G-5

4шт.

5

19-1081

LOCK NUT

Lock, 1/4 UNC G-A

4шт.

6

19-105

WASHER,1/4", SAE

Flat, 1/4

4шт.

7

60-2924T1

CONNECTING ROD

CONNECTOR - electrical

2шт.

8

22-367

SPRING WASHER

Curved spring

4шт.
