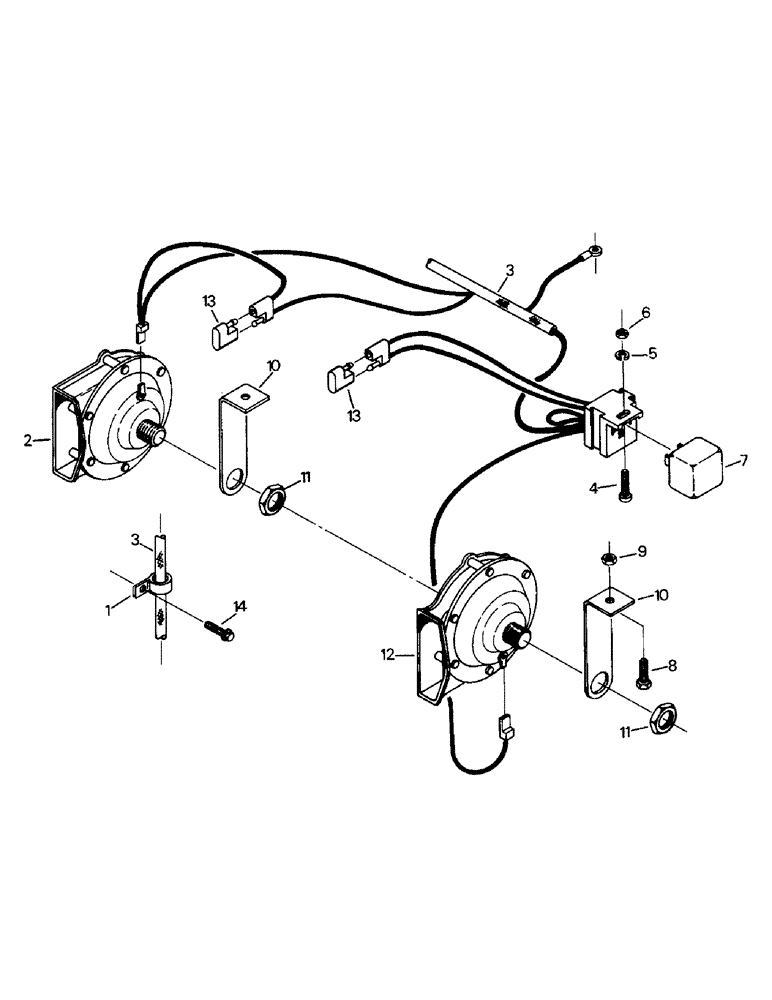

Запчасти Case IH STEIGER (10-36) - HORN AND MOUNTING Options & Miscellaneous

1

22-1109

CLAMP

Harness

2шт.

2

29-1003

HORN

Electrical

1шт.

3

20-2021T1

HARNESS

SPARE PART Horn

1шт.

4

9421943

SCREW,Hex Washer, #10 - 24 x 1/2"

MACHINE SCREW, no. 10 UNC x 1/2

2шт.

5

19-297

LOCK WASHER,#10

#10

2шт.

6

19-567

NUT,#10-24

No. 10 UNC G-A

2шт.

7

20-2133T1

RELAY

Electrical

1шт.

8

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

2шт.

9

19-508

LOCK NUT

Lock, 5/16 UNC G-B

2шт.

10

29-1004

BRACKET

Horn mounting

2шт.

11

19-1002

SPECIAL NUT

Special

2шт.

12

29-1002

HORN

Electrical

1шт.

13

22-738

DIODE

2шт.

14

19-5888

SELF-TAP SCREW

TAPPING SCREW, 1/4 UNC x 1/2

2шт.
