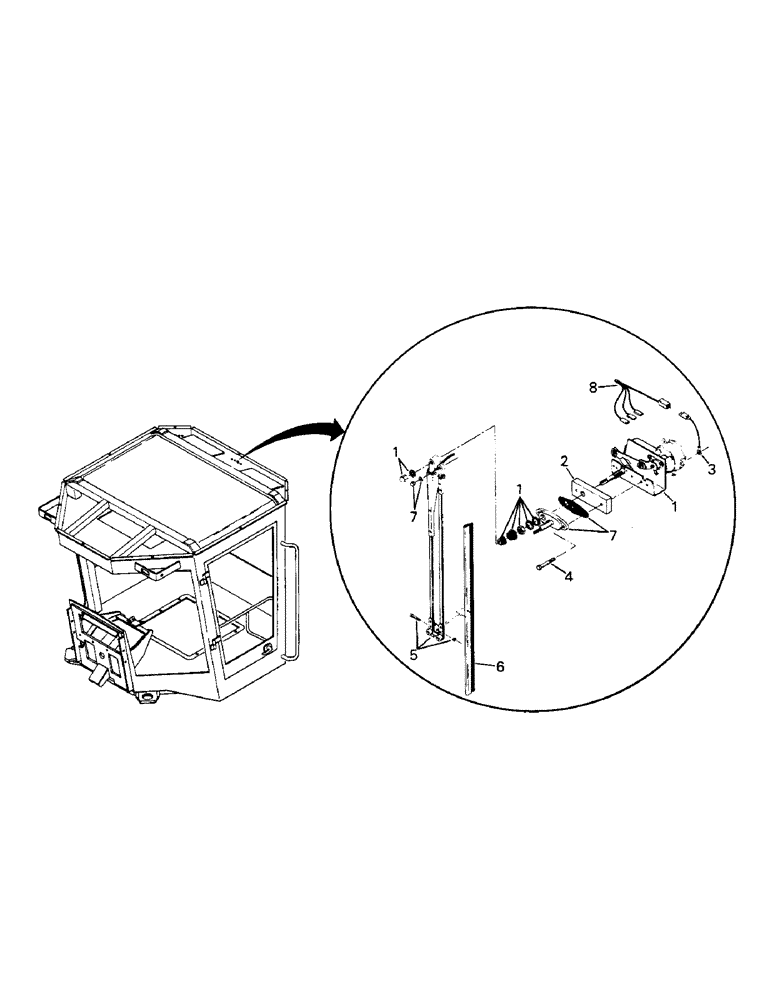

Запчасти Case IH STEIGER (10-33) - REAR WIPER AND MOUNTING Options & Miscellaneous

35-1610T91

KIT

Rear wiper, Includes: Ref. 1 - 10

1шт.

1

DRIVE ASSEMBLY - rear wiper (See Fig. 10-34)

1шт.

2

60-4981T1

SPACER

Wiper mounting

1шт.

3

20-1452T1

ELECTRICAL WIRE

WIRE Motor ground

1шт.

4

19-1048

SPARE PART CAPSCREW, 1/4 UNF x 1-1/2 G-5 Hex, 1/4"-28 x 1 1/2", G5

2шт.

5

54-313

ARM

Wiper, 20 inch

1шт.

6

54-312

HALF BLADE

22 inch

1шт.

7

54-311

PIVOT ASSY.

Wiper blade

1шт.

8

20-2028T1

HARNESS

Rear wiper

1шт.

9

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Nylon (Not shown)

3шт.

10

R02-7302

INSTALLATION DRAWING

1шт.
