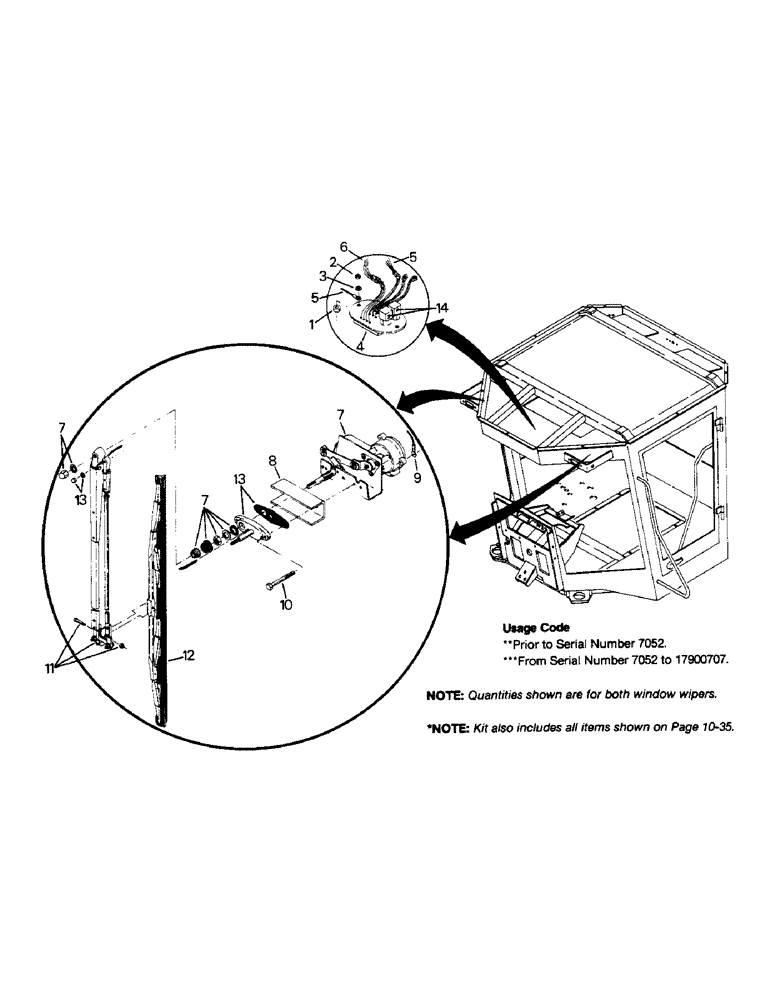

Запчасти Case IH STEIGER (10-32) - FRONT SIDE WIPER AND MOUNTING Options & Miscellaneous

35-1609T91

KIT

SPARE PART Front and front side window washer and front side wiper, Includes: Ref. 1 - 15

1шт.

Kit also includes all Refs. shown on Figure 10-35.

1шт.

1

19-6069

SPACER

No. 10 x 1/2 x 9/32 thk

2шт.

2

19-567

NUT,#10-24

No. 10 UNC G-A

2шт.

3

19-195

WASHER,#10

Flat, no. 10

2шт.

4

20-1669T1

CIRCUIT-BREAKER

Wiper control Includes Ref. 14

1шт.

5

20-2108T1

HARNESS

Side wiper

2шт.

6

20-2107T1

HARNESS

Wiper jumper

1шт.

7

DRIVE ASSEMBLY - wiper (See Fig. 01-46)

1шт.

8

2-2822T1

SPACER

Wiper mounting

2шт.

9

20-1452T1

ELECTRICAL WIRE

WIRE Motor ground

2шт.

10

185080

CLAMP,Hex, 1/4" - 28 x 2.27", Gr 5

CAPSCREW, 1/4 UNF x 2-1/4 G-5

4шт.

11

60-1440T1

WIPER ARM

ARM, WIPER 22 inch, Serial Range: -7052

2шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

60-1144T1

WIPER ARM

ARM, WIPER 17 inch, Serial Range: 7052-17900707

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

12

60-1439T91

HALF BLADE

26 inch, Serial Range: -7052

2шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

2-4193T1

HALF BLADE

Wiper refill, Serial Range: -7052

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

60-1145T91

WIPER BLADE

BLADE, WIPER 18 inch, Serial Range: 7052-17900707

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

2-4194T1

WIPER BLADE

BLADE, WIPER Wiper refill, Serial Range: 7052-17900707

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

13

60-1436T91

PIVOT ASSY.

Wiper blade (See Fig. 01-46 for component parts)

2шт.

14

1-7877

RELAY

Electrical

2шт.

15

R02-7301

INSTALLATION DRAWING

1шт.
