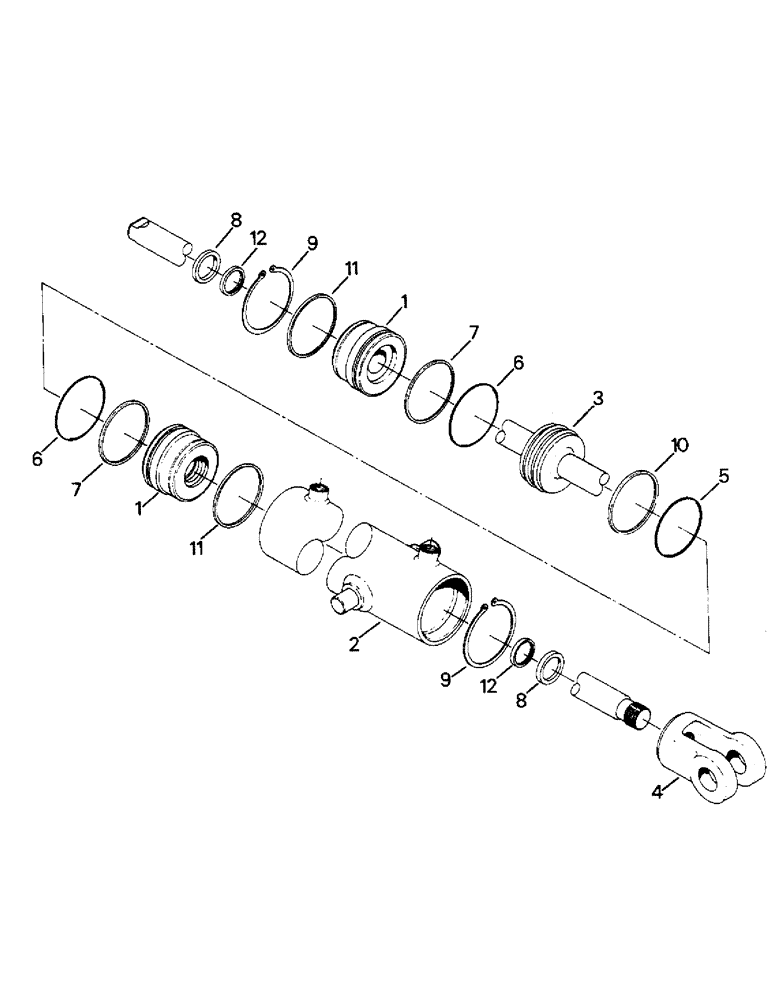

Запчасти Case IH STEIGER (10-30) - STEERING CYLINDER ASSEMBLY, STEERABLE FRONT AXLE Options & Miscellaneous

50-3046T91

CYLINDER

ASSEMBLY - steering, Includes: Ref. 1 - 12

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

Used ASN 7048. These cylinders can be identified by the 1-1/4" diameter trunnions on the cylinder barrel.

1шт.

50-3036T91

CYLINDER

ASSEMBLY - steering

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

50-2628T91

CYLINDER

ASSEMBLY - steering

1шт.

Old part must not be used. Part is defective or inadequate. Scrap or return old part.

1шт.

33-1037T1

SEAL

KIT - seal, Includes: Ref. 5, 6, 7, 8, 10, 11 and 12

1шт.

1

33-1032T1

GUIDE

Rod

2шт.

2

33-1381T1

SLEEVE CYLINDER

BARREL - cylinder

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

Used BSN 7048. These cylinders can be identified by the 1" diameter trunnions on the cylinder barrel.

1шт.

2

33-1033T1

SLEEVE CYLINDER

BARREL - cylinder

1шт.

Old part must not be used. Part is defective or inadequate. Scrap or return old part.

1шт.

2

33-1382T1

SLEEVE CYLINDER

BARREL

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

Used ASN 7048. These cylinders can be identified by the 1-1/4" diameter trunnions on the cylinder barrel.

1шт.

3

33-1304T1

BELT

1шт.

4

33-1035T1

END

Rod

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of Seal Kit, P/N 33-1037T1

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

Part of Seal Kit, P/N 33-1037T1

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of Seal Kit, P/N 33-1037T1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - wiper

2шт.

Part of Seal Kit, P/N 33-1037T1

1шт.

9

33-1036T1

RING, SNAP

RING SNAP

2шт.

10

NSS

NOT SOLD SEPARAT

SLIPPER - piston

1шт.

Part of Seal Kit, P/N 33-1037T1

1шт.

11

NSS

NOT SOLD SEPARAT

RING - lock

2шт.

Part of Seal Kit, P/N 33-1037T1

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rod

2шт.

Part of Seal Kit, P/N 33-1037T1

1шт.
