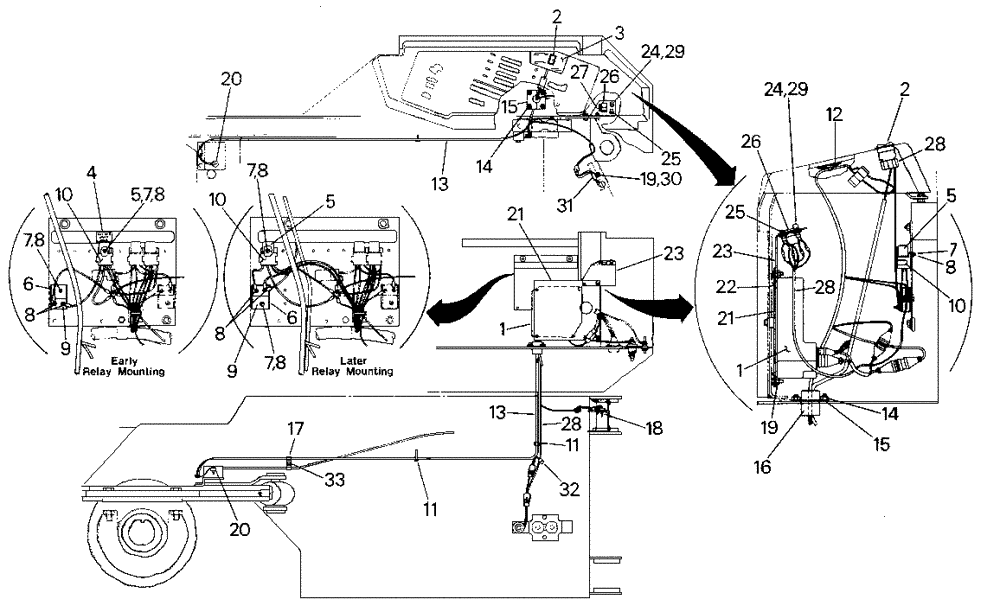

Запчасти Case IH STEIGER (10-26) - STEERABLE AXLE CONTROLS & ELECTRONICS Options & Miscellaneous
№
Артикул
Название
Примечание
Количество
1
20-2491T1
CONTROL
ELECTRONIC BOX ASSEMBLY
1шт.
2
20-2411T1
SWITCH
Rocker
1шт.
3
60-5069T1
DECAL
Console (with tan interiors)
1шт.
60-5943T1
DECAL
Console (with grey interiors)
1шт.
4
60-5068T1
DECAL
SPARE PART Relay (early models only)
1шт.
5
01-7877
Relay
1шт.
6
20-1171T1
SUPPORT
Circuit Breaker Bracket
1шт.
7
19-572
SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5
MACHINE SCREW, #10 UNF x 1/2
3шт.
8
19-481
SERRATED NUT
Keps, #10 UNF
5шт.
10
20-2352T2
HARNESS
Relay Harness (20-2352T1) to BSN 7001
1шт.
Old part can be used prior to serial number break only. When stock is depleted, use new on all.
1шт.
11
22-824
CABLE TIE,3/16" x 7 1/4"
CABLE STRAP
3шт.
12
22-823
MOUNT
Adhesive Backed Mount
1шт.
13
20-2350T2
HARNESS
Steerable Axle Harness to BSN 7001
1шт.
Wire harnesses (Refs. 13 and 18) have been incorporated into single harness (20-2494T1) on later production tractors. If both harnesses are needed, order the new single harness.
1шт.
14
19-802
NUT
5/16 UNC G-A
4шт.
15
60-4651T1
ANGLE
Plate
2шт.
16
60-3705T1
FOAM
1шт.
17
31-1775
CLAMP
1шт.
18
20-2322T1
POTENTIOMETER
1шт.
19
19-077
NUT, 5/16 UNC G-B
5шт.
20
20-2125T2
POTENTIOMETER
1шт.
21
90-6692T1
PLATE
1шт.
22
19-1018
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"
#10 UNS x 3/4
4шт.
23
20-2434T1
BRACKET
1шт.
24
20-2437T1
LIGHT ASSY.
Indicator Light
1шт.
25
02-7128
SWITCH
1шт.
26
01-6150
ROCKER SWITCH
1шт.
27
60-5754T1
DECAL
1шт.
28
20-2495T1
HARNESS
Run/Calibration Harness to BSN 7001
1шт.
Wire harnesses (Refs. 13 and 18) have been incorporated into single harness (20-2494T1) on later production tractors. If both harnesses are needed, order the new single harness.
1шт.
29
22-717
LAMP
Bulb (#1893)
1шт.
30
19-006
CAPSCREW, 5/16 UNC x 3/4 G-5
1шт.
31
31-1862
CLAMP
1шт.
33
Existing Hardware
1шт.
Выбрано товаров: 37
