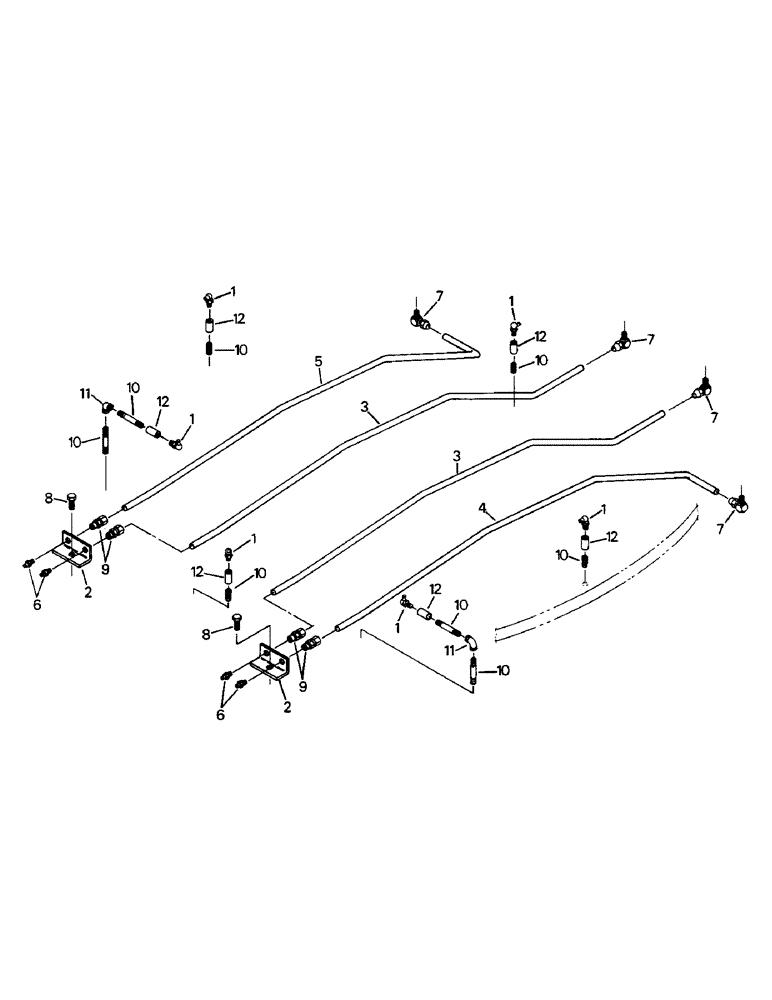

Запчасти Case IH STEIGER (10-25) - STEERABLE AXLE MOUNTING GREASE LINES Options & Miscellaneous

1

90-6615T1

BRACKET

SPARE PART

1шт.

2

31-93

FITTING

Grease, 1/8 NPT (Qty 6 w/later style)

6шт.

3

50-2890T1

TUBE ASSY.

SPARE PART Grease line

1шт.

4

50-2889T1

TUBE ASSY.

SPARE PART Grease line

1шт.

5

50-2891T1

TUBE ASSY.

SPARE PART Grease line

1шт.

6

50-2892T1

TUBE ASSY.

SPARE PART FITTING - grease, 1/8 NPT

4шт.

7

50-2887T1

TUBE ASSY.

SPARE PART

1шт.

8

50-2888T1

TUBE ASSY.

SPARE PART

1шт.

9

31-2647

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, XLG

1/8 NPT Male x 7/16-20 JIC 37 degree male

2шт.

10

31-661

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

1/8 NPT Male x 7/16-20 JIC 37 degree male

4шт.

11

31-660

ADAPTER

BULKHEAD CONNECTOR, 1/8 NPT female x 7/16-20 JIC 37 degree male

6шт.

12

CAPSCREW (existing hardware) (See Fig. 10-23)

1шт.

13

70-5171T1

BRACKET

2шт.

14

70-5169T1

TUBE,0.25" OD, 31.5, 3.88" Length

2шт.

15

70-5170T1

TUBE

1шт.

16

70-5199T1

TUBE

1шт.

17

31-094

GREASE FITTING, NPT

4шт.

18

31-599

ELBOW

Compression, 1/8 NPT male x 1/4 tube

4шт.

19

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

2шт.

20

31-2785

FITTING

Compression, 1/8 NPT female x 1/4 tube

4шт.

21

114794

NIPPLE,Nipple, 1/8" NPT x 2"

1/8 NPT male x 2 inch

8шт.

22

31-77

ELBOW

1/8 NPT female x 1/8 NPT female

2шт.

23

31-57

COUPLING

1/8 NPT female x 1/8 NPT female

6шт.

24

31-489

NIPPLE, LUBE

NIPPLE 1/8 NPT male x 3/4 long

4шт.
