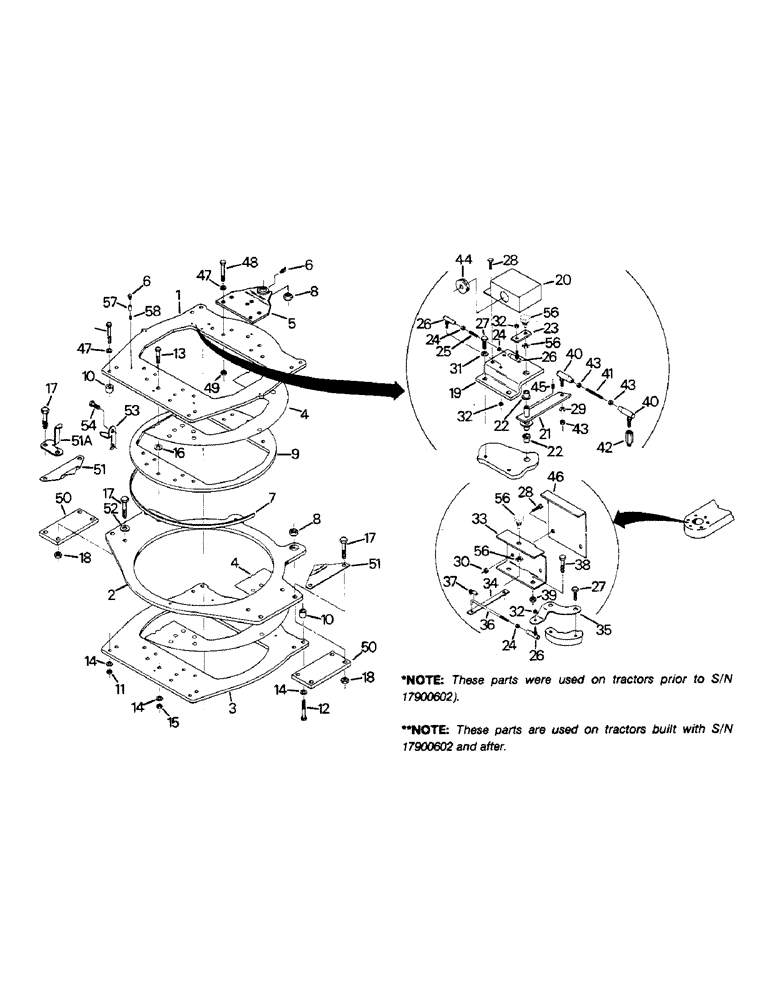

Запчасти Case IH STEIGER (10-23) - STEERABLE AXLE MOUNTING Options & Miscellaneous

1

70-4539T3

LARGE PLATE

PLATE, LARGE Frame base

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

These parts were used ASN 7001.

1шт.

70-4539T2

LARGE PLATE

SPARE PART Frame base

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

These parts were used BSN 7001. These parts may no longer be available and Kit 35-1714T91 must be ordered. This Kit includes new plates (Ref. 1 and 3), new bearings (Ref. 4) and new grease fittings and tubes as shown on Fig. 10-25.

1шт.

2

70-4542T2

LARGE PLATE

PLATE, LARGE Axle base

1шт.

3

70-4635T2

LARGE PLATE

SPARE PART Clamp

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

These parts were used BSN 7001. These parts may no longer be available and Kit 35-1714T91 must be ordered. This Kit includes new plates (Ref. 1 and 3), new bearings (Ref. 4) and new grease fittings and tubes as shown on Fig. 10-25.

1шт.

3

70-4635T3

LARGE PLATE

PLATE, LARGE Clamp

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

These parts were used ASN 7001.

1шт.

4

70-4652T2

LARGE PLATE

PLATE, LARGE BEARING - nylatron (70-4652T1), Serial Range: -BSN7001

4шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

These parts were used BSN 7001. These parts may no longer be available and Kit 35-1714T91 must be ordered. This Kit includes new plates (Ref. 1 and 3), new bearings (Ref. 4) and new grease fittings and tubes as shown on Fig. 10-25.

1шт.

5

70-4561T1

BRACKET

SPARE PART Cylinder mounting

2шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

These parts were used BSN 7048 but check parts before ordering as some earlier tractors have been field-converted to the later style.

1шт.

5a

70-5112T1

BRACKET

2шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

These parts were used ASN 7048.

1шт.

6

31-93

FITTING

Grease, 1/8 NPT

4шт.

7

70-4541T1

BEARING,48 mm OD x 1"

Nylatron

2шт.

8

70-4646T1

BUSHING

BEARING - uniball, 1-1/4 inch

2шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

These parts were used BSN 7048 but check parts before ordering as some earlier tractors have been field-converted to the later style.

1шт.

9

70-4557T1

BALL JOINT

PLATE - bearing (Qty 1 BSN)

3шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

These parts were used ASN 7048.

1шт.

11

70-4913T1

SPACER

13/16 x 1-3/4 x 1-9/64 thk

8шт.

10

70-4536T1

PLATE

SPARE PART Bearing

1шт.

12

19-85

LOCK NUT

Lock, 3/4 UNC G-B

4шт.

13

19-614

BOLT,3/4" - 10 x 4 1/2", Gr 5

CAPSCREW, 3/4 UNC x 4-1/2 G-5

8шт.

14

19-769

BOLT,Hex, 3/4" - 10 x 4", Gr 5

CAPSCREW, 3/4 UNC x 4 G-5

9шт.

15

19-712

WASHER,3/4", SAE

Flat, 3/4 x 1-1/2 x 1/8 thk

17шт.

16

19-84

NUT,3/4"-10, G5

3/4 UNC G-B

9шт.

17

19-6220

WASHER

SPARE PART SHIM - flat, 3/4 x 1-1/2 x 3/64 thk

14шт.

18

223493

SCREW

CAPSCREW, 1 UNC x 4-1/2 G-8 (Qty 4 w/K-592 axle)

8шт.

These parts are used on tractors with AP3445 axles.

1шт.

These parts are used on tractors with K-592 axles.

1шт.

19

19-859

LOCK NUT

Lock, UNC G-B

8шт.

These parts are used on tractors with AP3445 axles.

1шт.

These parts are used on tractors with K-592 axles.

1шт.

20

70-4912T1

BRACKET

SPARE PART Control mounting

1шт.

21

70-4653T1

COVER

SPARE PART Control protection

1шт.

22

70-4654T1

LEVER

Potentiometer Mounting

1шт.

23

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

BEARING - flanged

2шт.

24

70-4658T1

LEVER

Actuating

1шт.

25

19-308

NUT,#10 - 32

No. 10 UNF G-A

3шт.

26

19-6228

ROD

Threaded, no. 10 UNF x 1-1/4

1шт.

27

6-1431

BALL JOINT

No. 10 UNF

3шт.

28

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

4шт.

29

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

4шт.

30

19-116

LOCK WASHER,5/16"

5/16"

1шт.

31

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

2шт.

32

19-117

LOCK WASHER,3/8"

3/8"

2шт.

33

9411893

LOCK NUT,#10-32, GB

No. 10 UNF G-A

3шт.

34

70-4675T2

BRACKET

Control mounting

1шт.

35

70-4678T1

LEVER

Actuating

1шт.

36

70-4680T1

BRACKET

Link mounting

1шт.

37

70-4642T1

ROD

Control Adjusting

1шт.

38

60-2404T1

RETAINER

Rod

1шт.

39

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 UNC x 1-1/4 G-5

2шт.

40

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC G-B

2шт.

41

19-173

GASKET

JOINT - ball, 5/16 UNF

2шт.

42

19-6229

ROD,THREADED

THREADED ROD 5/16 UNF x 2-5/16

1шт.

43

70-4661T1

SPACER

Ball joint

1шт.

44

19-88

NUT,5/16"-24, G5

5/16 UNF G-B

3шт.

45

22-765

GROMMET

Hole

1шт.

46

140880

SCREW - set, no. 10 UNF x 1/4

1шт.

47

70-4997T1

LARGE PLATE

PLATE, LARGE Cover

1шт.

48

19-5723

WASHER

Flat, hardened, 3/4 x 1-1/2 x 5/32 thk

14шт.

49

9430296

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

CAPSCREW, 3/4 UNC x 5-1/2 G-8

5шт.

50

19-651

LOCK NUT

Lock, 3/4 UNC G-C

5шт.

51

70-4636T1

AXLE

PLATE - axle mounting

2шт.

These parts are used on tractors with AP3445 axles.

1шт.

51a

70-5125T1

ADAPTER

AXLE MOUNT (left)

1шт.

These parts are used on tractors with K-592 axles.

1шт.

51b

70-5126T1

SHOCK ABSORBER

AXLE MOUNT (right)

1шт.

These parts are used on tractors with K-592 axles.

1шт.

52

90-6745T1

PLATE

SPARE PART INDICATOR - axle

2шт.

These parts are used on tractors with AP3445 axles.

1шт.

52a

90-6950T1

DIPSTICK

INDICATOR - axle

1шт.

These parts are used on tractors with K-592 axles.

1шт.

53

19-5685

WASHER

Flat, 1 x 2-1/2 x 3/8 thk

4шт.

These parts are used on tractors with AP3445 axles.

1шт.

54

90-6942T1

BAR

(90-6942T1)

2шт.

Old part must not be used. Part is defective or inadequate. Scrap or return old part.

1шт.

These parts are used on tractors with AP3445 axles.

1шт.

55

223489

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

CAPSCREW, 1 UNC x 3-1/2 G-8

4шт.

These parts are used on tractors with K-592 axles.

1шт.

56

90-6950T1

DIPSTICK

FRAME INDICATOR

1шт.

These parts are used on tractors with K-592 axles.

1шт.

57

19-476

BOLT,Hex, 3/4" - 10 x 2", Gr 8

CAPSCREW, 3/4 UNC x 2 G-8

2шт.

These parts are used on tractors with K-592 axles.

1шт.

58

19-815

BOLT,Hex, 1" - 8 x 9 1/4", Gr 8

CAPSCREW, 1 UNC x 9-1/4 G-8

8шт.

These parts are used on tractors with K-592 axles.

1шт.

59

01-1055

SEALANT (not shown)

1шт.

60

POTENTIOMETER - electrical (See Fig. 10-26)

2шт.

61

Existing Hardware

1шт.

62

31-57

COUPLING

Pipe, 1/8 NPT

2шт.

63

31-489

NIPPLE, LUBE

NIPPLE 1/8 NPT x 2

2шт.
