(10-19) - PTO CONTROL VALVE ASSEMBLY

Запчасти Case IH STEIGER (10-19) - PTO CONTROL VALVE ASSEMBLY Options & Miscellaneous

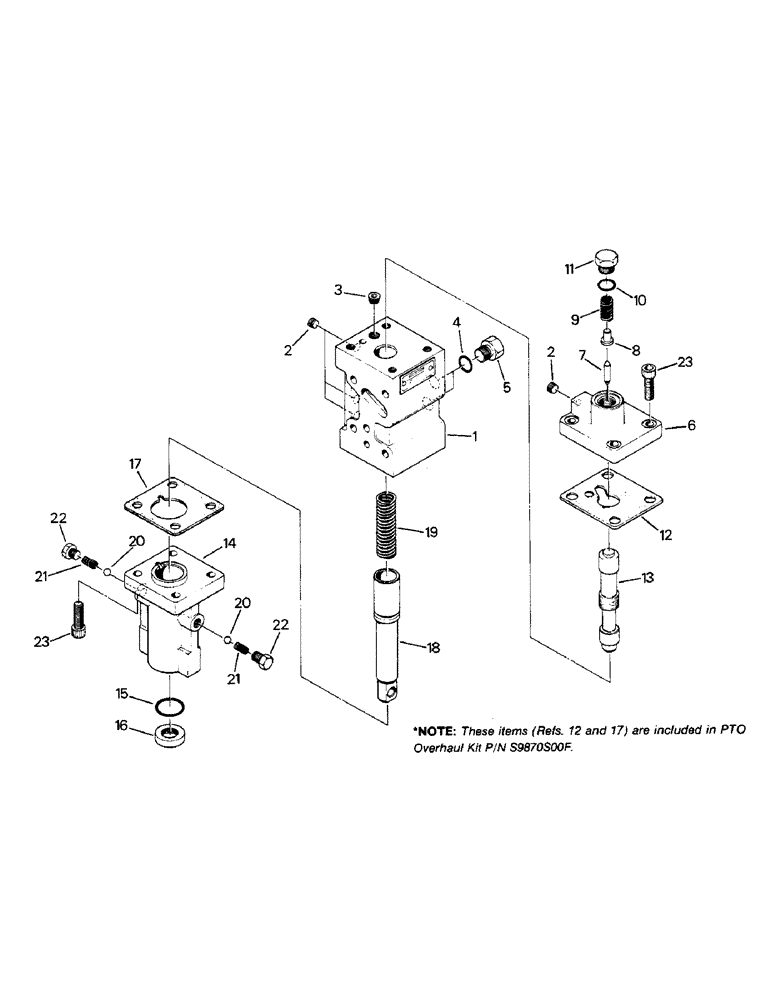

Схема запчастей Case IH STEIGER - (10-19) - PTO CONTROL VALVE ASSEMBLY Options & Miscellaneous
4
6
19
15
16
10
8
13
2
1
21
2
20
21
3
18
20
23
11
22
17
12
22
23
9
14
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S9500S00F

VALVE

PTO CONTROL VALVE ASSEMBLY, Includes: Ref. 1 - 23

1шт.

1

S9580S00F

BODY

Modulator

1шт.

2

S9720S00F

PLUG

Pipe

4шт.

3

S9730S00F

PLUG

Crifice

1шт.

4

S1320S00F

O-RING

Plug

2шт.

5

S3190S00F

PLUG - o-ring (Includes Ref. 4)

2шт.

6

S9610S00F

COVER

Valve

1шт.

7

S9620S00F

PISTON

SPOOL - reducing

1шт.

8

S9640S00F

PIN

1шт.

9

S9650S00F

SPRING

Compression

1шт.

10

S9660S00F

GASKET

O-RING - plug

1шт.

11

S9670S00F

PLUG

O-ring

1шт.

12

S9600S00F

GASKET

Cover

1шт.

These Refs. (Refs. 12 and 17) are included in PTO Overhaul Kit P/N S9870S00F.

1шт.

13

S9590S00F

PISTON

SPOOL - modulator

1шт.

14

S9550S00F

CAP

COVER - control stem

1шт.

15

S9540S00F

GASKET

O-RING - seal

1шт.

16

S9530S00F

SEAL

Control stem

1шт.

17

S9570S00F

GASKET

Cover

1шт.

These Refs. (Refs. 12 and 17) are included in PTO Overhaul Kit P/N S9870S00F.

1шт.

18

S9520S00F

STEM

Control

1шт.

19

S9560S00F

SPRING

Compression

1шт.

20

S9690S00F

BALL

Steel

2шт.

21

S9700S00F

SPRING

Compression

2шт.

22

S9710S00F

PLUG

2шт.

23

S9680S00F

SCREW

8шт.
