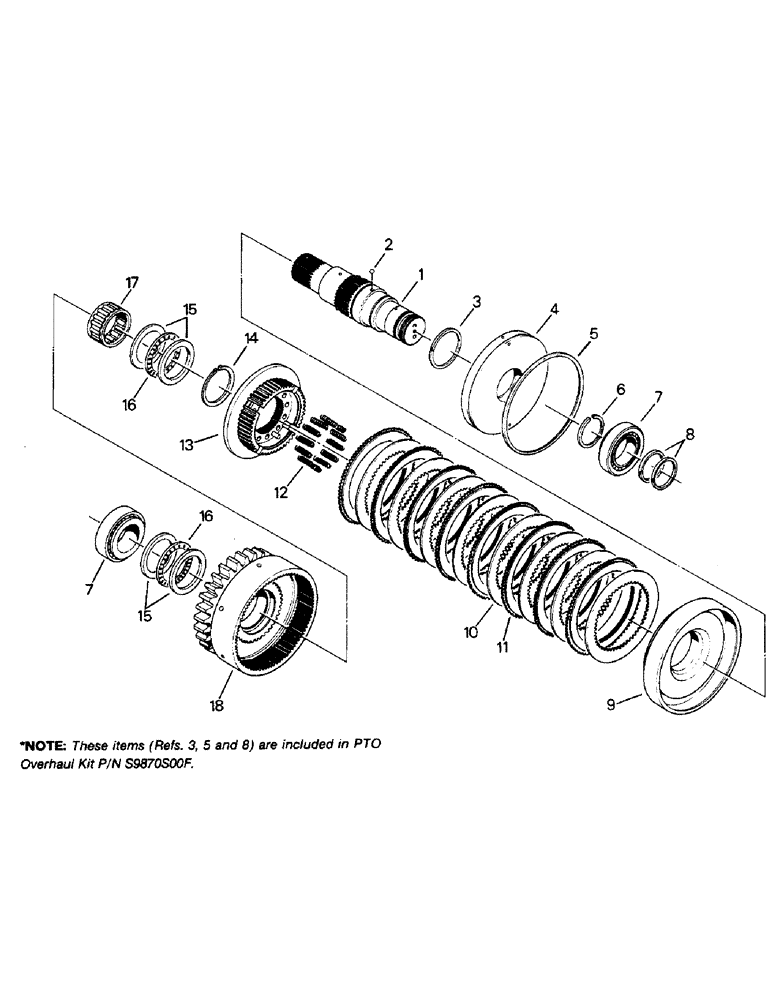

Запчасти Case IH STEIGER (10-18) - PTO CLUTCH PACK ASSEMBLY Options & Miscellaneous

S8590S00F

CLUTCH PLATE

ASSEMBLY - PTO, Includes: Ref. 1 - 18

1шт.

1

S8610S00F

SHAFT

PTO input

1шт.

2

SM3272036

BALL

1шт.

3

S2610S00F

RING

Sealing

1шт.

These Refs. (Refs. 3, 5 and 8) are included in PTO Overhaul Kit P/N S9870S00F.

1шт.

4

S9190S00F

LARGE PLATE

PLATE, LARGE Reaction

1шт.

5

S2630S00F

RING

Sealing

1шт.

These Refs. (Refs. 3, 5 and 8) are included in PTO Overhaul Kit P/N S9870S00F.

1шт.

6

S2240S00F

RING, SNAP

RING SNAP Retaining

1шт.

7

S8730S00F

TAPERED BEARING,55mm ID x 90mm OD x 23mm W

2шт.

8

S3070S00F

RING

Sealing

2шт.

These Refs. (Refs. 3, 5 and 8) are included in PTO Overhaul Kit P/N S9870S00F.

1шт.

9

S8660S00F

PISTON

Clutch

1шт.

10

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK PLATE - steel (Flat)

8шт.

11

S2050S00F

LARGE PLATE

PLATE, LARGE Faced

8шт.

12

S8690S00F

SPRING

Compression

12шт.

13

S9850S00F

HUB

Clutch

1шт.

14

S2100S00F

RING, SNAP

RING SNAP

1шт.

15

S2200S00F

BEARING WASHER

Thrust

4шт.

16

S2230S00F

BEARING

Thrust

2шт.

17

S2030S00F

BEARING, ROLLER

Needle

1шт.

18

S8700S00F

GEAR

Drive

1шт.
