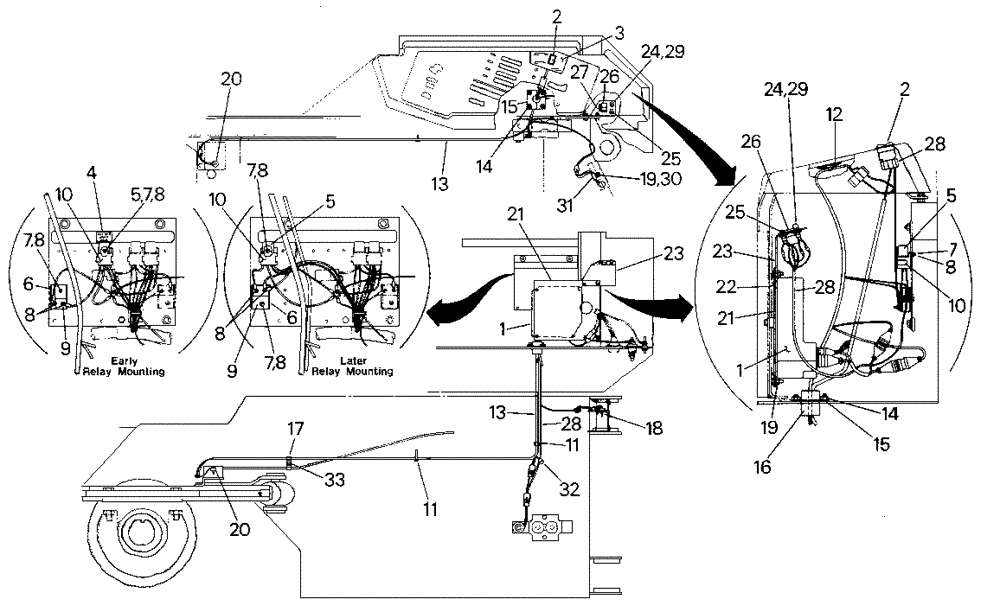

Запчасти Case IH STEIGER (10-17) - PTO CLUTCH ASSEMBLY Options & Miscellaneous

1

S8740S00F

HUB

Clutch brake

1шт.

2

S8820S00F

OIL SEAL

Oil

1шт.

These Refs. (Refs. 2, 3, 4, 7 and 13) are included in PTO Overhaul Kit P/N S9870S00F.

1шт.

3

S2630S00F

RING

Sealing

1шт.

These Refs. (Refs. 2, 3, 4, 7 and 13) are included in PTO Overhaul Kit P/N S9870S00F.

1шт.

4

S8850S00F

GASKET

O-RING - seal

1шт.

These Refs. (Refs. 2, 3, 4, 7 and 13) are included in PTO Overhaul Kit P/N S9870S00F.

1шт.

5

S8520S00F

HOUSING

PTO

1шт.

6

S8840S00F

SCREW

CAPSCREW - socket head

6шт.

7

S8960S00F

RING

Sealing

1шт.

These Refs. (Refs. 2, 3, 4, 7 and 13) are included in PTO Overhaul Kit P/N S9870S00F.

1шт.

8

S8750S00F

PISTON

Brake

1шт.

9

S8990S00F

SHIN

PIN - guide

3шт.

10

S8910S00F

SPRING

Compression

3шт.

11

S9900S00F

WASHER

Spring retaining

3шт.

12

S9890S00F

PIN, ROLL

3шт.

13

S8900S00F

GASKET

O-RING - seal

3шт.

These Refs. (Refs. 2, 3, 4, 7 and 13) are included in PTO Overhaul Kit P/N S9870S00F.

1шт.

14

SM8915440

WASHER

Flat, M10

3шт.

15

SM8911040

NUT

Slotted, M10 x 1.25

3шт.

16

SM9212221

PIN, SPLIT (COTTER)

PIN, COTTER

3шт.

17

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK PLATE - steel (Flat)

2шт.

18

S2050S00F

LARGE PLATE

PLATE, LARGE Steel (Paper)

1шт.

19

SM3272036

BALL

Steel

1шт.

20

S8760S00F

LEDGER PLATE

Reaction

1шт.

21

S8770S00F

RING, SNAP

RING SNAP Retaining

1шт.

22

S8790S00F

SHAFT

Output

1шт.

23

S2240S00F

RING, SNAP

RING SNAP Retaining

2шт.

24

S8780S00F

PINION

GEAR - driven

1шт.

25

S8800S00F

BEARING, BALL

1шт.

26

33-1467T1

DOWEL

PIN - dowel (S0660S00F)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

27

S8510S00F

HOUSING

PTO

1шт.

28

SM8124250

BOLT

CAPSCREW, M12 x 1.25 x 50 MM G8.8

3шт.

29

SM8124240

BOLT

CAPSCREW, M12 x 1.25 x 40 MM G8.8

1шт.

30

S8810S00F

BEARING, BALL

1шт.

31

S8970S00F

WASHER

Bearing spacer

1шт.

32

S8980S00F

RING

Retaining

1шт.

33

S9990S00F

SHIM

1шт.

34

S8990S00F

SHIN

RETAINER - bearing

1шт.

35

SM8120830

BOLT

CAPSCREW, M8 x 1.25 x 30 MM G8.8

10шт.

36

S9910S00F

SHIM,0.1mm Thk

Clutch pack

1шт.

S9920S00F

SHIM,0.3mm Thk

Clutch pack

1шт.

S9930S00F

SHIM,0.5mm Thk

Clutch pack (0.50 MM)

1шт.

S9940S00F

SHIM,0.7mm Thk

Clutch pack

1шт.

37

S8570S00F

SHIN

RETAINER - bearing

1шт.

38

CLUTCH ASSEMBLY - PTO (See Fig. 10-18)

1шт.

39

SM8124230

BOLT

CAPSCREW, M12 x 1.25 x 30 MM G8.8

1шт.

Capscrew (Ref. 39) was added to later production models and will not be present on early models.

1шт.
