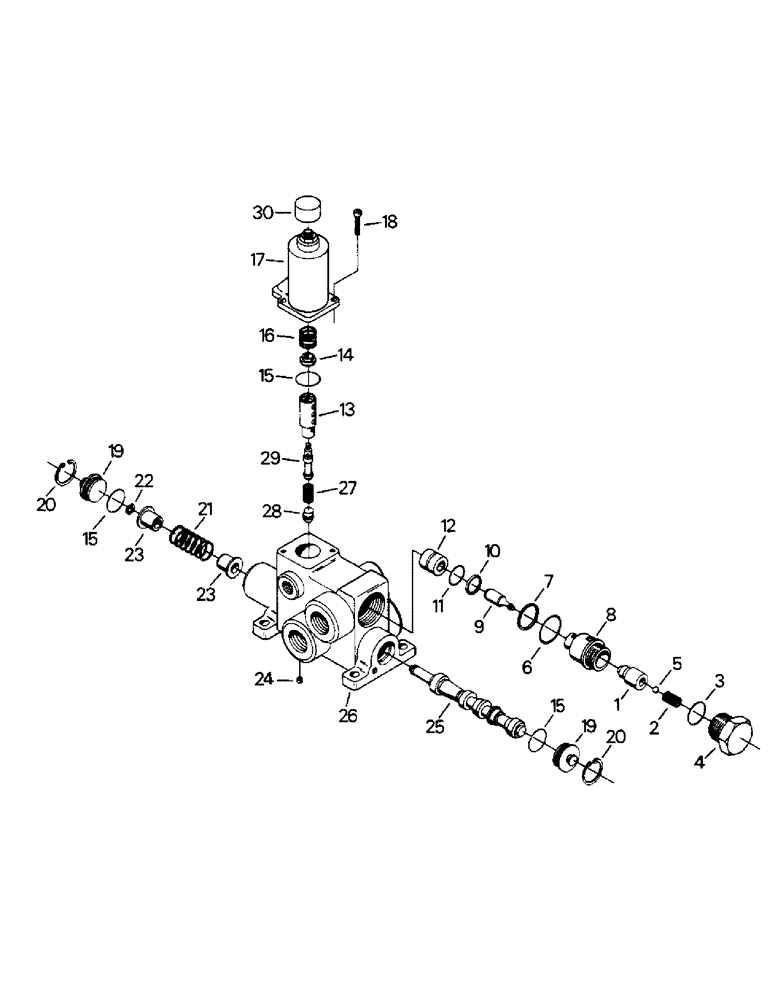

Запчасти Case IH STEIGER (10-12) - SOLENOID VALVE ASSEMBLY Options & Miscellaneous
№
Артикул
Название
Примечание
Количество
50-2389T91
VALVE
ASSEMBLY - solenoid, Includes: Ref. 1 - 30
1шт.
50-2652T1
SEAL KIT
Seal, Includes: Ref. 3, 6, 7, 10, 11 and 15
1шт.
50-2651T1
CARTRIDGE
Load check, Includes: Ref. 1 - 8
1шт.
1
NSS
NOT SOLD SEPARAT
POPPET - load check
1шт.
2
NSS
NOT SOLD SEPARAT
SPRING - compression
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
Part of Seal Kit, P/N 50-2652T1
1шт.
4
NSS
NOT SOLD SEPARAT
PLUG - load check
1шт.
5
NSS
NOT SOLD SEPARAT
BALL - load check
1шт.
6
NSS
NOT SOLD SEPARAT
O-RING - seal
1шт.
Part of Seal Kit, P/N 50-2652T1
1шт.
7
NSS
NOT SOLD SEPARAT
WASHER - backup
1шт.
Part of Seal Kit, P/N 50-2652T1
1шт.
8
NSS
NOT SOLD SEPARAT
SLEEVE - load check
1шт.
9
50-2637T1
PISTON
1шт.
10
NSS
NOT SOLD SEPARAT
WASHER - backup
1шт.
Part of Seal Kit, P/N 50-2652T1
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING - seal
1шт.
Part of Seal Kit, P/N 50-2652T1
1шт.
12
50-2638T1
SLEEVE
Piston
1шт.
13
50-2639T1
SPOOL
Solenoid
1шт.
14
50-2640T1
GUIDE
1шт.
15
NSS
NOT SOLD SEPARAT
O-RING - seal
3шт.
Part of Seal Kit, P/N 50-2652T1
1шт.
16
50-2641T1
SPRING
Compression
1шт.
17
50-2642T1
SOLENOID
Valve actuating
1шт.
18
147112
CAPSCREW,#10 - 24 x 0.75", Gr 8
CAPSCREW - socket head, no. 10 UNC x 3/4 G-8
2шт.
19
50-2643T1
PLUG
SPARE PART Housing
2шт.
20
50-2644T1
RING, SNAP
SPARE PART
2шт.
21
50-2645T1
SPRING
Compression
1шт.
22
50-2646T1
RING, SNAP
SPARE PART
1шт.
23
50-2647T1
GUIDE
SPARE PART Spool
2шт.
24
NSS
NOT SOLD SEPARAT
PLUG
7шт.
25
NSS
NOT SOLD SEPARAT
SPOOL - valve
1шт.
26
NSS
NOT SOLD SEPARAT
BODY - solenoid valve
1шт.
27
50-2648T1
SPRING
Compression
1шт.
28
50-2649T1
GUIDE
1шт.
29
50-2650T1
SLEEVE
1шт.
30
50-2718T1
CAP
Solenoid
1шт.
Выбрано товаров: 39
