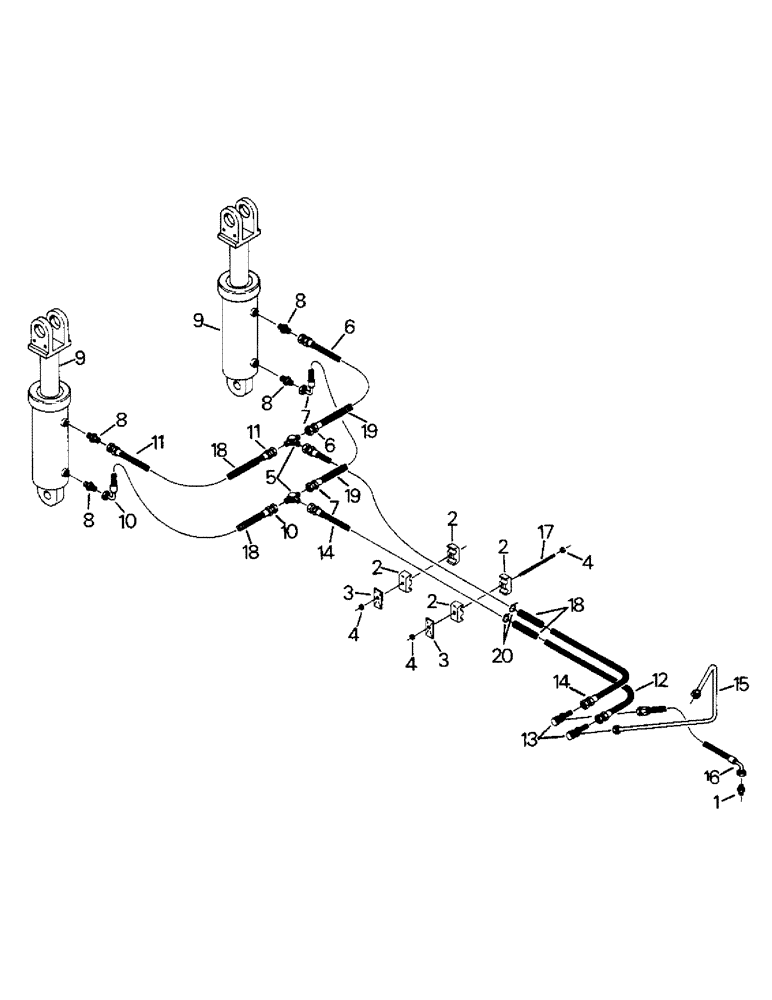

Запчасти Case IH STEIGER (10-10) - THREE POINT HYDRAULIC SYSTEM, CYLINDER END Options & Miscellaneous

1

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

ADAPTER, 1/2 NPT male x 7/8-14 JIC 37 degree male

1шт.

2

50-2534T1

CLAMP

Half

4шт.

3

50-2533T1

PLATE

COVER - half clamp

2шт.

4

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

3шт.

5

18-584

TEE,7/8"-14, 37 Degree

7/8-14 JIC 37 degree male x 7/8-14 JIC 37 degree male x 7/8- 14 JIC 37 degree male

2шт.

6

18-543

HOSE

Upper left cylinder

1шт.

7

31-2464

HOSE

Lower left cylinder

1шт.

8

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER (8), 3/4-16 o-ring boss x 3/4-16 JIC 37 degree male

4шт.

9

CYLINDER ASSEMBLY (See Fig. 10-03)

2шт.

10

31-2463

HOSE

Lower right cylinder

1шт.

11

31-1957

HOSE

Upper right cylinder

1шт.

12

31-2677

HOSE ASSY.

Cylinder to tank hose

1шт.

13

31-2675

ELBOW,90º Blkhd, 7/8"-14, 37º x 7/8"-14, 37º

Bulkhead, 7/8-14 JIC 37 degree male x 7/8-14 JIC 37 degree male

2шт.

14

31-2676

HOSE ASSY.

Cylinder to solenoid tube

1шт.

15

50-2923T1

TUBE

Cylinder, Serial Range: hose-solenoid

1шт.

16

31-2679

HOSE ASSY.

Cylinder, Serial Range: hose-tank

1шт.

17

50-2714T1

STUD

Clamp attaching

1шт.

18

50-2741T1

CONDUIT

PROTECTOR - flex guard

4шт.

19

50-2696T1

HOSE

PROTECTOR - flex guard

2шт.

20

19-135

CABLE TIE

CABLE STRAP Nylon

4шт.
