Запчасти Case IH STEIGER (01-47) - WIPER DRIVE ASSEMBLY, FRONT WINDOWS (10) - CAB

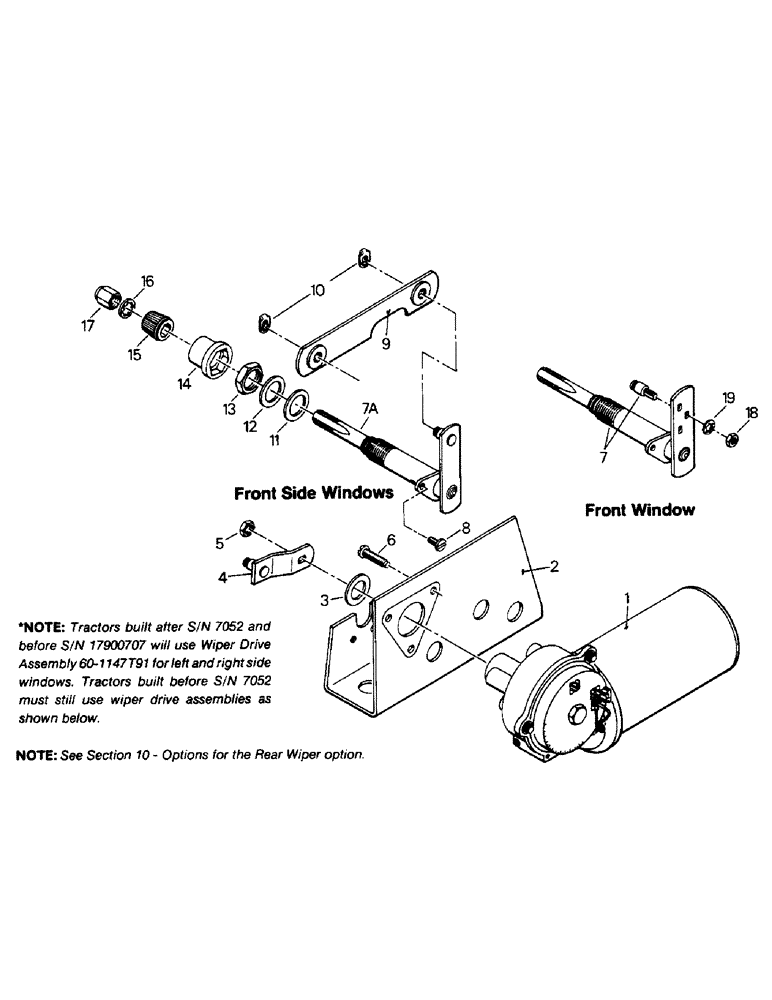

Схема запчастей Case IH STEIGER - (01-47) - WIPER DRIVE ASSEMBLY, FRONT WINDOWS (10) - CAB
7a
5
2
8
13
16
1
10
18
14
4
9
19
7
6
15
3
11
12
17

Артикул

Название

Примечание

Количество

60-1147T91

DRIVE

DRIVE ASSEMBLY - wiper (Front window), Includes: Ref. 1 - 19

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

Tractors built after S/N 7052 will use Wiper Drive Assembly 60-1147T91 for left and right side windows. Tractors built before S/N 7052 must still use wiper drive assemblies as shown below.

1шт.

60-1437T91

DRIVE

DRIVE ASSEMBLY - wiper (Left front side window), Includes: Ref. 1 - 17

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

Tractors built after S/N 7052 will use Wiper Drive Assembly 60-1147T91 for left and right side windows. Tractors built before S/N 7052 must still use wiper drive assemblies as shown below.

1шт.

60-1438T91

DRIVE

DRIVE ASSEMBLY - wiper (Right front side window), Includes: Ref. 1 - 17

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

Tractors built after S/N 7052 will use Wiper Drive Assembly 60-1147T91 for left and right side windows. Tractors built before S/N 7052 must still use wiper drive assemblies as shown below.

1шт.

1

20-1205T1

ADAPTER

MOTOR - wiper (Front window)

1шт.

2-6866T1

MOTOR, ELECTRIC

MOTOR - wiper (Front side windows)

1шт.

2

1-2681

SUPPORT

BRACKET - motor mounting

1шт.

3

1-2678

WASHER

Wave

1шт.

4

2-6867T1

ARM

LEVER - drive

1шт.

5

1-2680T1

NUT - with lock washer

1шт.

6

1-2682T1

SCREW - with lock washer

3шт.

7

2-6869T91

SHAFT ASSY.

SHAFT AND PIVOT - arm (Includes Refs. 18 and 19)

1шт.

7a

2-6868T1

SHAFT ASSY.

SHAFT AND PIVOT - arm

1шт.

8

2-6870T1

SCREW

With lock washer

2шт.

9

1-2683

LINK

Connecting

1шт.

10

1-2685

CLIP

Spring, retaining

2шт.

11

60-3495T1

WASHER

1шт.

12

60-3496T2

WASHER

1шт.

13

60-3497T1

NUT

1шт.

14

60-3498T1

COVER

1шт.

15

60-3499T1

BLOCK DRIVER

Knurled, wiper arm

1шт.

16

60-3501T1

WASHER

1шт.

17

60-3500T1

CAP

NUT

1шт.

18

19-936

JAM NUT

Jam, 1/4 UNF G-B

1шт.

19

19-890

LOCK WASHER,Int Tooth, 1/4"

Internal lock, 1/4

1шт.

Выбрано товаров: 30
