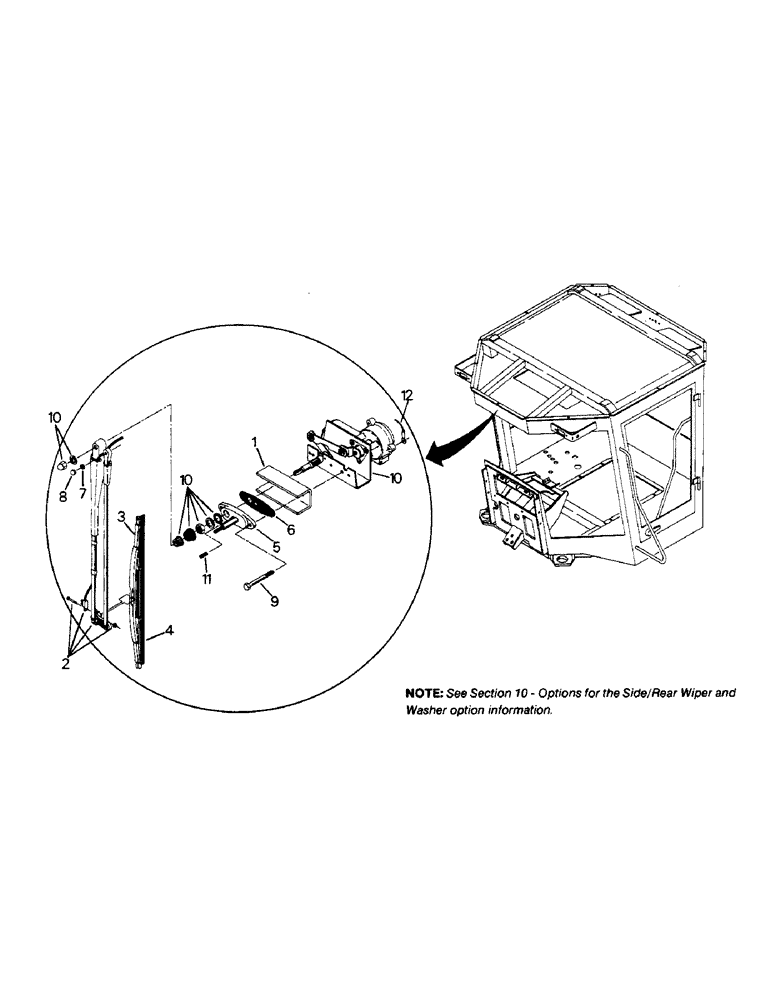

Запчасти Case IH STEIGER (01-46) - FRONT WIPER & MOUNTING (10) - CAB

1

2-2822T1

SPACER

Wiper mounting

1шт.

2

60-1144T1

WIPER ARM

ARM, WIPER ARM - wiper, 17 inch

1шт.

60-1145T91

WIPER BLADE

BLADE, WIPER BLADE ASSEMBLY - wiper, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

FRAME - wiper blade

1шт.

4

2-4194T1

WIPER BLADE

BLADE, WIPER 18 inch

1шт.

60-1436T91

PIVOT ASSY.

PIVOT KIT - wiper blade, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

BODY AND SHAFT ASSEMBLY

1шт.

6

2-4190T1

GASKET

1шт.

7

2-4191T1

WASHER

1шт.

8

2-4192T1

NUT

1шт.

9

185080

CLAMP,Hex, 1/4" - 28 x 2.27", Gr 5

CAPSCREW, 1/4 UNF x 2-1/4 G-5

2шт.

10

DRIVE ASSEMBLY - wiper (See Fig. 01-47)

1шт.

11

20-1317T1

CAP

Washer tube cover (Not used with window washer)

1шт.

12

20-1452T1

ELECTRICAL WIRE

WIRE Motor ground

1шт.
