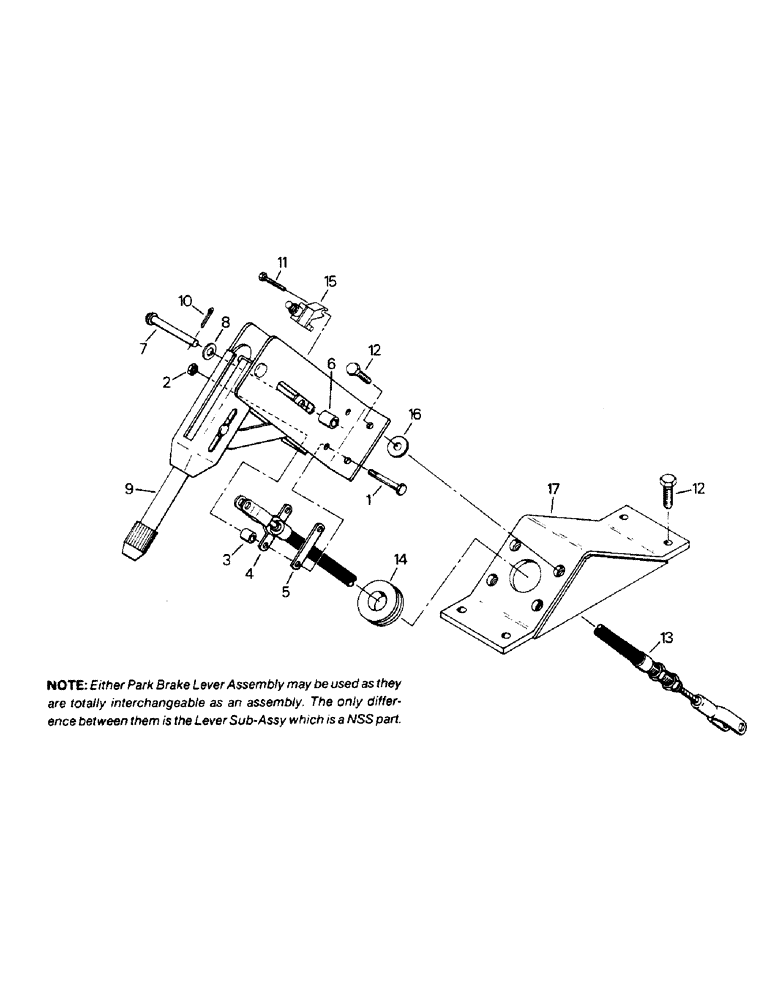

Запчасти Case IH STEIGER (01-45) - PARK BRAKE CONTROLS (10) - CAB

60-2150T92

LEVER

LEVER ASSEMBLY - park brake, Includes: Ref 1 - 10

1шт.

Either Park Brake Lever Assembly may be used as they are totally interchangeable as an assembly. The only difference between them is the Lever Sub-Assembly which is a NSS part.

1шт.

60-5017T91

LEVER ASSY.

Park brake, Includes: Ref 1 - 10

1шт.

Either Park Brake Lever Assembly may be used as they are totally interchangeable as an assembly. The only difference between them is the Lever Sub-Assembly which is a NSS part.

1шт.

1

19-8

BOLT,5/16" - 18 x 1 1/2", Gr 5

CAPSCREW, 5/16 UNC x 1-1/2 G-5

2шт.

2

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

2шт.

3

19-6062

SPACER

Cable mounting 5/16 x 1/2 x .53 thk

2шт.

4

1-8464

FIXING BRACKET

CLAMP - brake cable, inner

1шт.

5

1-8451

FIXING BRACKET

CLAMP - brake cable, outer

1шт.

6

19-6061

SPACER

Cable attaching 5/16 x 1/2 x .725 thk

1шт.

7

19-5664

CLEVIS PIN,5/16" x 2"

5/16 x 1-7/8 inch

1шт.

8

19-6042

WASHER

Flat, 5/16 x 5/8 x 1/16 thk

1шт.

9

NSS

NOT SOLD SEPARAT

LEVER SUB-ASSEMBLY

1шт.

Either Park Brake Lever Assembly may be used as they are totally interchangeable as an assembly. The only difference between them is the Lever Sub-Assembly which is a NSS part.

1шт.

NSS

NOT SOLD SEPARAT

LEVER SUB-ASSEMBLY

1шт.

Either Park Brake Lever Assembly may be used as they are totally interchangeable as an assembly. The only difference between them is the Lever Sub-Assembly which is a NSS part.

1шт.

10

19-238

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

11

19-6216

TAPPING SCREW, no. 8 UNC x 1

1шт.

12

9418918

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

CAPSCREW, 5/16 UNC x 1 G-5

8шт.

13

60-5615T1

CABLE

Park brake

1шт.

14

31-2603

GROMMET

Park brake cable

1шт.

15

20-2316T1

SWITCH

MICRO SWITCH - park brake

1шт.

16

19-5998

WASHER

SPARE PART Flat, 5/16 x 3/4 x 1/8 thk

4шт.

17

60-5013T1

ANCHOR

MOUNT - park brake lever

1шт.
